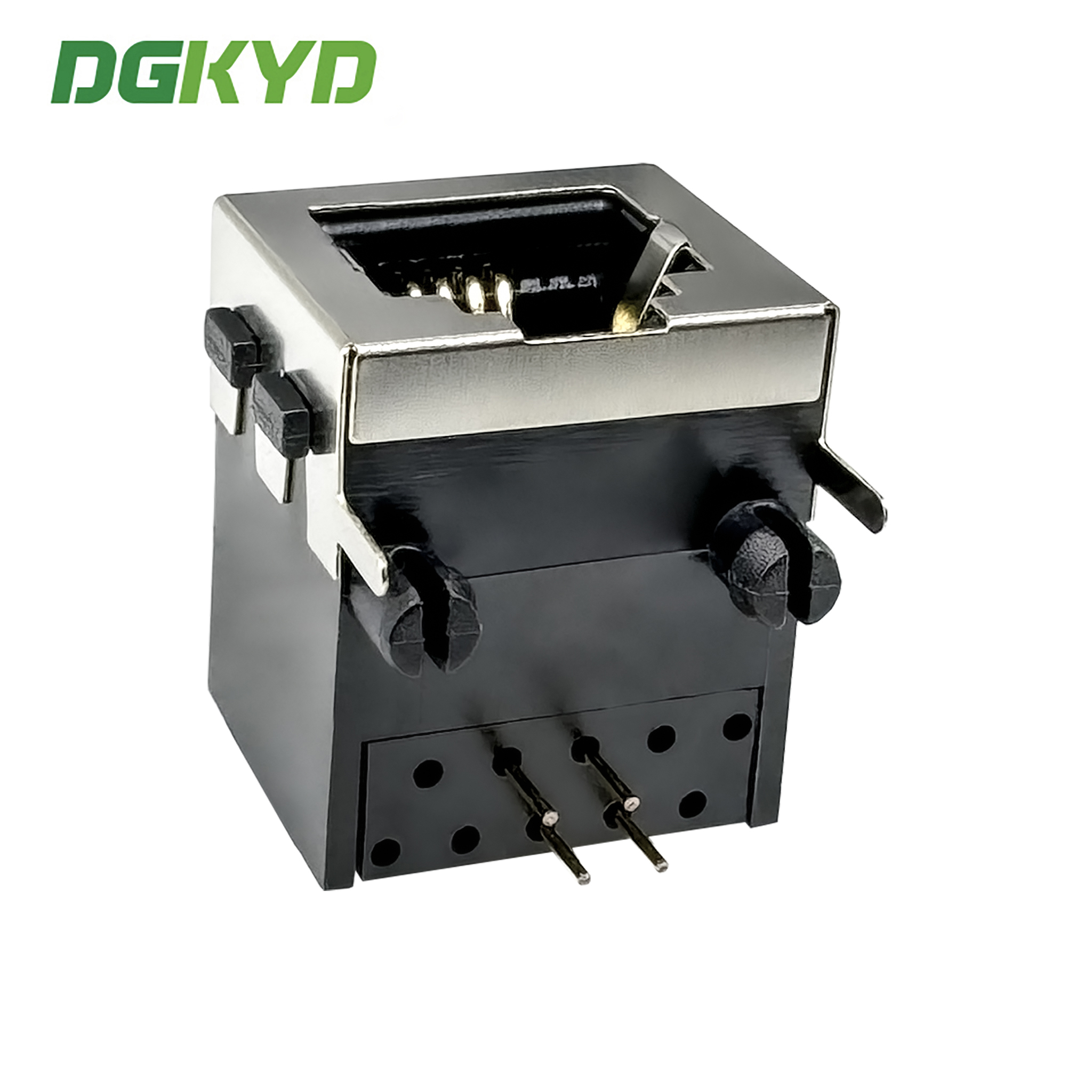

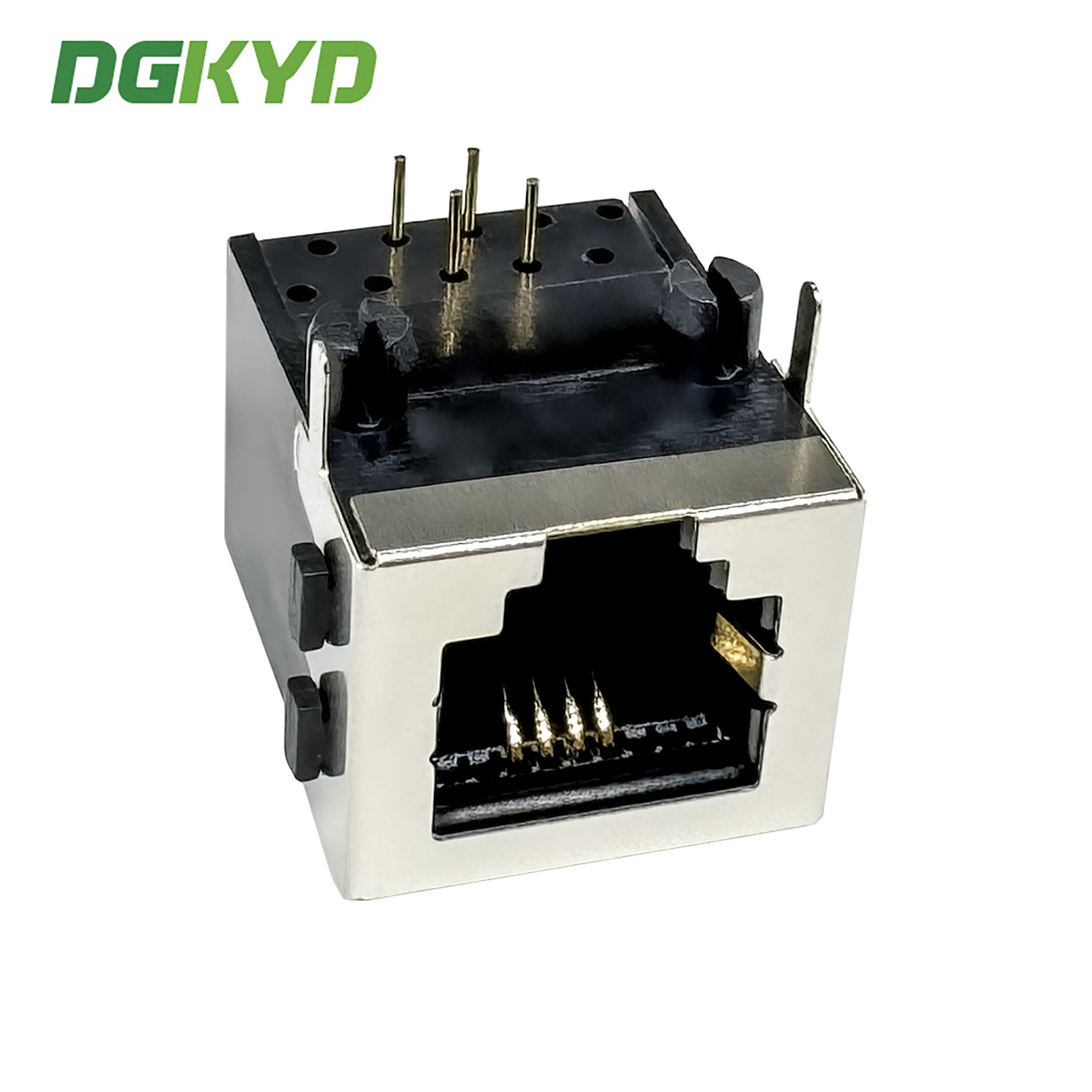

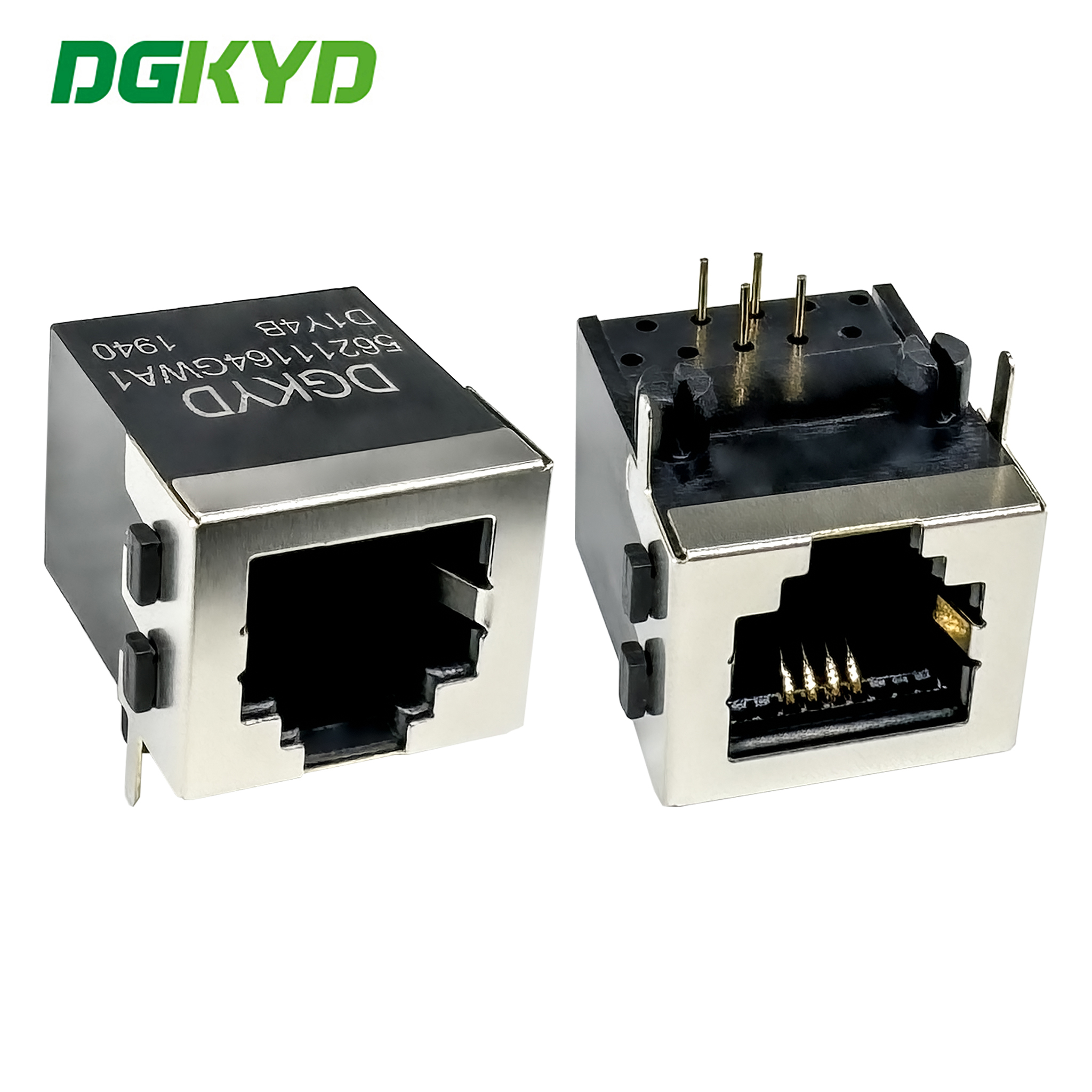

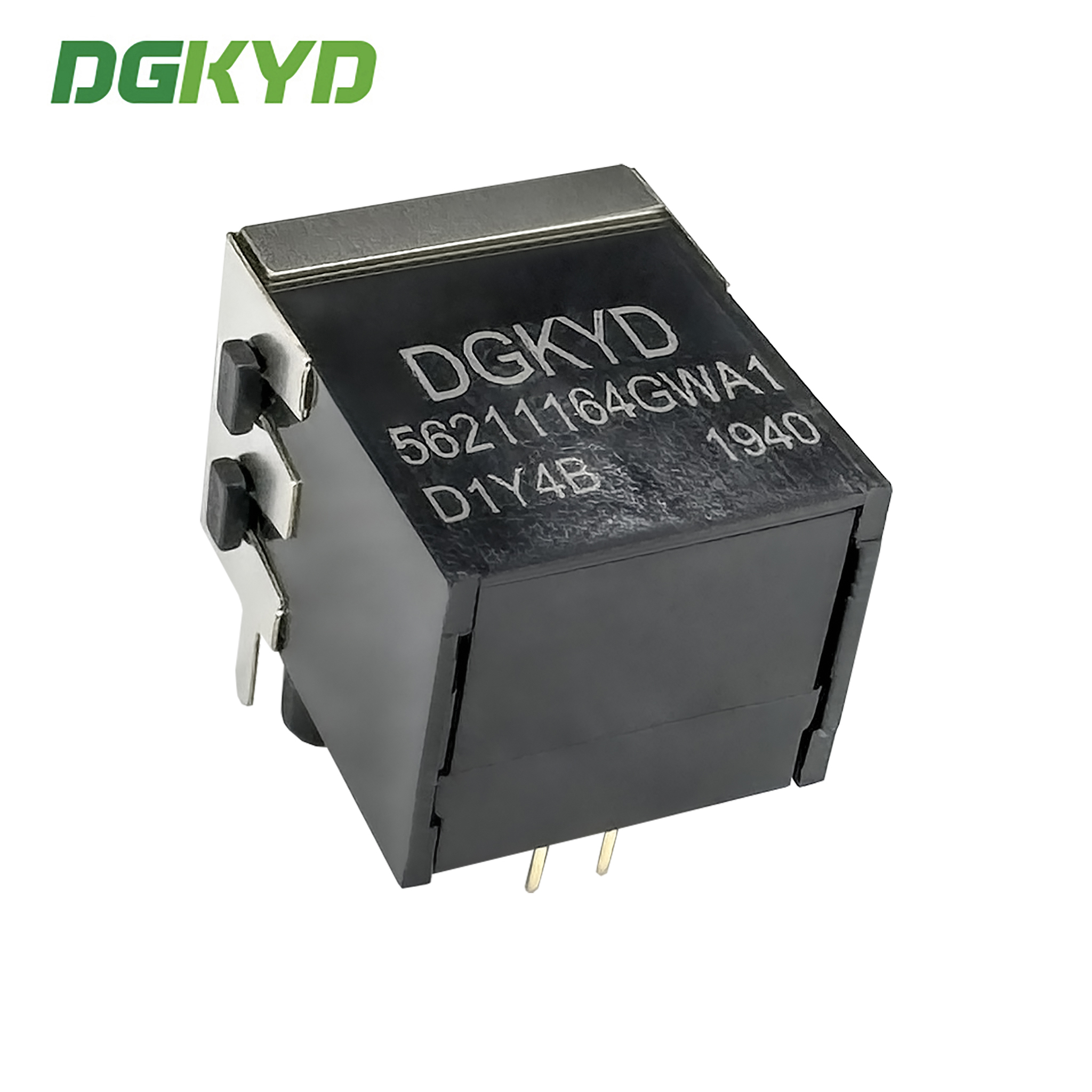

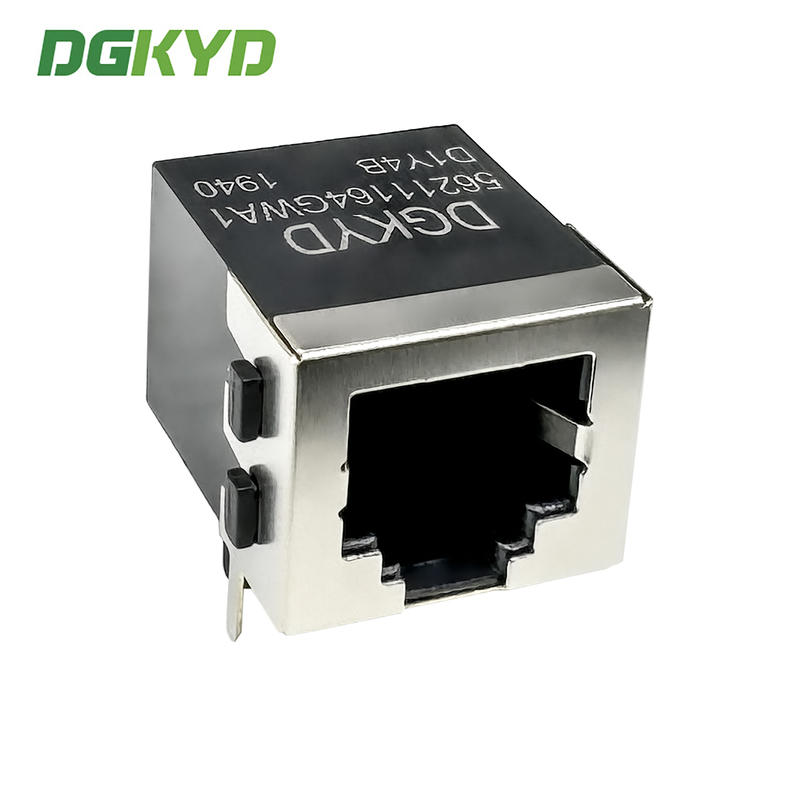

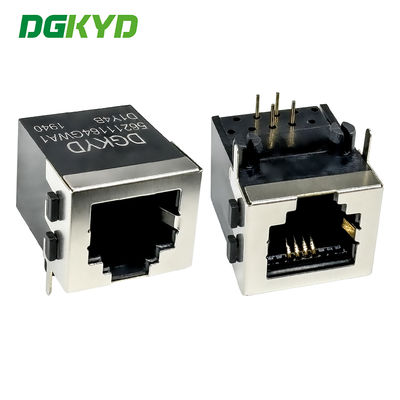

RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B

Số lượng đặt hàng tối thiểu : 1 mảnh Giá bán : Please contact us to get the latest price.
chi tiết đóng gói : Khay trong thùng carton Thời gian giao hàng : 10 ngày
Điều khoản thanh toán : T/T, D/P, D/A, L/C, Western Union, Moneygram Khả năng cung cấp : 100K PC/ngày
Nguồn gốc: Dongguan của Trung Quốc Hàng hiệu: DGKYD
Chứng nhận: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Số mô hình: DGKYD56211164GWA1D1Y4B

Thông tin chi tiết

Tốc độ: MÈO 3/5/6 Cổng: Cổng duy nhất
Khiên: Đúng Máy biến áp: không có máy biến áp
Gắn loại: Loại PCB Chốt cửa: Tab Up
Nhiệt độ hoạt động: -40 ° C ~+85 ° C. Chấm dứt: NHÚNG
Loại giao diện Jack & plug mô -đun: RJ11 không có máy biến áp loại: giắc cắm điện thoại
Màu sắc: Đen
Làm nổi bật:

RJ11 female socket without light strip

,

56 Series network port gold-plated

,

RJ11 shielded interface round needle

Mô tả sản phẩm

RJ11 Half Package Network Port Female Socket
RJ45 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B
Product Specification Document
Our Strengths
  • Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃
Parameters
Part Number DGKYD56211164GWA1D1Y4B Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type Connector-Modular Connector Style Jack
Jack Type RJ11 Connector Type Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter Without Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded Yes Applies To Printed Circuit Board
Performance Speed 10/100/1000 BASE-T/TX Suitable for welding type Reflowsolding(Alternative)
Port Configuration Single Ports Number of Positions 4
Jack Configuration 1X1 Terminals per Port 6
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0
RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 0 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 1 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 2 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 3 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 4 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 5 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 6 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 7 RJ11 half package network port female socket without light strip shielding interface round needle gold-plated 6U DGKYD56211164GWA1D1Y4B 8
Product Features
  • RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT,PA46,PA9T, LCP)
  • The electrical properties meet industry standards, appearance and mechanical properties meet manufacturing standards, and environmental protection standards
FAQ
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
