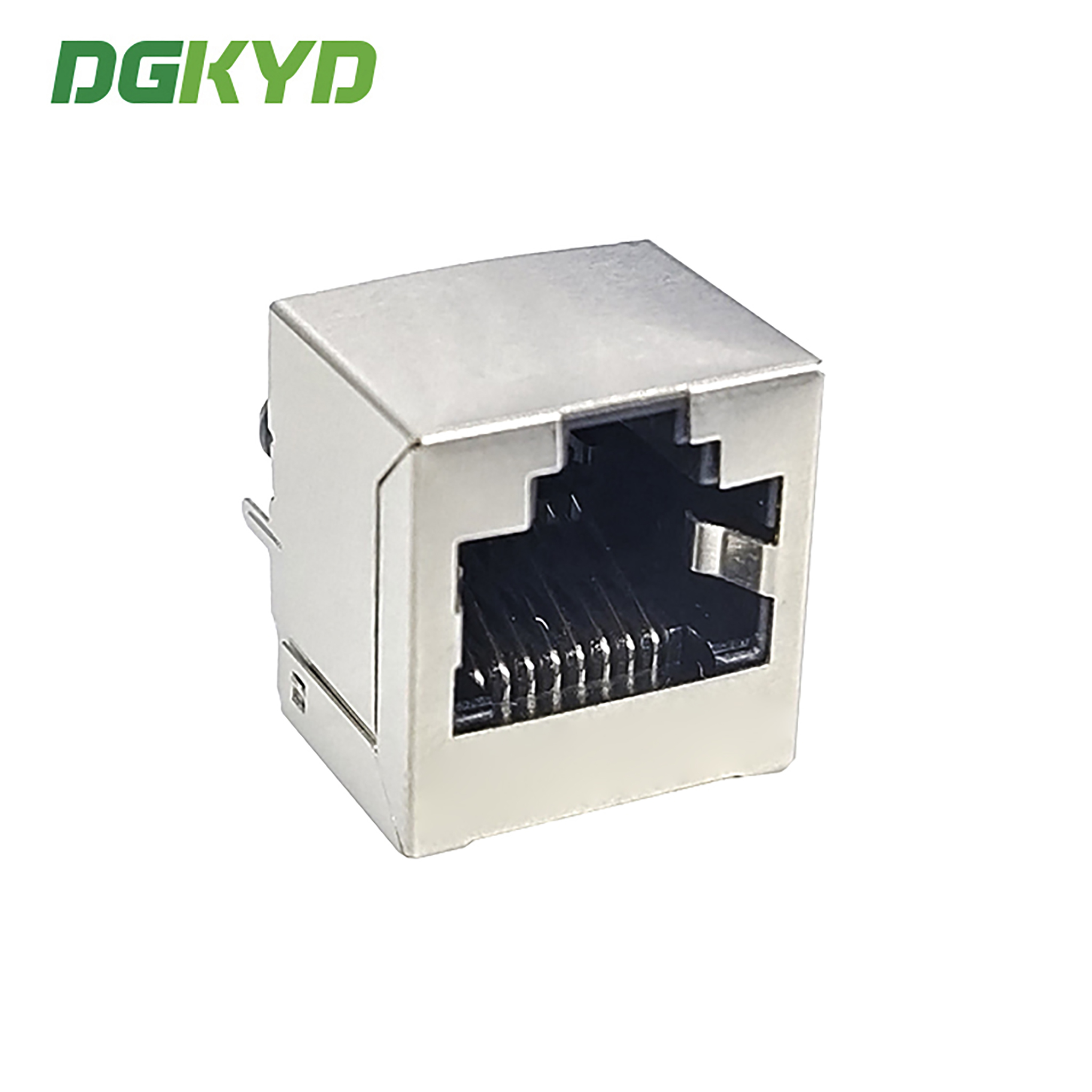

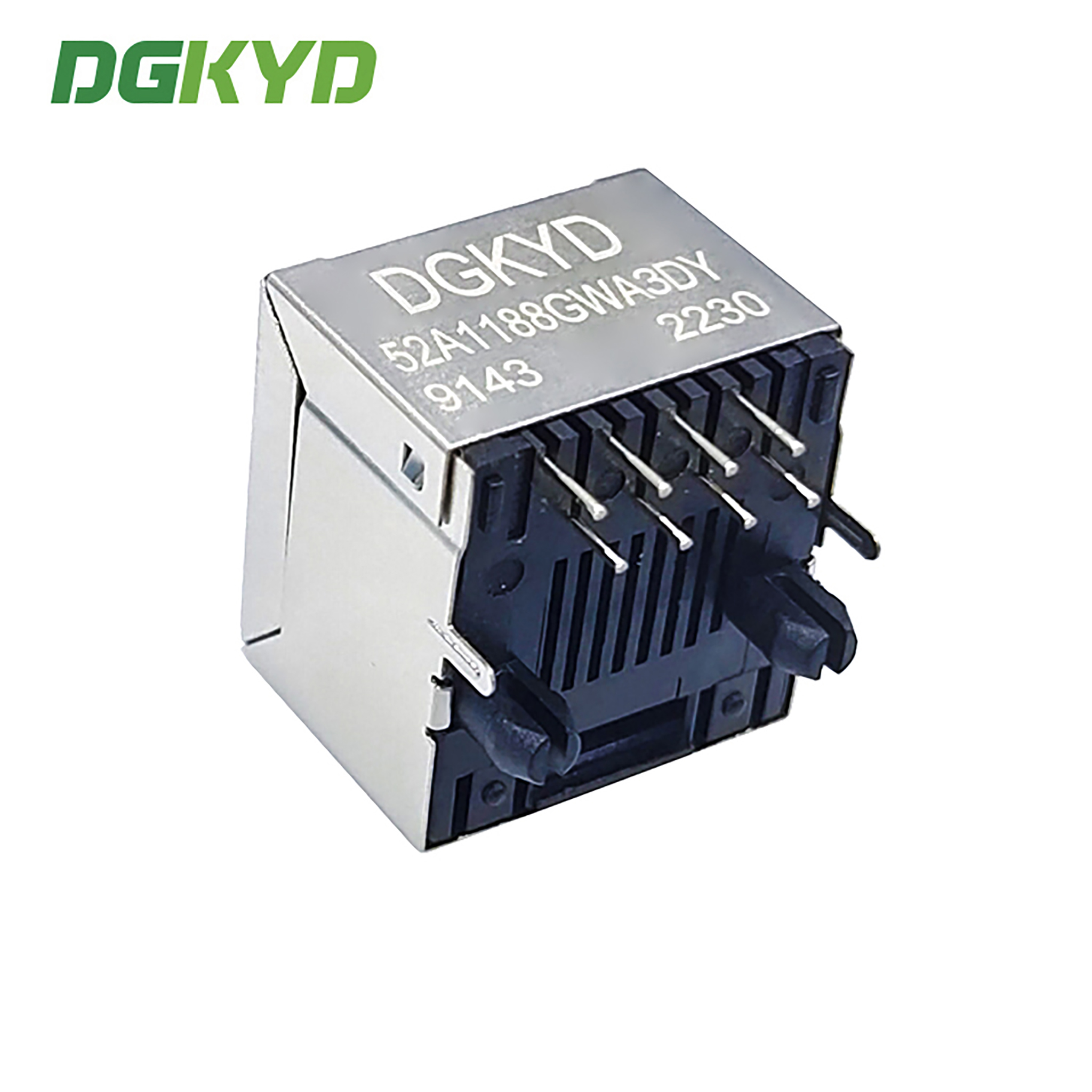

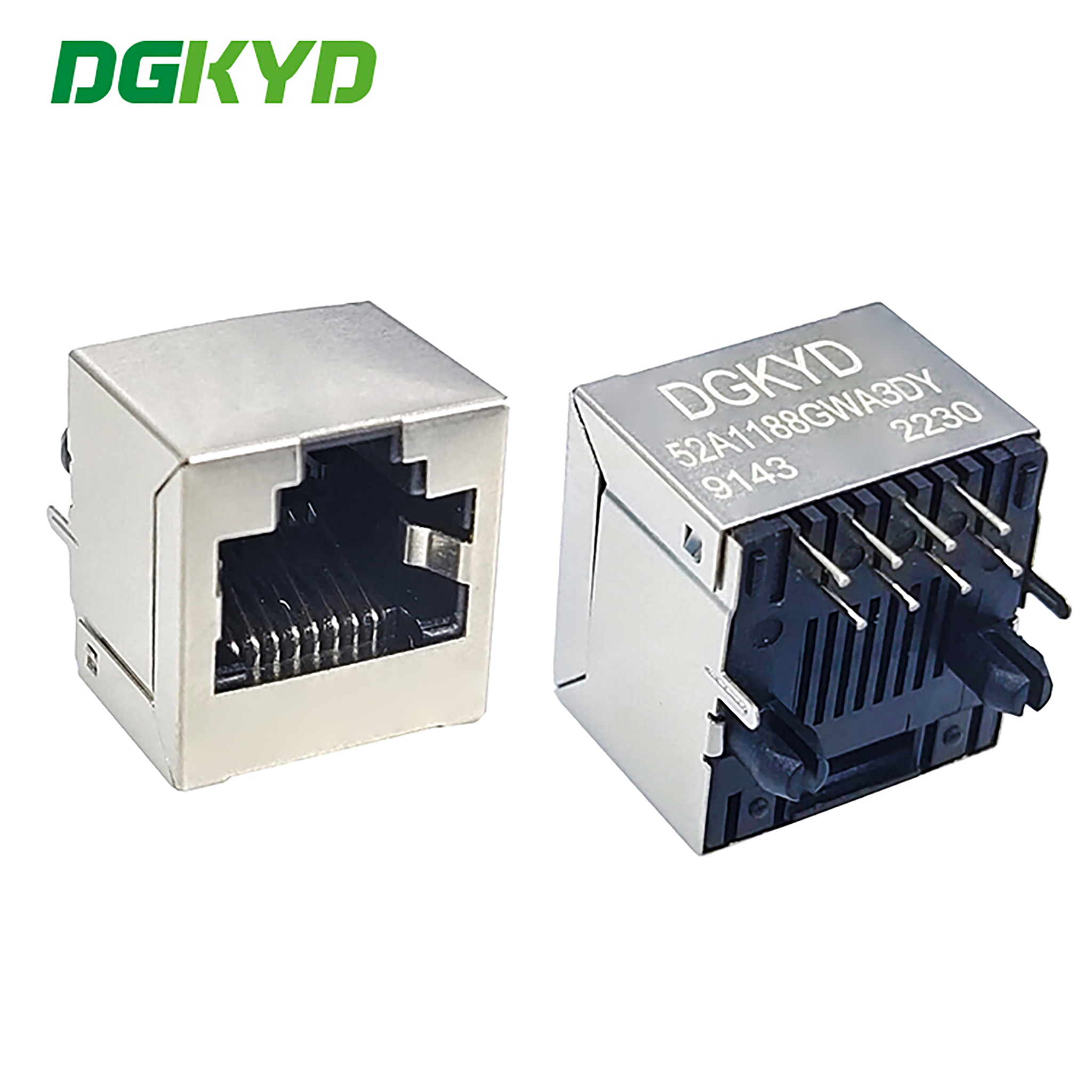

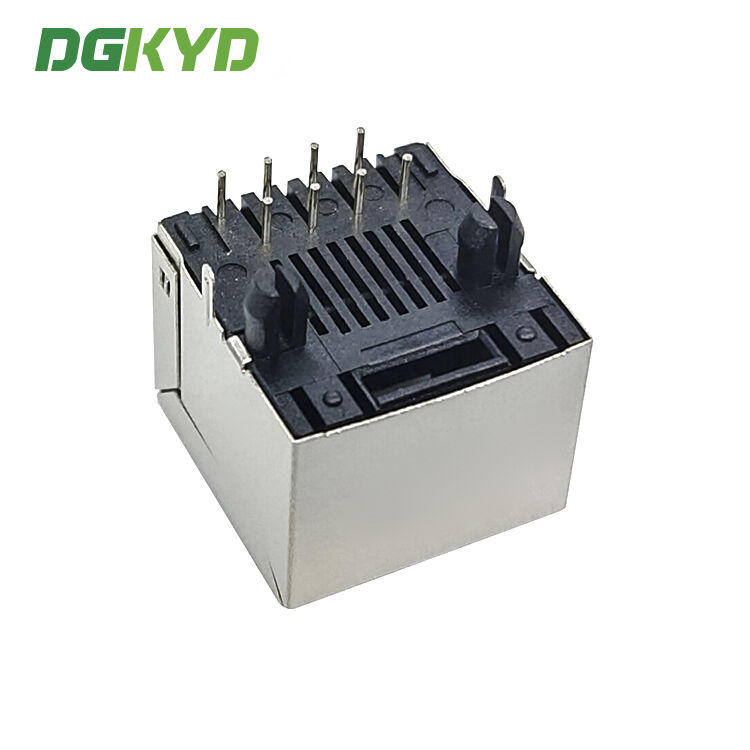

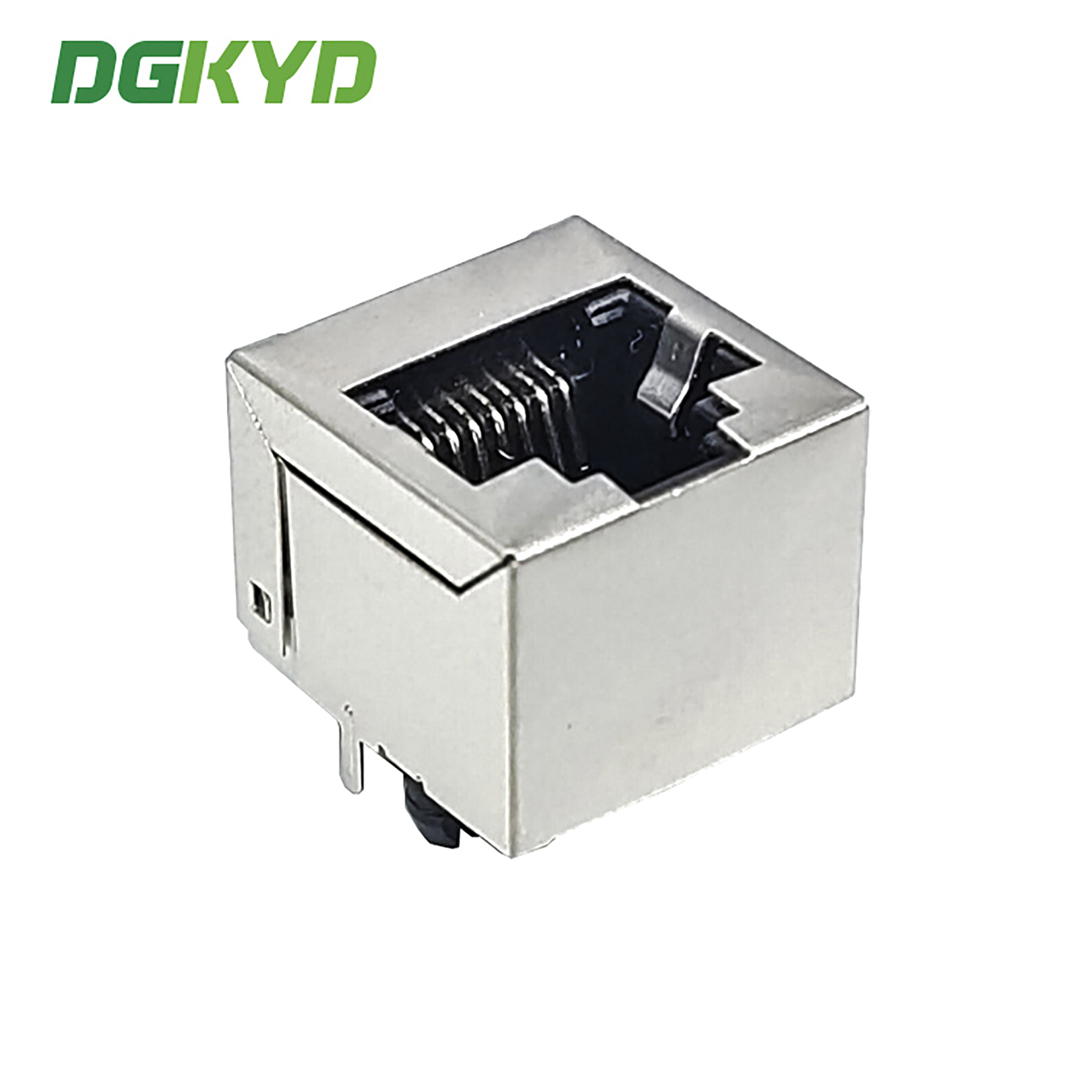

DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket

Số lượng đặt hàng tối thiểu :	đàm phán	Giá bán :	Please contact us to get the latest price.
chi tiết đóng gói :	4800Khay trong thùng carton	Thời gian giao hàng :	10 ngày
Điều khoản thanh toán :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Khả năng cung cấp :	100K PC/ngày

Nguồn gốc:	Dongguan của Trung Quốc	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Số mô hình:	DGKYD52A1188GWA3DY9143

Thông tin chi tiết
Loại sản phẩm:	RJ45	Phương pháp đóng gói:	Gói nội tuyến duy nhất
Phong cách gắn kết PCB:	NHÚNG	Hình dạng:	hình chữ nhật
Khiên:	Đúng	Số lượng chân:	8
Số lượng lõi:	8	Kích thước (mm):	15,9 * 12,7 * 16,6mm
Mạ vàng trên ghim tiếp xúc:	1U	Nhiệt độ hoạt động:	- 40 ℃ ~ 85 ℃
Nhiệt độ bảo quản:	- 40 ℃ ~ 85 ℃
Làm nổi bật:	52A RJ45 8P8C connector , 180 degree socket RJ45 connector , 52 series in-line RJ45 connector

Mô tả sản phẩm

DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket

Technical Specifications

Part Number	DGKYD52A1188GWA3DY9143
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	Without LED
LED Color	No
Panel Stops	With Panel Stops
Shielded	With metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	8
Jack Configuration	1X1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 1u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PA46 Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Company Profile DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket 2

Factory Show DGKYD52A1188GWA3DY9143 52A RJ45 8P8C Connector In Line 180 Degree Socket 3

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
