1-Port RJ45 Connector 10P PBT with Filter and Shielding

Số lượng đặt hàng tối thiểu : 1 Giá bán : $0.60-1.80
Nguồn gốc: Quảng Đông, Trung Quốc Hàng hiệu: DGKYD
Số mô hình: DGKYD111Q066HWA1D

Thông tin chi tiết

Loại kết nối: RJ45 Che chắn: Đúng
Số lượng cổng: 1 Liên hệ Kết thúc: 6U/15U/30U
Định hướng: bên Số lượng hàng: 1
Ghim: 10P Vật liệu liên hệ: Phốt pho bằng đồng
Vật liệu nhà ở: Polyester PBT Lọc: có bộ lọc
Tốc độ hiệu suất: 10/100/1000 cơ sở-T Cấu hình cổng: đơn
Thiết bị đầu cuối trên mỗi cổng: 8 Định hướng gắn PCB: Mục nhập bên (góc phải)
Liên hệ giao phối mạ: Vàng 6u/15u/30u/50u
Làm nổi bật:

1-port RJ45 connector with filter

,

shielded RJ45 single port connector

,

PBT RJ45 connector with shielding

Mô tả sản phẩm

High-Speed 1x1 Single-Port Gigabit Network Connector

10PIN PBT Material Integrated Filtering Shielding Non-Lit for RJ45

Product Specifications
Part Number DGKYD111Q066HWA1D Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China Certification ISO16949/CE/UL/FCC/Reach/RoHS
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch Down
Filter With Filter LED Option Without LED
Shielded Yes Applies To Printed Circuit Board
Performance Speed 10/100/1000 BASE-T Grounding Options Panel Ground and PCB Ground
Technical Details
Port Configuration Single Number of Positions 10
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
UL Flammability Rating UL 94V-0
Product Images

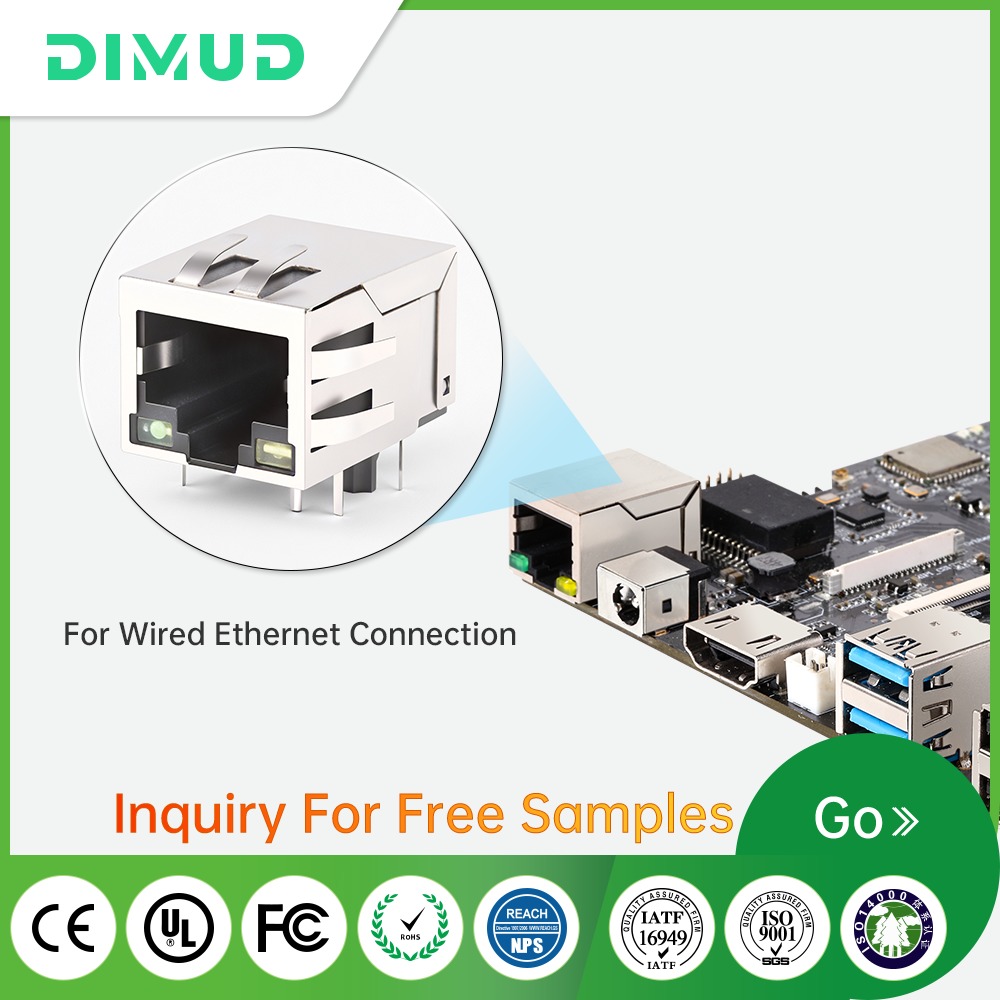

1-Port RJ45 Connector 10P PBT with Filter and Shielding 0

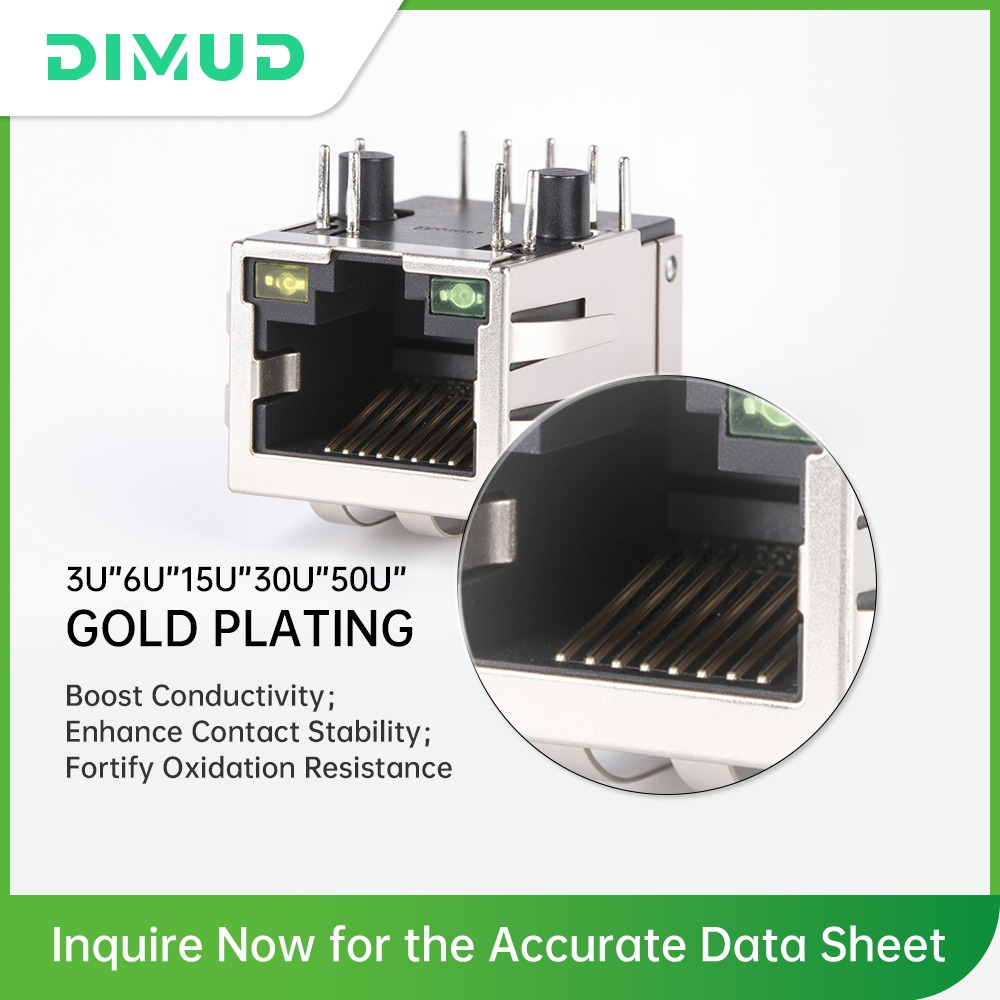

1-Port RJ45 Connector 10P PBT with Filter and Shielding 1

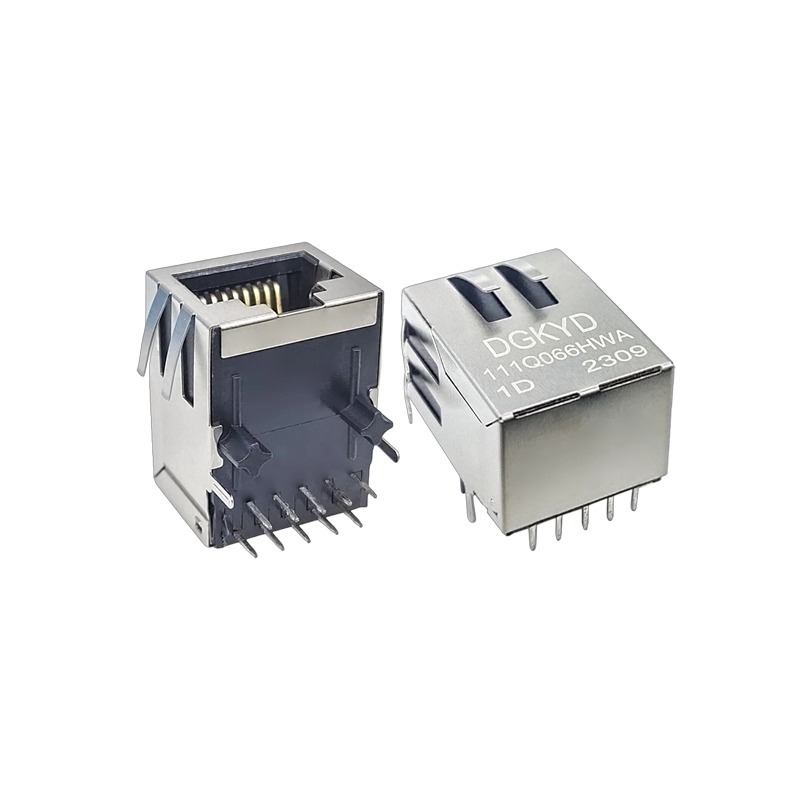

1-Port RJ45 Connector 10P PBT with Filter and Shielding 2

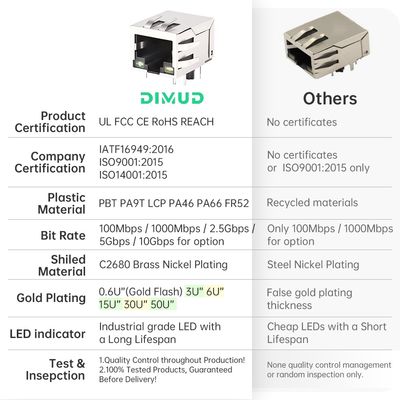

1-Port RJ45 Connector 10P PBT with Filter and Shielding 3
Key Features
  • High-Speed Performance: Supports 10/100/1000 BASE-T networks
  • Robust Construction: PBT polyester housing with copper alloy shielding
  • Integrated Filtering: Built-in EMI/RFI protection
  • Reliable Contacts: Gold-plated phosphor bronze contacts
  • Secure Mounting: Through-hole PCB mounting with board lock options
  • Safety Certified: UL 94V-0 flammability rating
