| Số lượng đặt hàng tối thiểu : | 1 mảnh | Giá bán : | Please contact us to get the latest price. |
|---|---|---|---|
| chi tiết đóng gói : | Khay trong thùng carton | Thời gian giao hàng : | 10 ngày |
| Điều khoản thanh toán : | T/T, D/P, D/A, L/C, Western Union, Moneygram | Khả năng cung cấp : | 100K PC/ngày |
| Nguồn gốc: | Dongguan của Trung Quốc | Hàng hiệu: | DGKYD |
|---|---|---|---|
| Chứng nhận: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Số mô hình: | KRJ-109NL |
|
Thông tin chi tiết |
|||
| Ứng dụng: | PCB | Kiểu: | RJ45 |
|---|---|---|---|
| Giới tính: | Nữ giới | Vật liệu nhà ở: | PBT ĐEN |
| Liên hệ khu vực giao phối mạ: | Mạ VÀNG 6u'' | tùy chọn đèn led: | Xanh/Vàng |
| Chốt cửa: | Tab xuống | Số lượng cổng: | 8 |
| Nhiệt độ hoạt động: | - 40 ℃ ~ 85 ℃ | Nhiệt độ bảo quản: | -40 ° C ~+85 ° C. |
| Mạ vàng trên ghim tiếp xúc: | 6U | Khiên: | Thau |
| Làm nổi bật: | RJ45 connector with transformer,industrial Ethernet switch socket,100Mbps network filter interface |
||
Mô tả sản phẩm

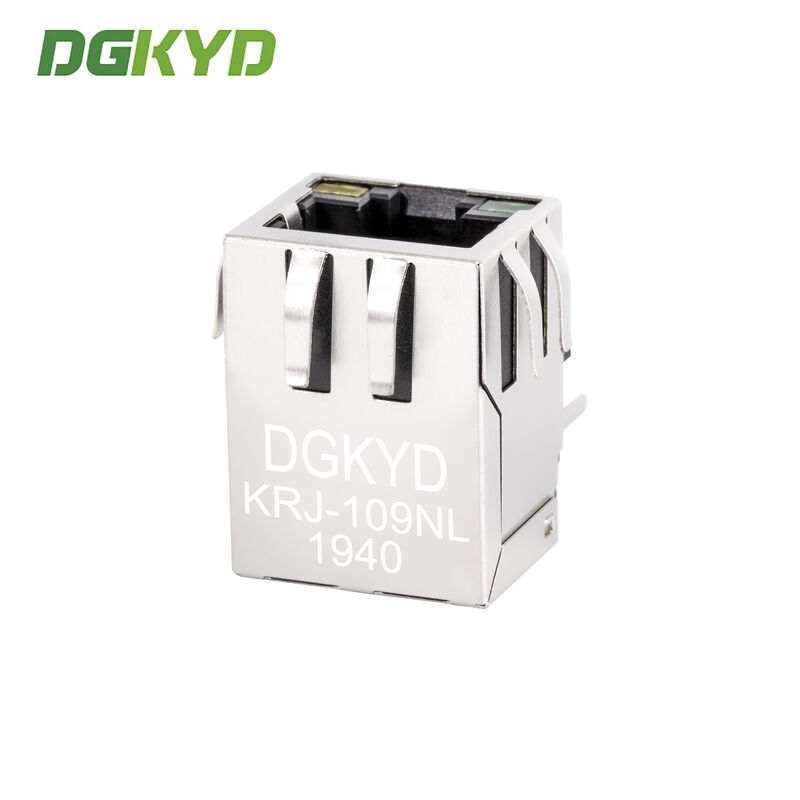

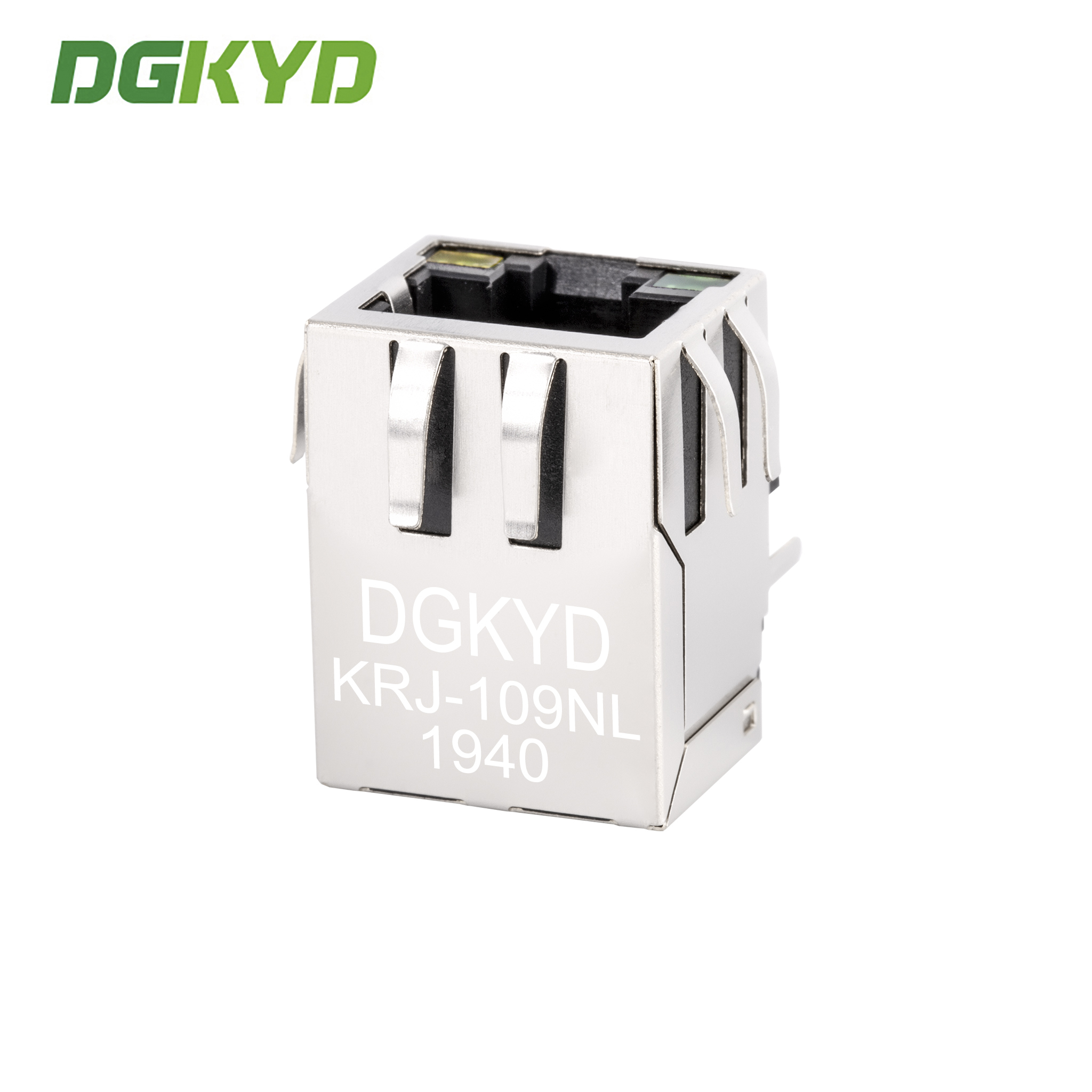

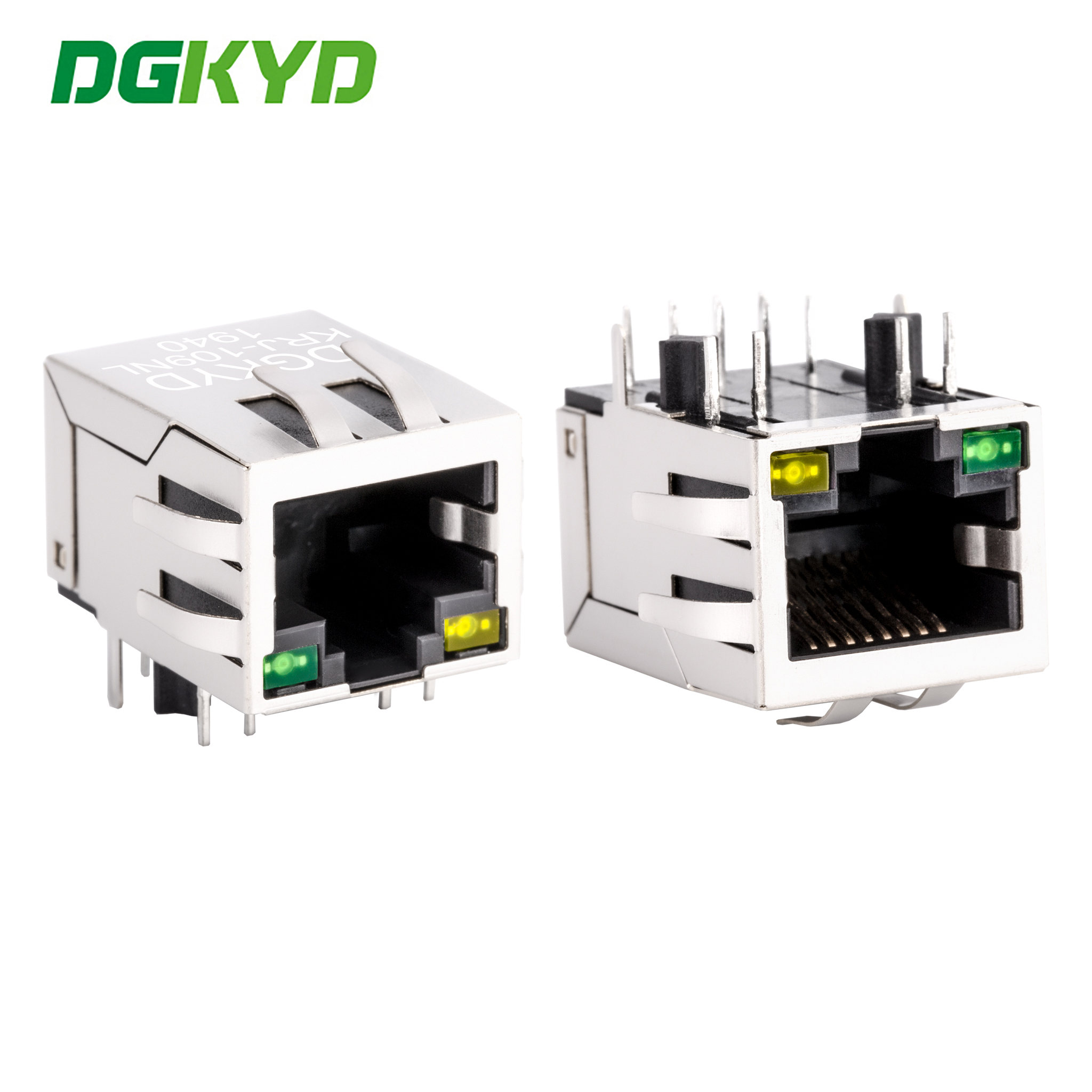

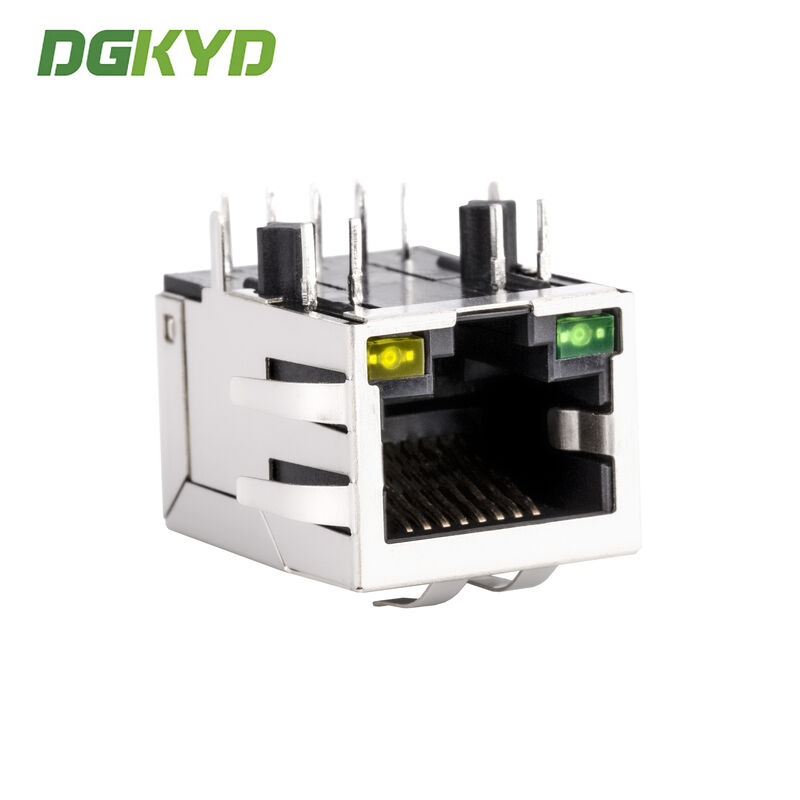

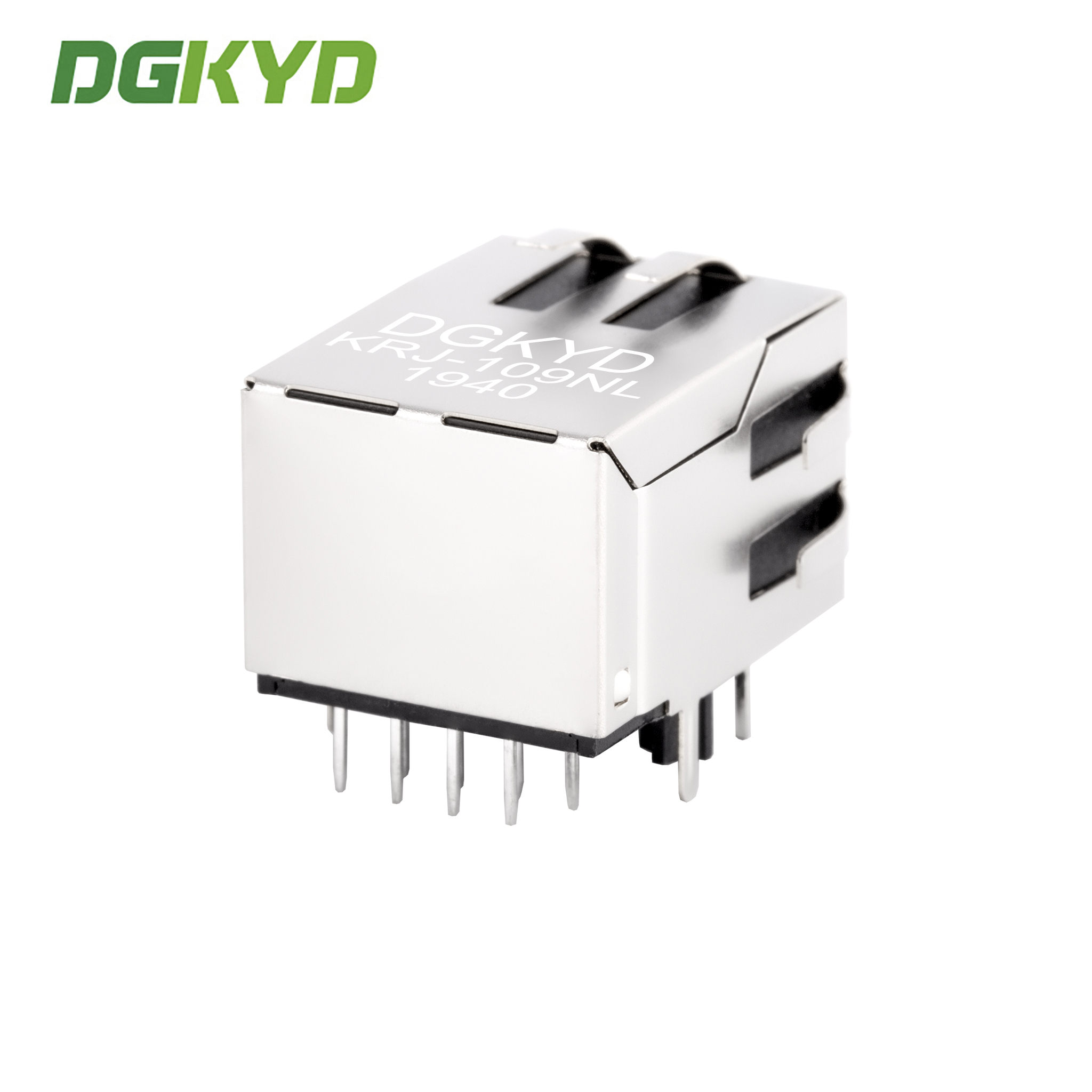

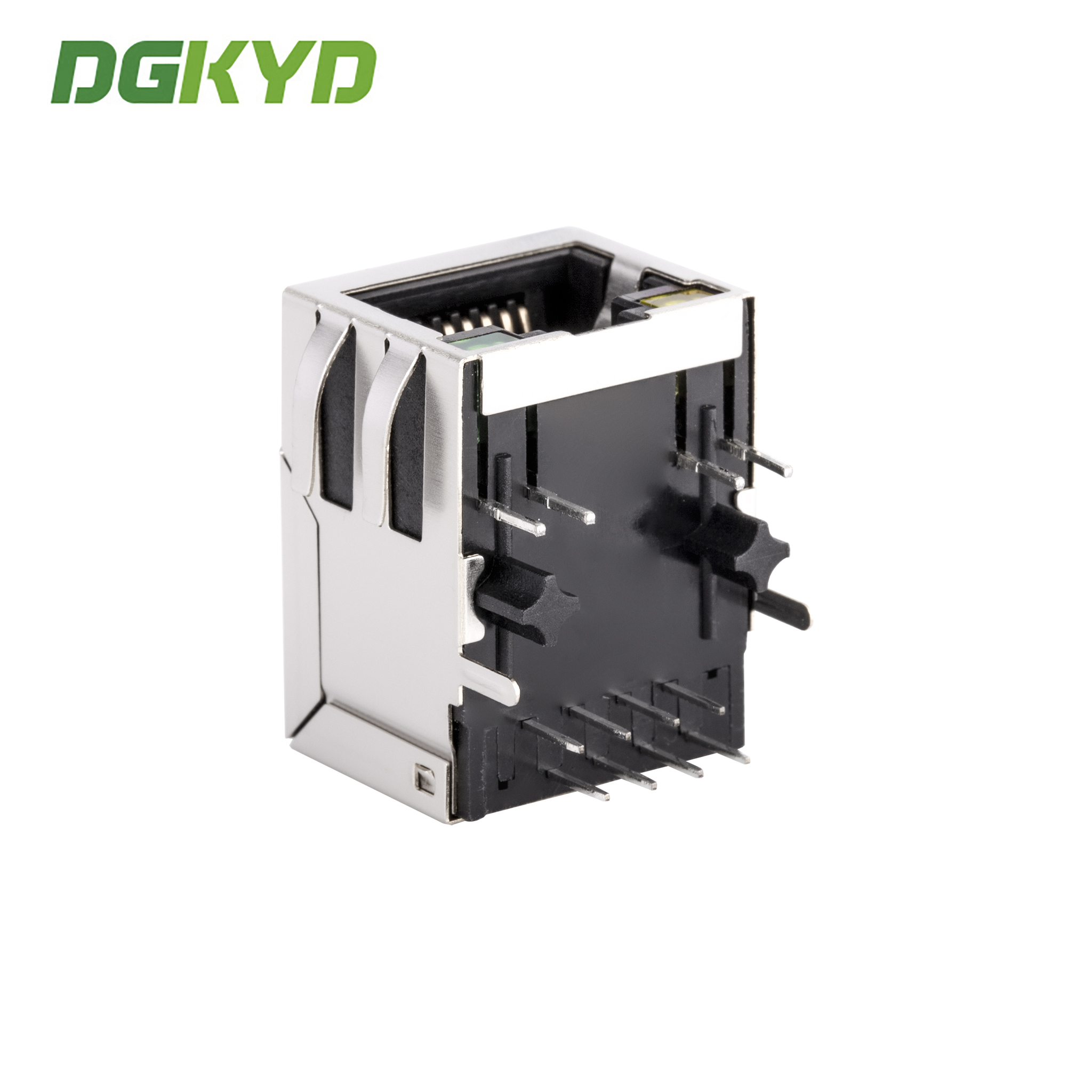

RJ45 Connector 100Mbps Filter Network Socket Industrial Ethernet Switch Interface KRJ-109NL
RJ45 connector 100Mbps filter network socket industrial Ethernet switch interface KRJ-109NL
Download Product Datasheet (PDF)
Technical Specifications
Specification
Details
Part Number
KRJ-109NL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-DOWN
Filter
With Filter
LED Option
With LED
LED Color
Green/Yellow
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Ports
Number of Positions
8
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0
Product Images
Manufacturer Information
Product Features
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
