DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount

Số lượng đặt hàng tối thiểu : 1 Giá bán : $0.47-0.78
Nguồn gốc: Quảng Đông, Trung Quốc Số mô hình: KRJ-H001WDENL

Thông tin chi tiết

Kiểu: RJ45 Bao bì: NHÚNG
Giới tính: Nữ giới Vật liệu nhà ở: PA66 ĐEN
tùy chọn đèn led: không có đèn led Chốt cửa: Hướng lên
Số lượng cổng: 1 Số lượng liên hệ: 8
Góc gắn PCB: Lối vào bên phong cách gắn kết: Qua lỗ
Tốc độ: mèo5 Tốc độ hiệu suất: 10/100 Cơ sở-T
Đã che chắn: Đúng Vật liệu lá chắn: Hợp kim đồng mạ sẵn Niken
Tiếp xúc vật liệu mạ: Vàng 6u/15u/30u/50u
Làm nổi bật:

shielded RJ45 single port connector

,

side entry PCB mount RJ45

,

100M RJ45 connector with warranty

Mô tả sản phẩm

Single-Port 100M RJ45 Network Port Socket Connector Transformer Shielded Non-LED Ethernet Connectors
Product Specifications
Part Number KRJ-H001WDENL
Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China
Certification ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch Up
Filter With Filter
LED Option Without LED
Shielded Yes
Applies To Printed Circuit Board
Performance Speed 10/100 BASE-T
Grounding Options Panel Ground and PCB Ground
Port Configuration Single
Number of Positions 8
Jack Configuration 1 x 1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PA66
Housing Color Black
UL Flammability Rating UL 94V-0
Key Features
  • Single-port RJ45 connector with transformer for 100M Ethernet networks
  • Shielded design for enhanced EMI protection
  • Non-LED version for applications where indicator lights aren't required
  • Through-hole PCB mounting with right-angle orientation
  • High-quality gold-plated contacts for reliable connections
  • Compliant with multiple international certifications including CE, UL, and RoHS
Product Images

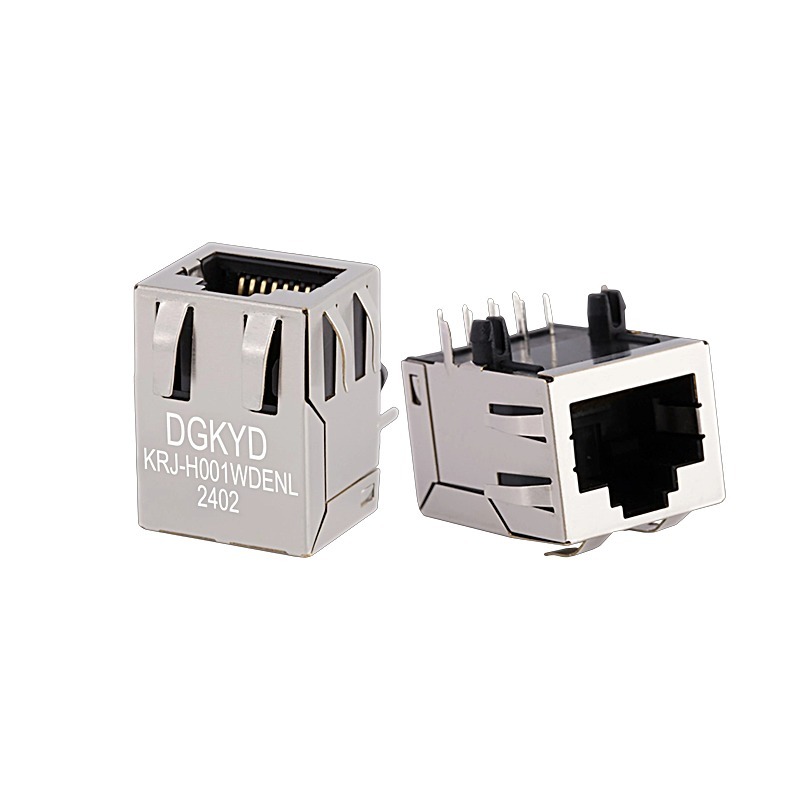

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount 0

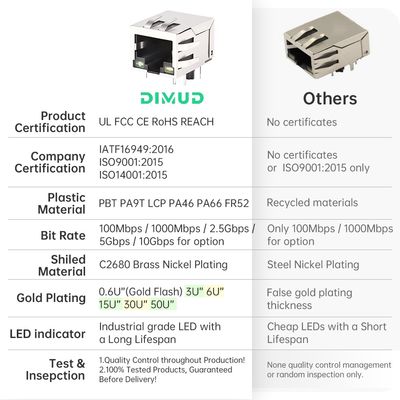

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount 1

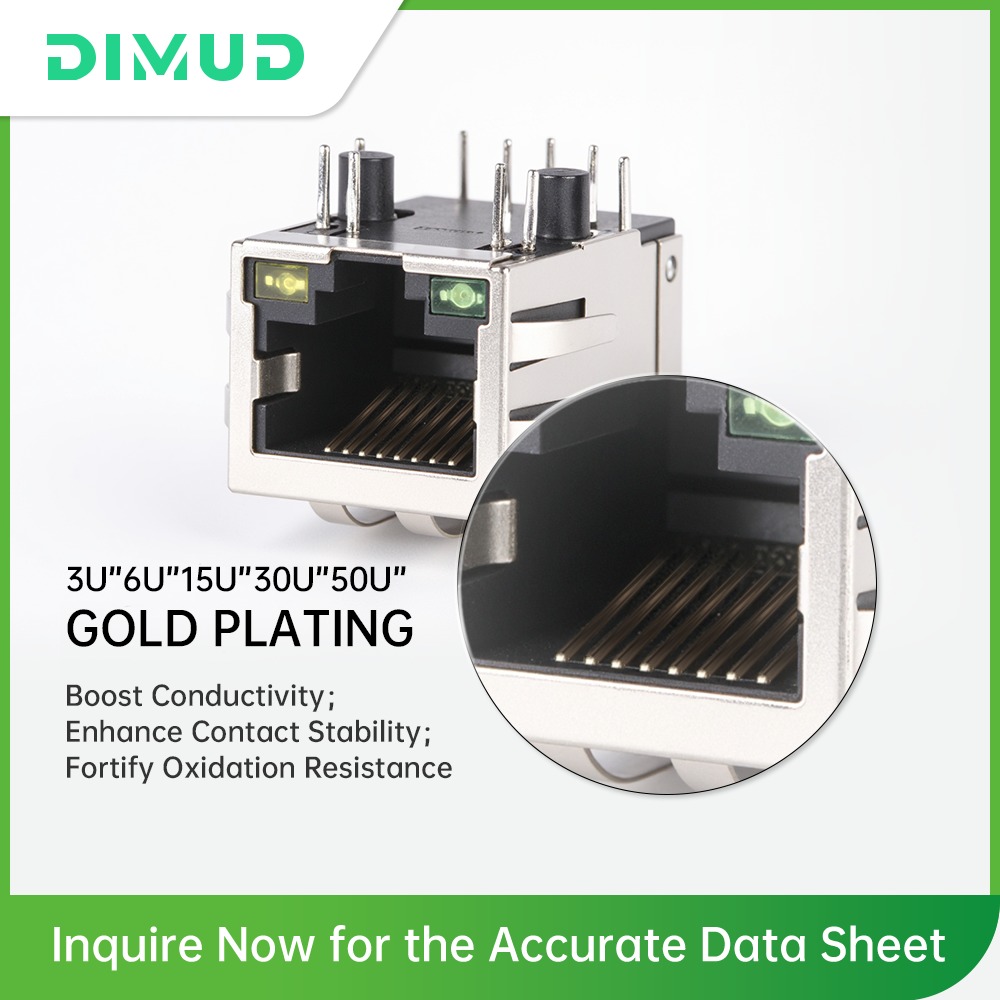

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount 2

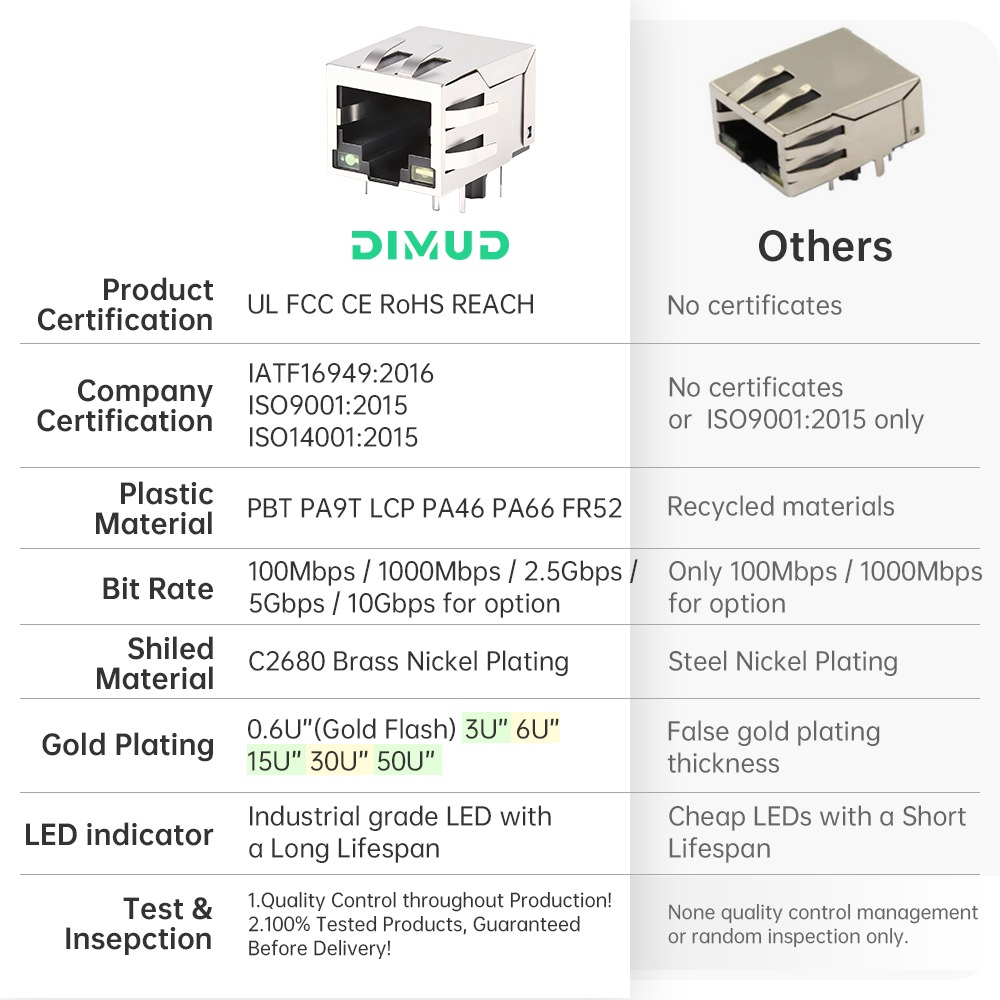

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount 3
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount 4
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount 5
