Shielded Cat6 RJ45 Female Jack 6u Gold Plating Side Entry

Số lượng đặt hàng tối thiểu : 1 Giá bán : $1-1.60
Nguồn gốc: Quảng Đông, Trung Quốc Hàng hiệu: DGKYD
Số mô hình: KRJ-300CNL

Thông tin chi tiết

Kiểu: RJ45 Giới tính: Nữ giới
Mạ vàng: 6U/15U/30U/50U cho tùy chọn Vật liệu nhà ở: Polyester PBT
Bộ lọc bên trong: Đúng kiểu chốt: Tiêu chuẩn
Chốt cửa: Hướng lên Lọc: có bộ lọc
tùy chọn đèn led: không có đèn led Đã che chắn: Đúng
Tốc độ hiệu suất: 1000 cơ sở-t Cấu hình cổng: đơn
Số vị trí: 10 Thiết bị đầu cuối trên mỗi cổng: 8
Vật liệu lá chắn: Hợp kim đồng mạ sẵn Niken
Làm nổi bật:

Shielded Cat6 RJ45 female jack

,

6u gold plating RJ45 connector

,

side entry RJ45 single port

Mô tả sản phẩm

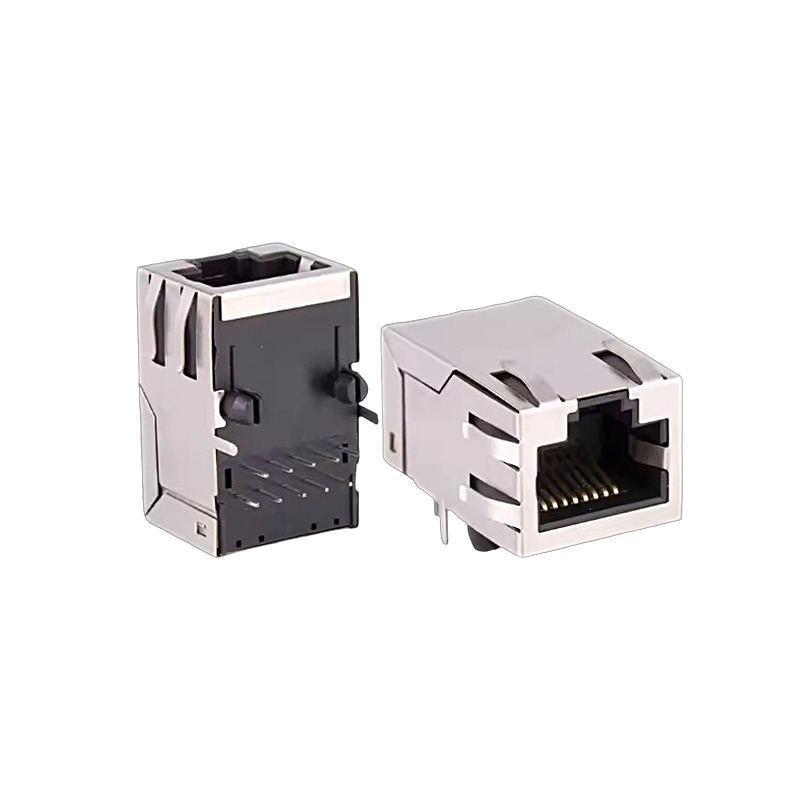

Shielded Single Port Cat6 RJ45 Ethernet Connector - Side Entry Female Jack with LED & Internal Magnetics Transformer
High-performance shielded RJ45 connector designed for Cat6 Ethernet applications, featuring side entry configuration, LED indicator, and integrated magnetics transformer.
Product Specifications
Part Number KRJ-300CNL
Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China
Certification CE /UL/FCC/Reach/RoHS /ISO16949
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch Up
Filter With Filter
LED Option Without LED
LED Color N/A
Panel Stops Without Panel Stops
Shielded Yes
Applies To Printed Circuit Board
Performance Speed 1000 BASE-T
Grounding Options Panel Ground and PCB Ground
Port Configuration Single
Number of Positions 10
Jack Configuration 1 x 1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0
Product Images
