RJ45 Female Connector 180-Degree Vertical with 100Mbps Filter

Số lượng đặt hàng tối thiểu : 1
Nguồn gốc: Quảng Đông, Trung Quốc Hàng hiệu: DGKYD
Số mô hình: DGKYD511B084AB1A8D

Thông tin chi tiết

Loại kết nối: RJ45 Giới tính: Nữ giới
Màu led: vàng/xanh lá cây Mạ: Vàng mạ 6U/15U/30U/50U
Vật liệu nhà ở: Polyester PBT Lọc: có bộ lọc
kiểu chốt: Tiêu chuẩn Chốt cửa: Hướng lên
Tốc độ hiệu suất: 10/100/1000/10G cơ sở-t Cấu hình cổng: đơn
Số vị trí: 8 Thiết bị đầu cuối trên mỗi cổng: 8
Vật liệu lá chắn: Hợp kim đồng mạ sẵn Niken Định hướng gắn PCB: Mục nhập bên (góc phải)
Liên hệ vật liệu cơ bản: Phốt pho bằng đồng
Làm nổi bật:

RJ45 female connector 180-degree vertical

,

RJ45 connector with 100Mbps filter

,

single port RJ45 vertical connector

Mô tả sản phẩm

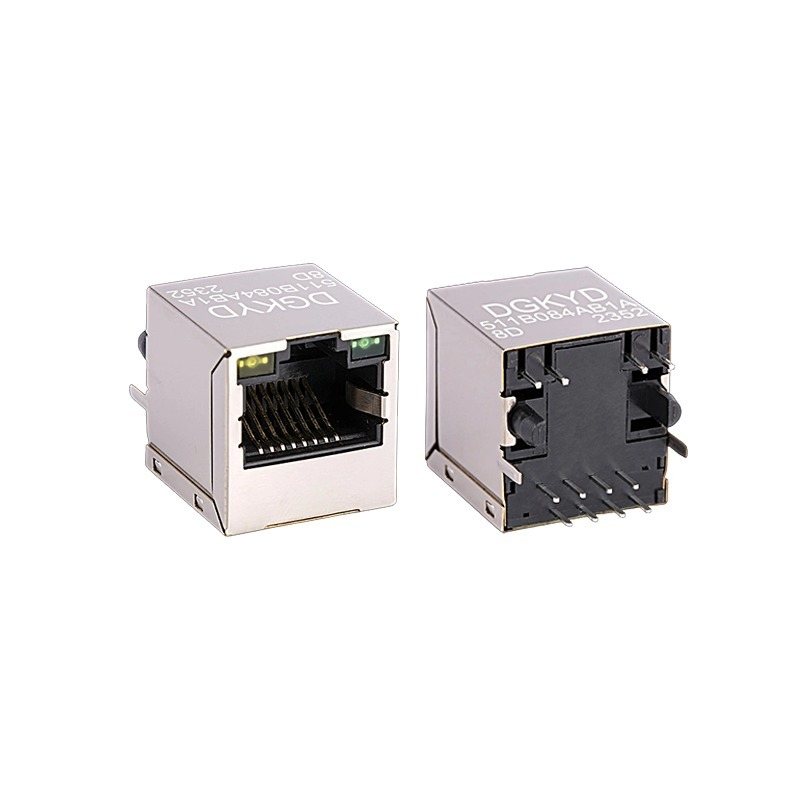

180-Degree Vertical RJ45 Ethernet Connector Jack-Up Orientation with 100Mbps Integrated Filter
Product Specifications
Part Number DGKYD511B084AB1A8D
Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China
Certification IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Connector Assembly
Latch Style Standard
Latch Up
Filter With Filter
LED Option With LED
LED Color Yellow/Green
Panel Stops Without Panel Stops
Shielded Yes
Applies To Printed Circuit Board
Performance Speed 10/100/1000/10G BASE-T
Grounding Options Panel Ground and PCB Ground
Port Configuration Single
Number of Positions 8
Jack Configuration 1 x 1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0
Key Features
  • 180-degree vertical jack-up orientation for space-saving PCB mounting
  • Integrated 100Mbps filter for enhanced signal integrity
  • Supports high-speed performance up to 10G BASE-T
  • Dual-color LED indicators (Yellow/Green) for status monitoring
  • Shielded design with copper alloy for EMI protection
  • Multiple grounding options for flexible installation

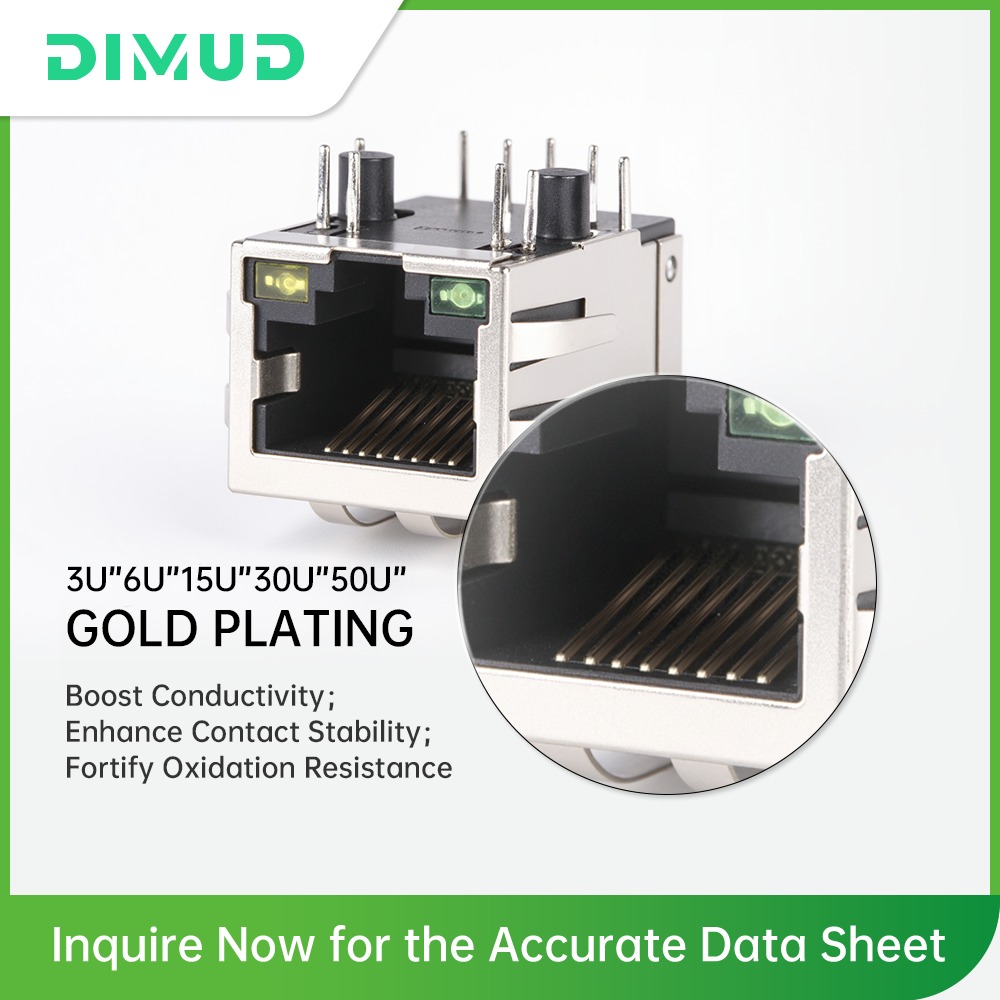

  • High-quality gold-plated contacts for reliable connections
  • UL 94V-0 rated flame-retardant housing
Product Images
