DGKYD RJ45 Connector 12 Pin 6u Gold Plating Shielded PCB Mount

Số lượng đặt hàng tối thiểu : 1
Nguồn gốc: Quảng Đông, Trung Quốc Số mô hình: DGKYD411Q016DB3A1D

Thông tin chi tiết

Loại kết nối: RJ45 Giới tính: Nữ giới
Màu led: Xanh lục/Xanh lục Mạ vàng: 6U
Vật liệu nhà ở: Polyester PBT Máy biến áp: với máy biến áp
kiểu chốt: Tab Up Đã che chắn: Đúng
Tốc độ: mèo5 Số pin: 12 chân
Tốc độ hiệu suất: 1000 cơ sở-t Cấu hình cổng: đơn
Thiết bị đầu cuối trên mỗi cổng: 8 Vật liệu lá chắn: Hợp kim đồng mạ sẵn Niken
Liên hệ mạ: Vàng 6u/15u/30u/50u
Làm nổi bật:

RJ45 connector 12 pin gold plating

,

shielded RJ45 connector PCB mount

,

6u gold plated RJ45 connector

Mô tả sản phẩm

Gigabit 8P8C Straight-Insertion RJ45 Connector
1x1 Single-Port Waterproof Integrated Router Ethernet Connector
High-performance waterproof RJ45 connector designed for industrial networking applications, featuring gigabit Ethernet compatibility and durable construction.
Part Number DGKYD411Q016DB3A1D
Brand DGKYD/OEM/ODM
Place of Origin Guangdong of China
Certification IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Technical Specifications
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch tab-up
Filter With Filter LED Option With LED
LED Color Green/Green Panel Stops Without Panel Stops
Shielded Yes Applies To Printed Circuit Board
Performance Speed 1000 BASE-T Grounding Options Panel Ground and PCB Ground
Port Configuration Single Number of Positions 12
Jack Configuration 1 x 1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Material Gold 6u/15u/30u/50u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0

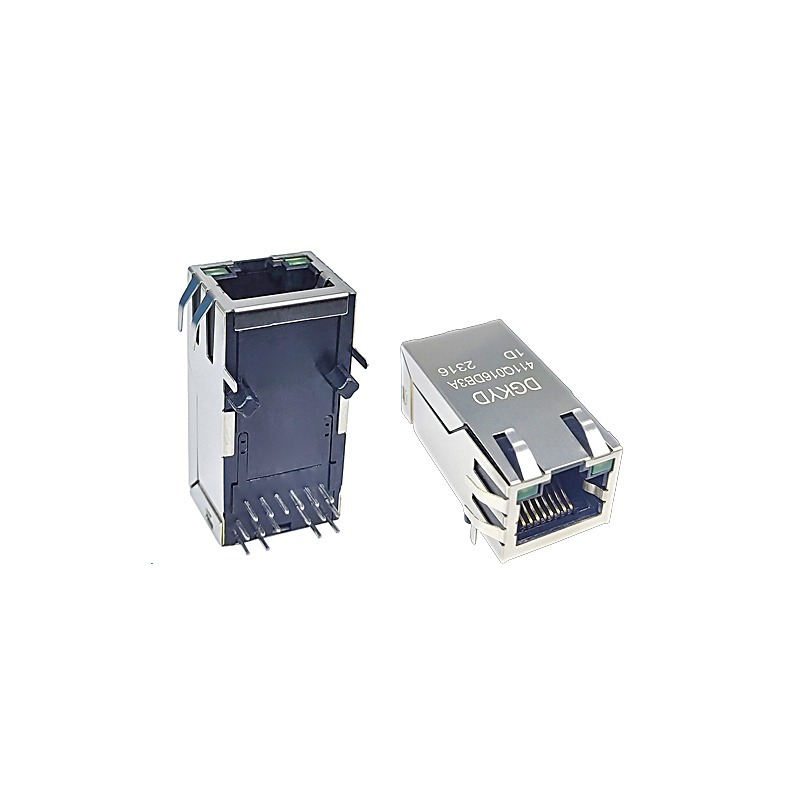

Product Images
DGKYD RJ45 Connector 12 Pin 6u Gold Plating Shielded PCB Mount 0 DGKYD RJ45 Connector 12 Pin 6u Gold Plating Shielded PCB Mount 1 DGKYD RJ45 Connector 12 Pin 6u Gold Plating Shielded PCB Mount 2 DGKYD RJ45 Connector 12 Pin 6u Gold Plating Shielded PCB Mount 3
Key Features
  • Waterproof design for industrial environments
  • Gigabit Ethernet (1000 BASE-T) performance
  • Shielded construction with copper alloy shield

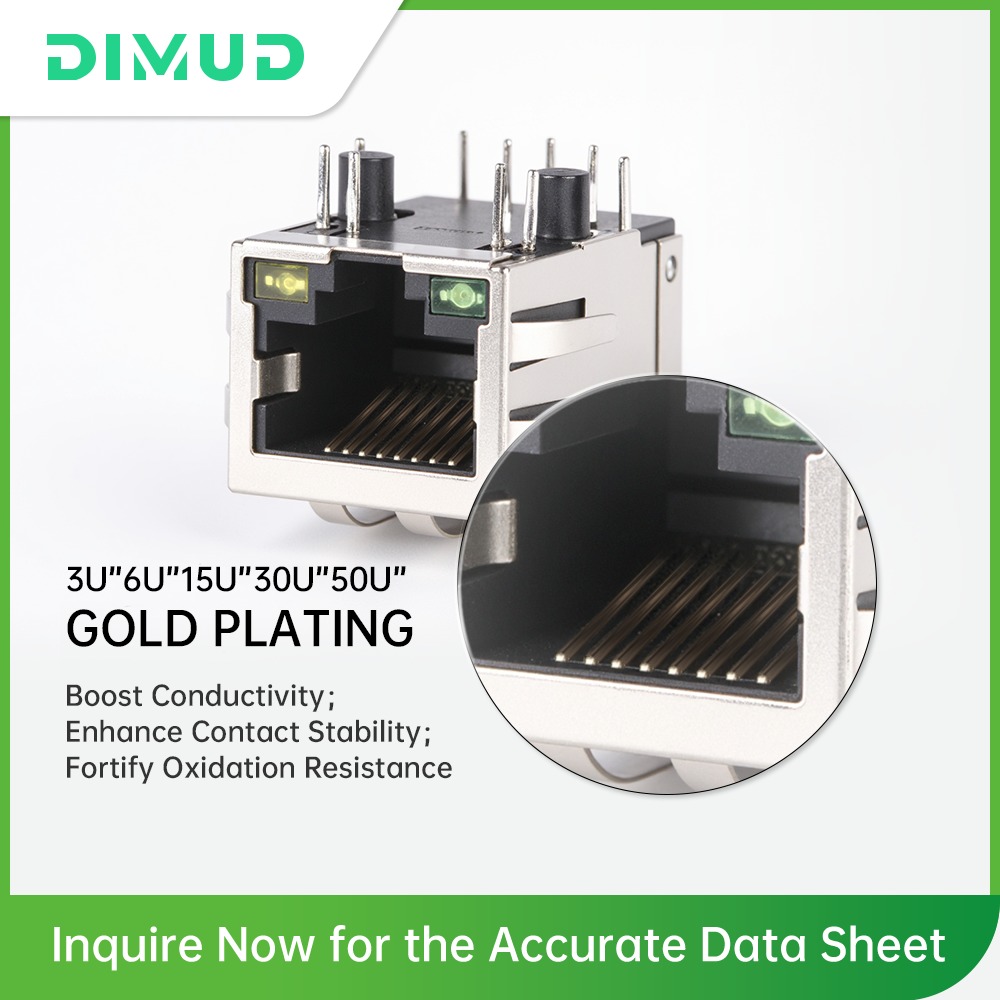

  • Gold-plated contacts for reliable connections
  • Through-hole PCB mounting with board lock
  • PBT polyester housing with UL 94V-0 rating
  • Integrated LED indicators (green/green)
  • Right-angle PCB mounting orientation
