DGKYD RJ45 Connector 8P8C with LED Green/Yellow -40℃ to 85℃

Số lượng đặt hàng tối thiểu :	1	Giá bán :	$0.20-0.30

Nguồn gốc:	Quảng Đông, Trung Quốc	Hàng hiệu:	DGKYD
Số mô hình:	DGKYD52241188AC2A3DY1027, đầu nối Jack

Thông tin chi tiết
Kiểu:	RJ45, đầu cắm và ổ cắm PCB	Màu led:	Xanh/Vàng
Mạ:	Vàng mạ g/fu	Vật liệu nhà ở:	PA46 Polyester
kiểu chốt:	Tiêu chuẩn	Lọc:	không có bộ lọc
tùy chọn đèn led:	Với ĐÈN LED	Đã che chắn:	Đúng
Tốc độ hiệu suất:	10/100/1000/10G cơ sở-t	Số vị trí:	8
Vật liệu lá chắn:	Hợp kim đồng mạ sẵn Niken	Liên hệ mạ:	Vàng g/fu
Liên hệ vật liệu cơ bản:	Phốt pho bằng đồng	Phương thức chấm dứt:	Thông qua lỗ hổng phù hợp
Nhiệt độ hoạt động:	-40oC ~ 85oC
Làm nổi bật:	RJ45 connector with LED , 8P8C RJ45 connector -40℃ to 85℃ , single port RJ45 connector green/yellow

Mô tả sản phẩm

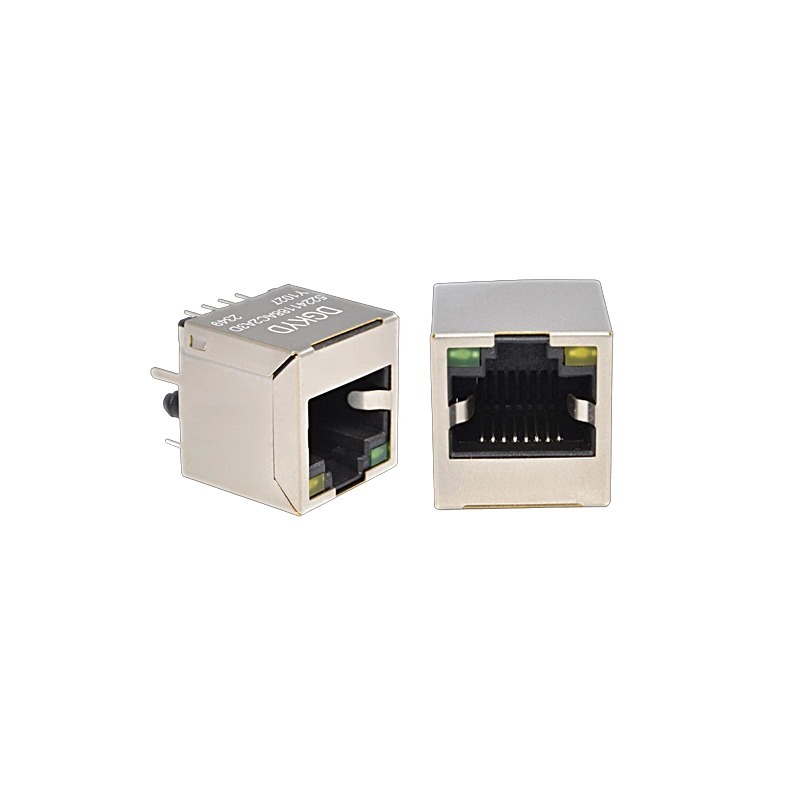

High-Quality 180° Straight Insertion 8P8C Modular RJ45 Network Connector with LED Strip

This shielded RJ45 connector features a modular design with LED indicators, panel stops, and high-performance capabilities for 10/100/1000/10G BASE-T networks. The filter-free design ensures reliable data transmission in industrial applications.

Product Specifications

Part Number	DGKYD52241188AC2A3DY1027
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certifications	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Modular Connector
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
LED Options	Green/Yellow LED indicators
Shielded	Yes (Copper Alloy with Nickel plating)
Performance Speed	10/100/1000/10G BASE-T
Mounting Orientation	Side Entry (Right Angle)
Contact Plating	Gold G/Fu (mating area), Tin-Lead over Nickel (solder tail)
Housing Material	PA46 Polyester (UL 94V-0 rated)

Key Features

180° straight insertion design for easy installation
Modular construction with panel stops for secure mounting
Dual-color LED indicators (Green/Yellow) for status monitoring
Shielded design with copper alloy for EMI protection
High-performance contacts with gold plating for reliable connections
Through-hole PCB mounting with press-fit termination
UL 94V-0 rated flame-resistant housing
Compatible with 10G BASE-T networks

Product Images

Applications

This industrial-grade RJ45 connector is ideal for network equipment, telecommunications devices, industrial automation systems, and any application requiring reliable high-speed data transmission in demanding environments.
