Giắc cắm kết hợp RJ45 USB Stack 2x1 W / USB 3.0 1-1909119-4 Tuân thủ RoHS KRJ-USB03YGZNL
Người liên hệ : Nicole Zhuo
Số điện thoại : +86 18925835585
WhatsApp : +8613538542087
Số lượng đặt hàng tối thiểu : | 1 miếng | Giá bán : | Please contact us to get the latest price. |
---|---|---|---|
chi tiết đóng gói : | Khay trong thùng carton | Thời gian giao hàng : | 10 NGÀY |
Điều khoản thanh toán : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Khả năng cung cấp : | 100K chiếc/ngày |
Nguồn gốc: | Đông Quan của Trung Quốc | Hàng hiệu: | DGKYD |
---|---|---|---|
Chứng nhận: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Số mô hình: | DGKYDRU22188AB1WDD1080 |
Thông tin chi tiết |
|||
Loại kết nối: | RJ45 với đôi USB | Mạ vàng: | Glod Flash mạ |
---|---|---|---|
Nhiệt độ hoạt động: | -40℃ đến +85℃ | Độ bền: | tối thiểu 750 chu kỳ |
Cái khiên: | mạ đồng niken phốt pho | OEM/ODM: | Vâng |
Số Vị trí/Liên hệ: | 8P8c (RJ45, Ethernet) | Mạ vàng trên chân tiếp xúc: | G/Phúc |
dẫn: | Vàng/Xanh lục | nhiệt độ lưu trữ: | -40°C~+85°C |
Nhiệt độ hoạt động: | -40°C~+85°C |
Mô tả sản phẩm

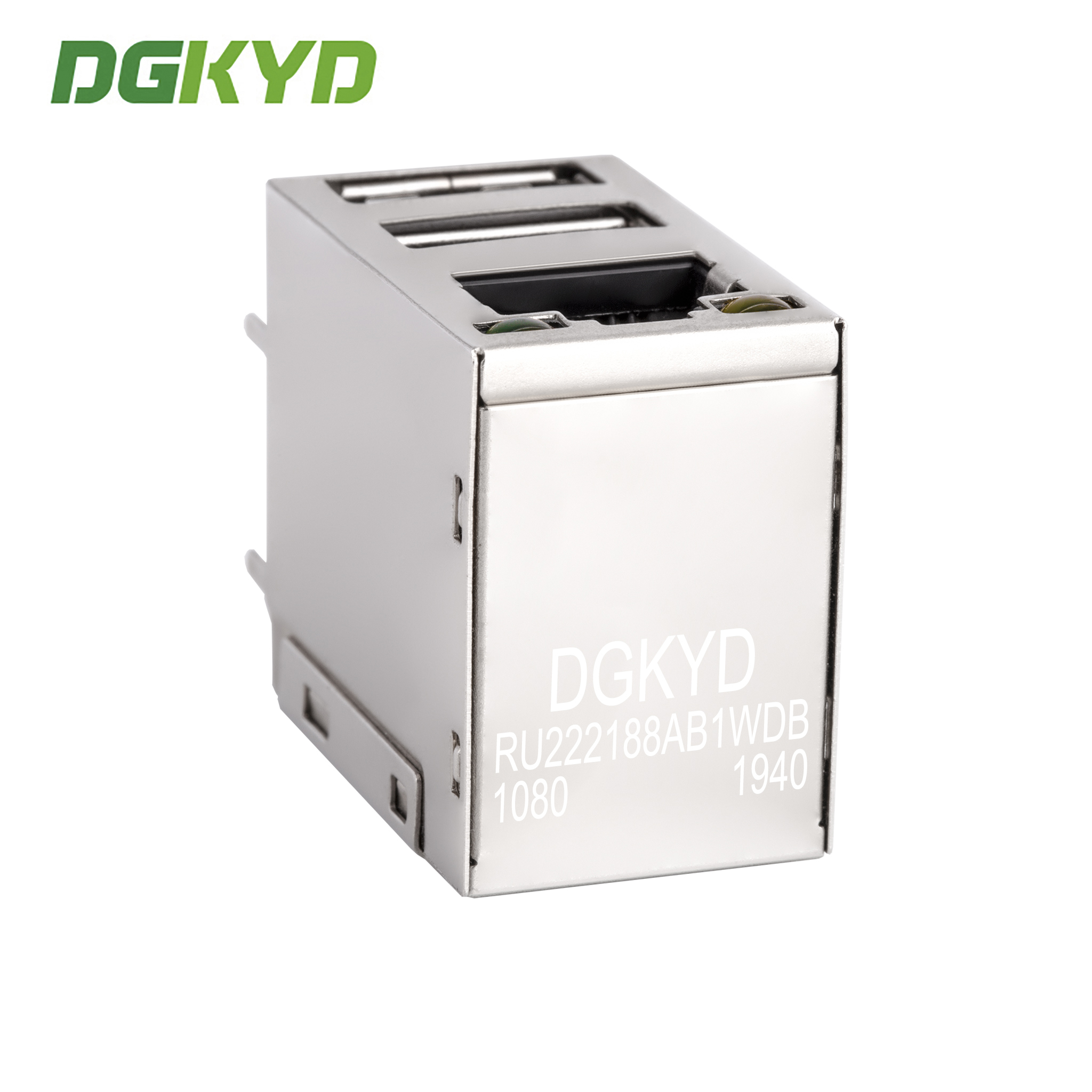

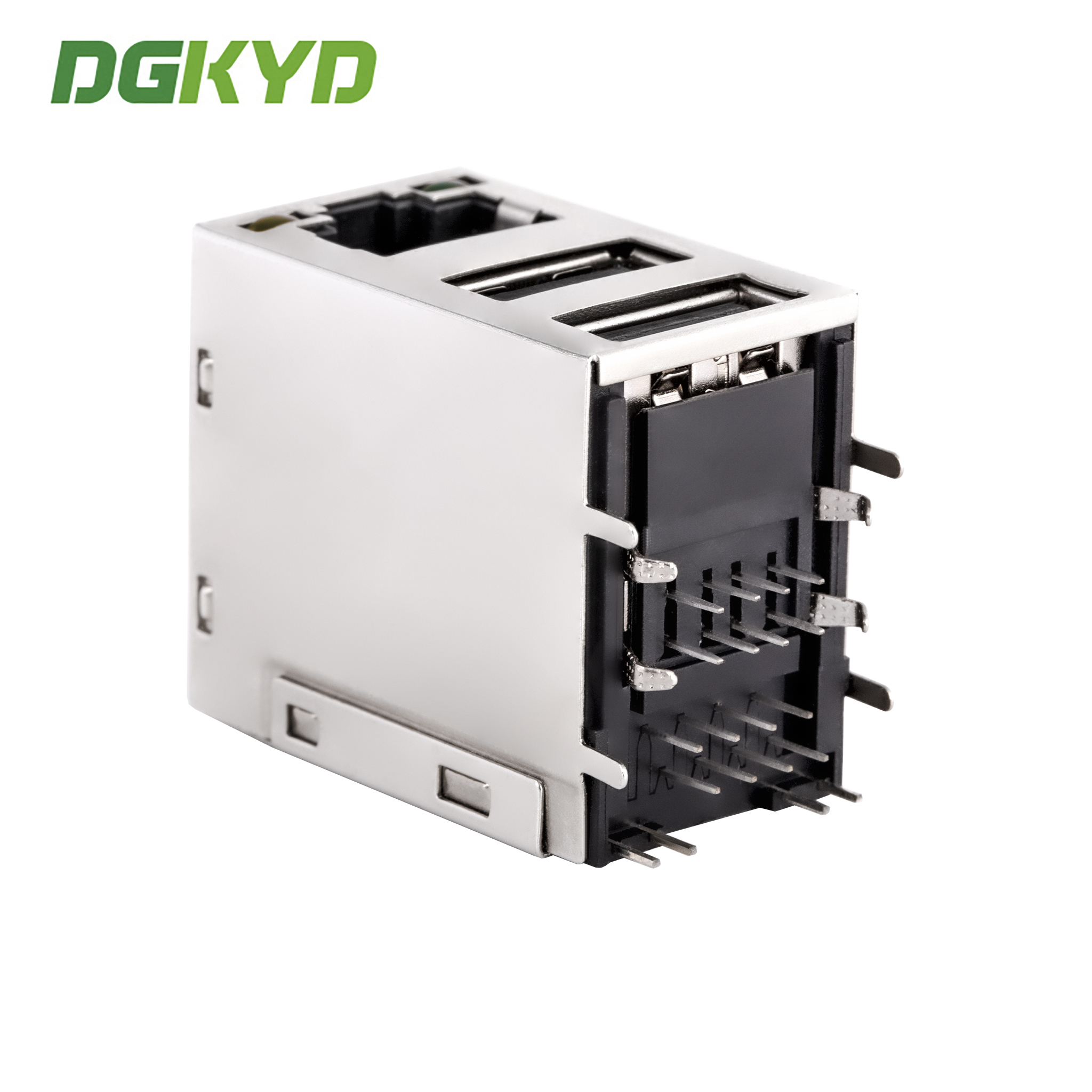

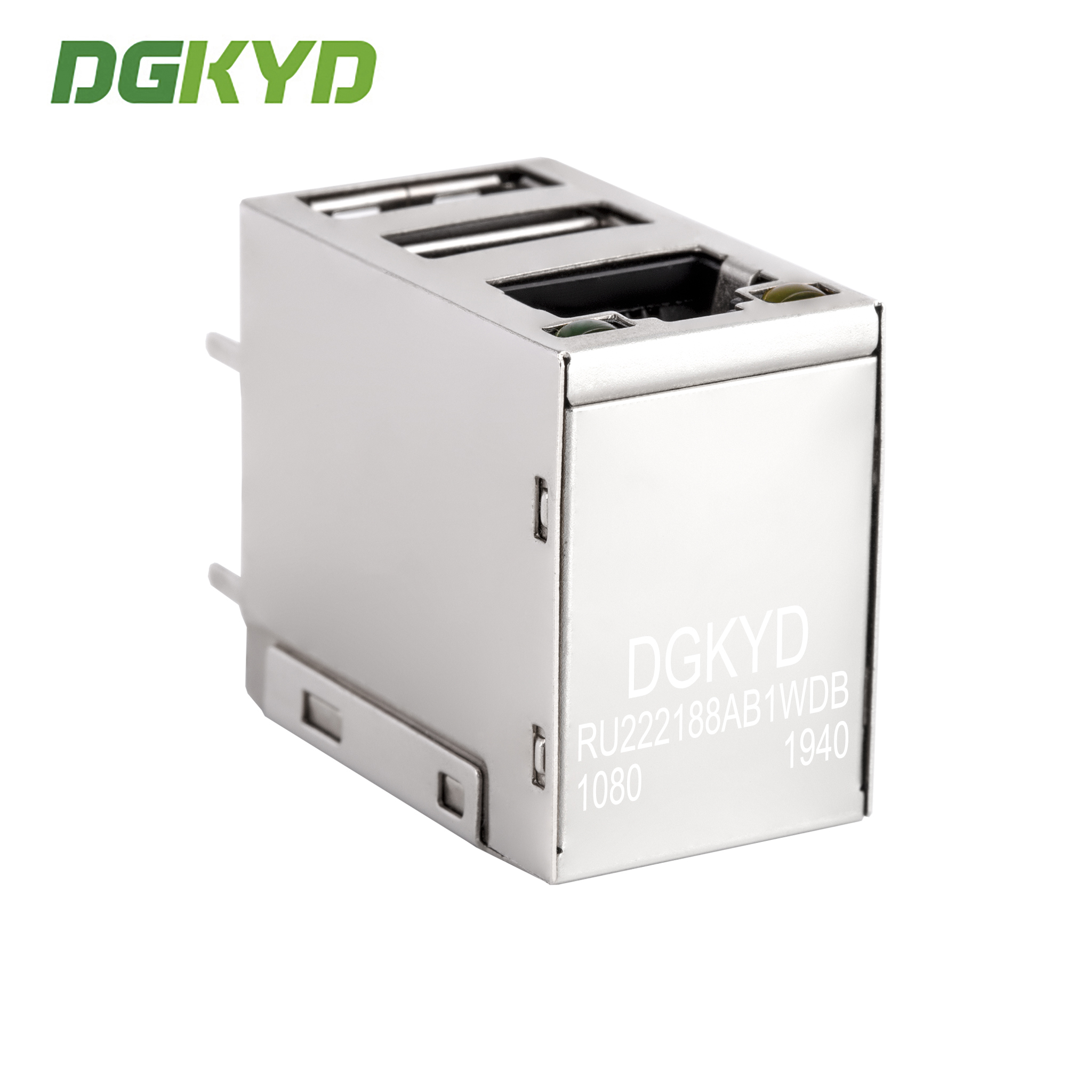

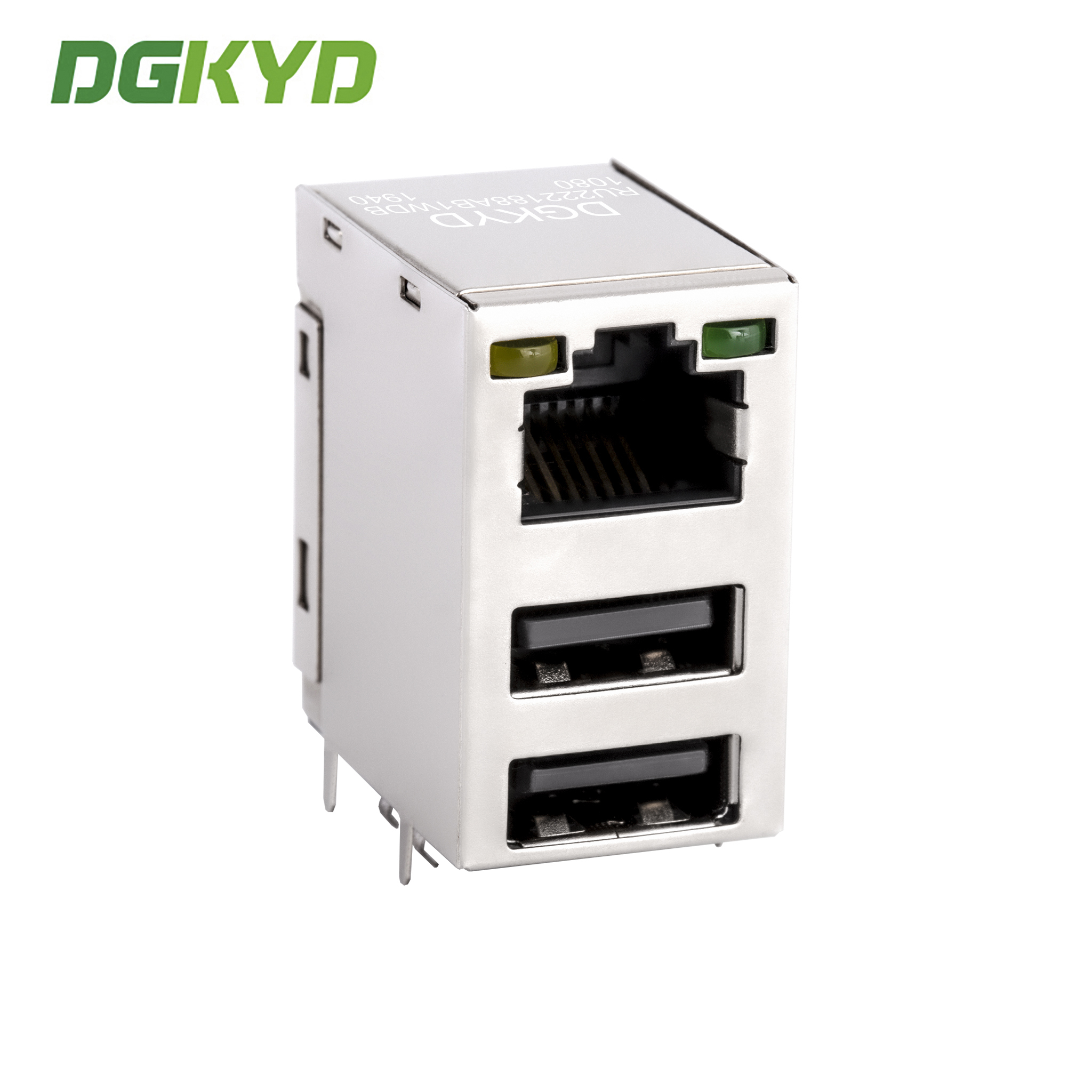

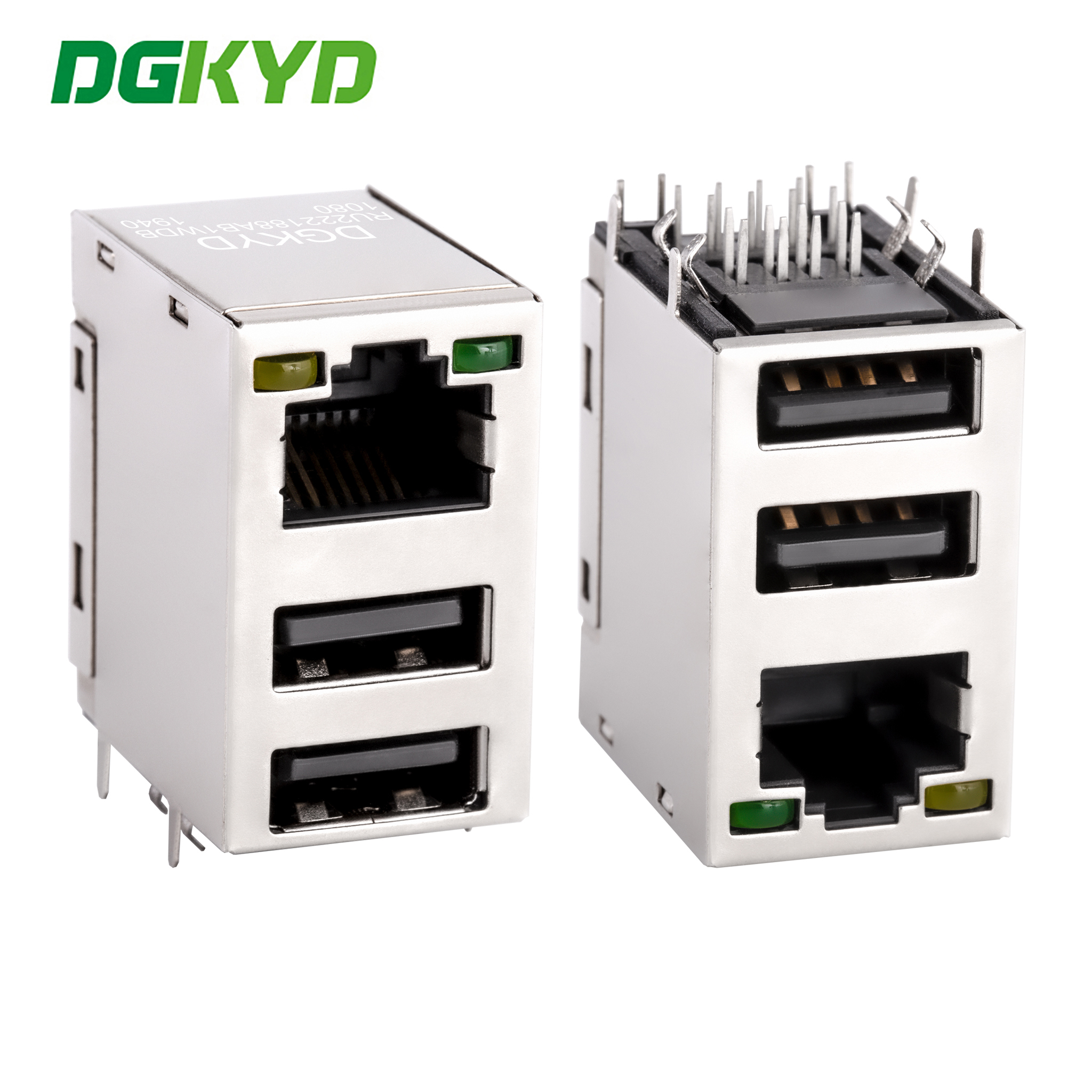

RJ45 connector with dual USB 2.0 socket, no filter, light strip, shielding, stacked network port DGKYDRU22188AB1WDD1080
Product Specification Document
DGKYDRU222188AB1WDB1080.pdf
Paramters
Part Number | DGKYDRU22188AB1WDD1080 | Brand | DGKYD/OEM/ODM |
Product Type | Connector-Modular | Connector Style | Jack |
Jack Type | RJ45 | Connector Type | Modular Jack |
Latch Style | Standard | Latch | TAB-UP |
Filter |
Without Filter |
LED Option | With LED |
LED Color | Yellow/Green | Panel Stops | With Panel Stops |
Shielded | With metal shield | Applies To | Printedout Circuit Board |
Port Configuration | 3X1 Ports | Number of Positions | 8 |
Jack Configuration | 3X1 | Terminals per Port | 8 |
Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
Contact Mating Area Plating | Gold G/Fu | Contact Base Material | Phosphor Bronze |
Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
Housing Material | PBT Polyester | Housing Color | Black |
Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature:- 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
