| Số lượng đặt hàng tối thiểu : | 1 miếng | Giá bán : | Please contact us to get the latest price. |
|---|---|---|---|
| Packaging Details : | Tray in Carton | Delivery Time : | 10 days |
| Payment Terms : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Khả năng cung cấp : | 100K chiếc/ngày |
| Place of Origin: | DongGuan of China | Hàng hiệu: | DGKYD |
|---|---|---|---|
| Chứng nhận: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Số mô hình: | DGKYD52T1188GWA1DY1 |
|
Thông tin chi tiết |
|||
| Category: | Phone Jacks | Loại thành phần: | Giắc cắm PCB |
|---|---|---|---|
| Loại: | RJ45 | Magnetic: | NONE |
| Performance Category: | cat 5 | Insetion Type: | Side entry |
| Color: | Black | Current Rating (Amps): | 1.5A |
| Material: | PBT | chấm dứt: | DIP |
| Model Number: | 52T | Nhiệt độ hoạt động: | -40°C~+85°C |
| Làm nổi bật: | Built-in Transformer RJ45 Vertical Interface,shielded mesh socket RJ45 Vertical Interface,180 degree RJ45 vertical interface |
||
Mô tả sản phẩm

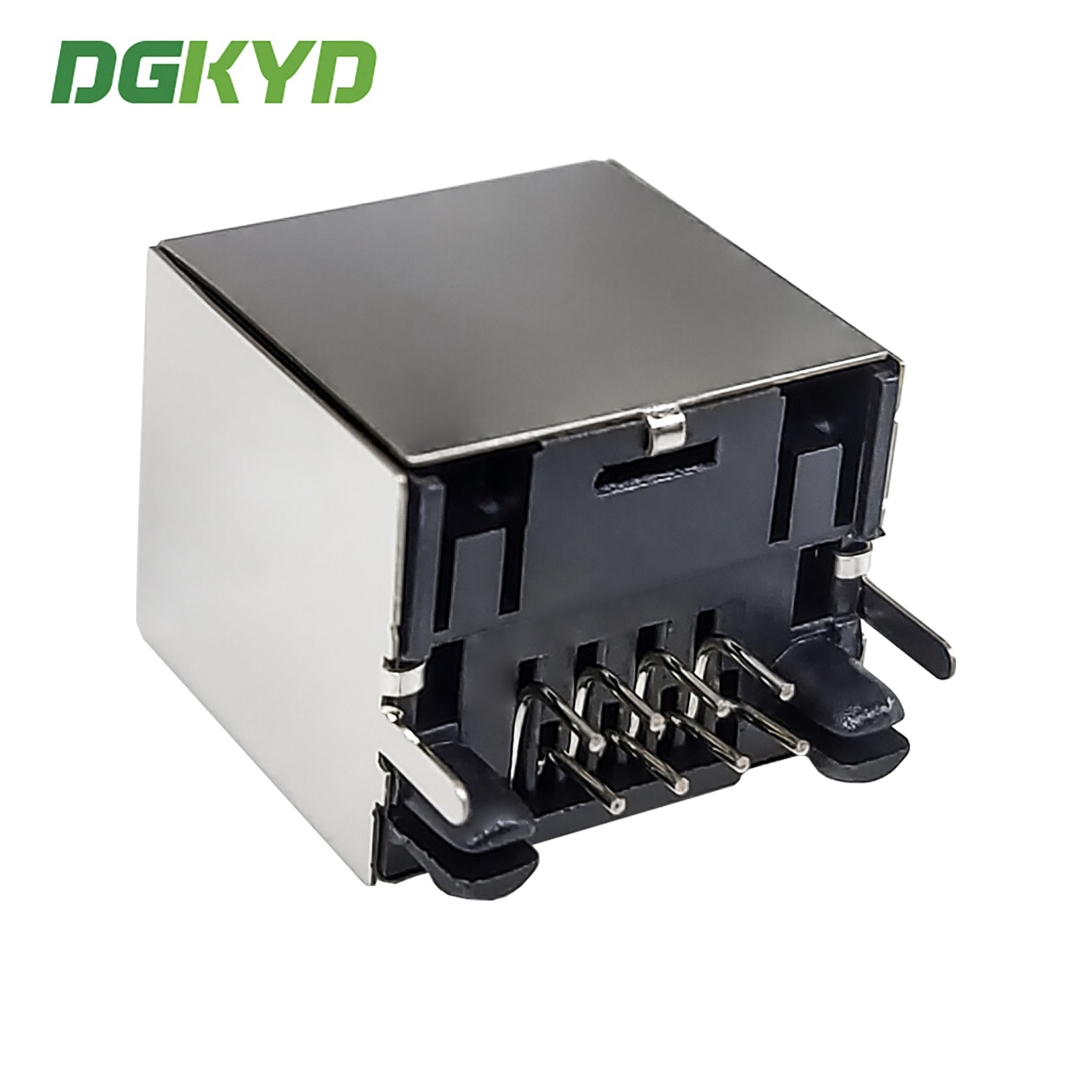

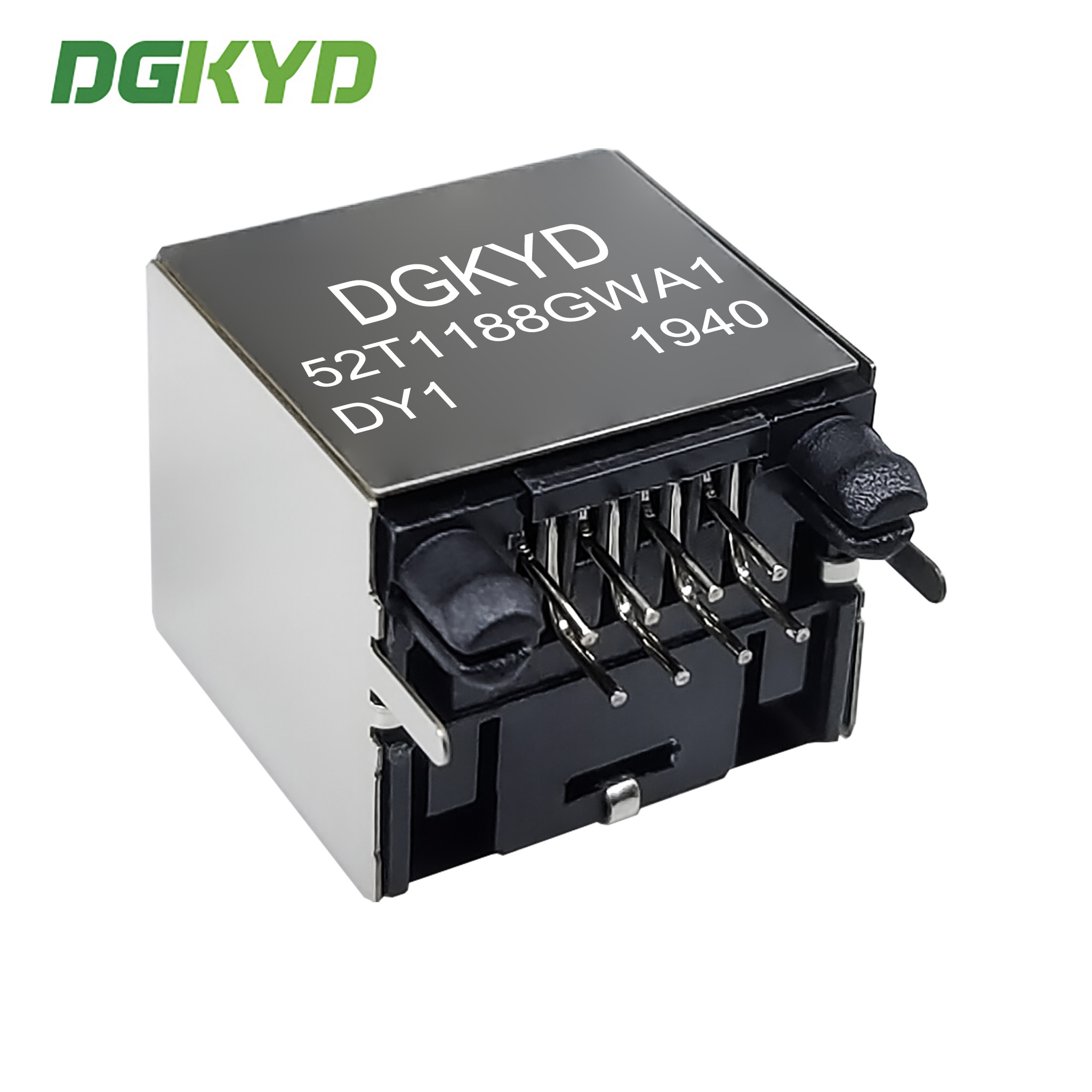

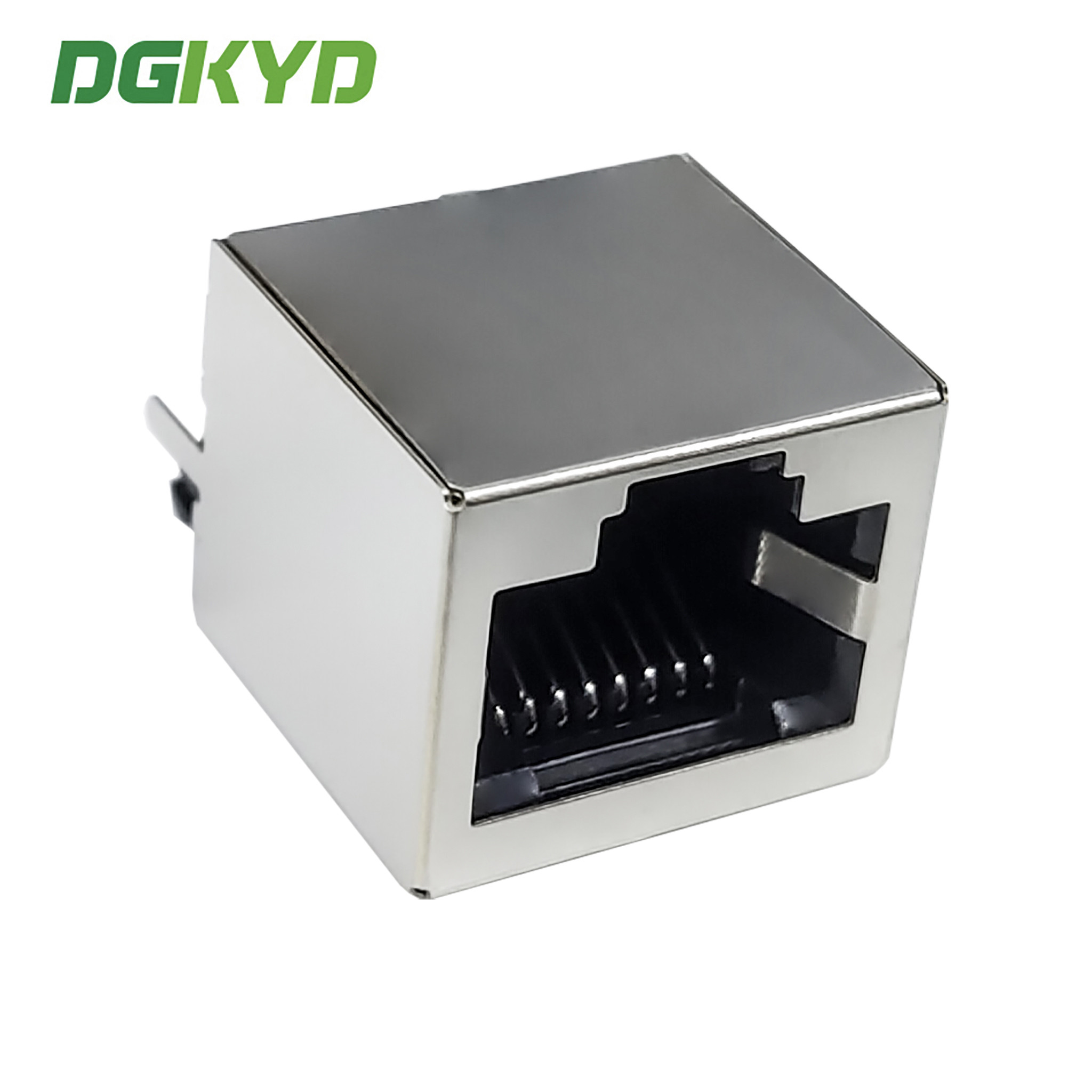

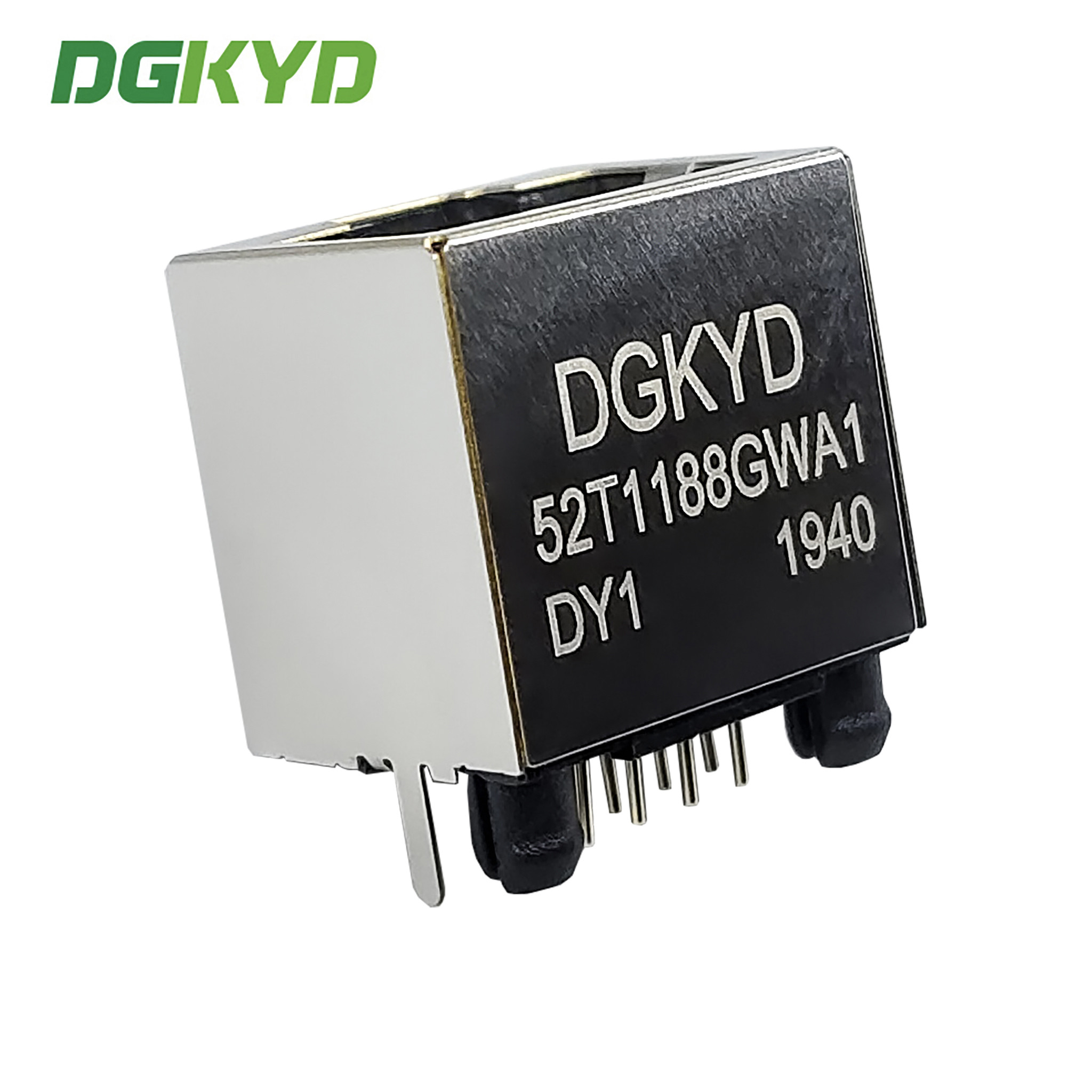

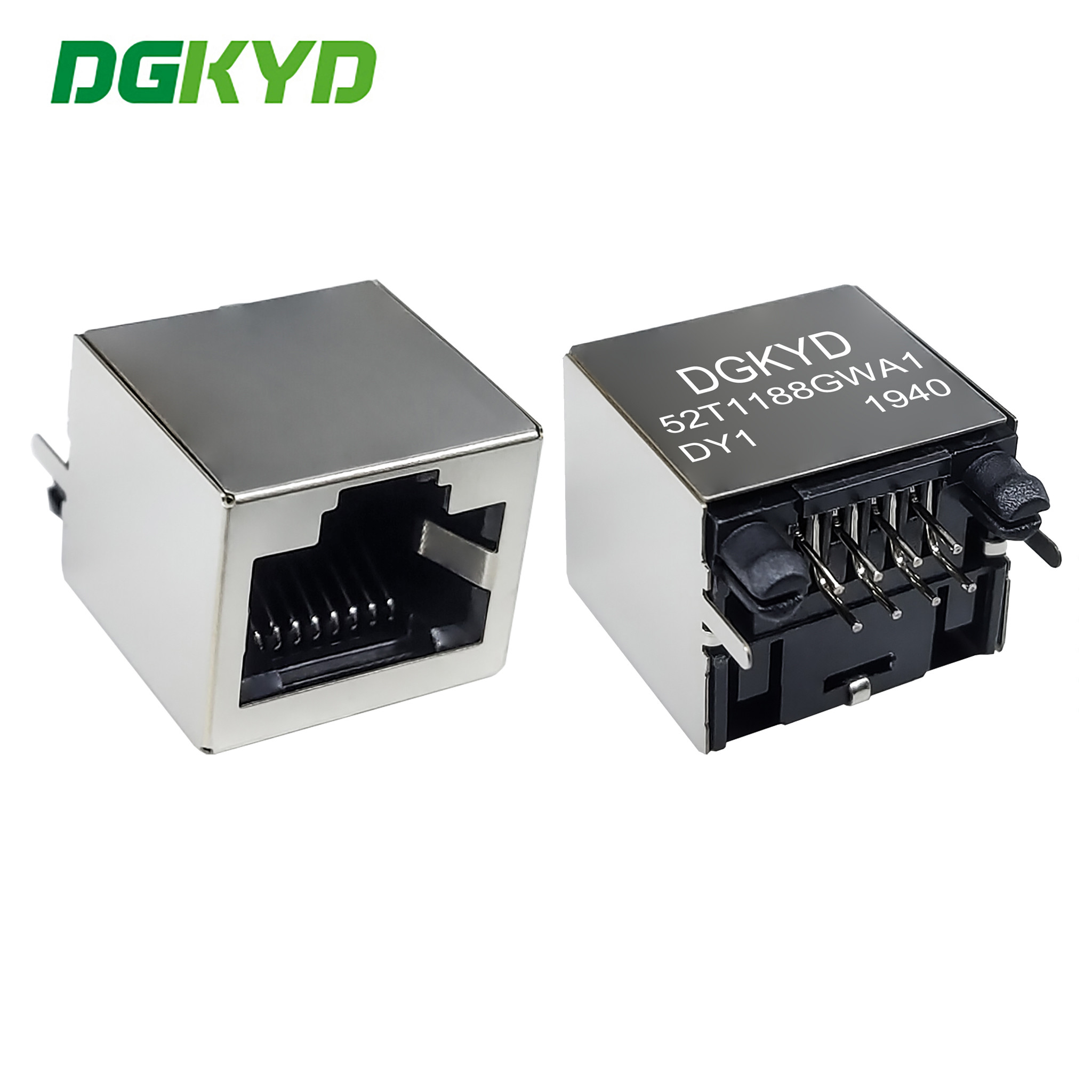

180 degree vertical interface RJ45 with shielded mesh socket without built-in transformer DGKYD52T1188GWA1DY1
Product Specification Document
Parameters
| Part Number | DGKYD52T1188GWA1DY1 | Brand | DGKYD/OEM/ODM |
| Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | Without Filter | LED Option | Without LED |
| LED Color | No | Panel Stops | With Panel Stops |
| Shielded | No | Applies To | Printed Circuit Board |
| Performance Speed | 10/100/1000BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
| Port Configuration | Single Ports | Number of Positions | 8 |
| Jack Configuration | 1X1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating Material | Gold 0.6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
