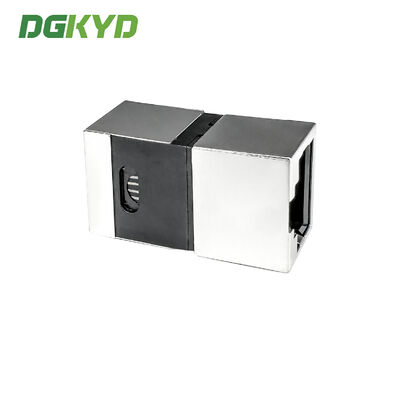

Shielded RJ45 straight through module side copper shell without buckle DGKYD-US030-006E

Số lượng đặt hàng tối thiểu :	1 mảnh	Giá bán :	Please contact us to get the latest price.
chi tiết đóng gói :	Khay trong thùng carton	Thời gian giao hàng :	10 ngày
Điều khoản thanh toán :	T/T,D/P,D/A,L/C,Western Union,MoneyGram	Khả năng cung cấp :	100K PC/ngày

Nguồn gốc:	Dongguan của Trung Quốc	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Số mô hình:	DGKYD-US030-006E
Tài liệu:	DGKYD-US030-006E.pdf

Thông tin chi tiết
Vỏ bọc:	PBT, UL94V-0, màu đen.	Phần cuối:	đồng phốt pho, mạ vàng 15u "
Che chắn:	đồng thau, T = 0,20MM, Mạ niken trong 20 phút	Độ bền:	Tối thiểu 750 chu kỳ, 12,5MM/PHÚT.
lực chèn:	tối đa 2,2kg. F.	Nắm giữ lực lượng:	7,7kg. F nằm giữa ổ cắm và phích cắm.
Kho:	-40oC~+85oC	Hoạt động:	-40oC~+85oC
Làm nổi bật:	Shielded RJ45 connector without buckle , Straight through module side copper shell , RJ45 wire harness with warranty

Mô tả sản phẩm

Shielded RJ45 Straight Through Module Side Copper Shell Without Buckle DGKYD-US030-006E

Product Documentation

Product Specifications

Part Number	DGKYD-US030-006E	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Filter	Without internal filter
LED Option	Without LED	Panel Stops	Without Panel Stops
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	Standard	Grounding Options	Panel Ground and PCB Ground
Port Configuration	1 port	Number of Positions	8
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 15u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	White
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

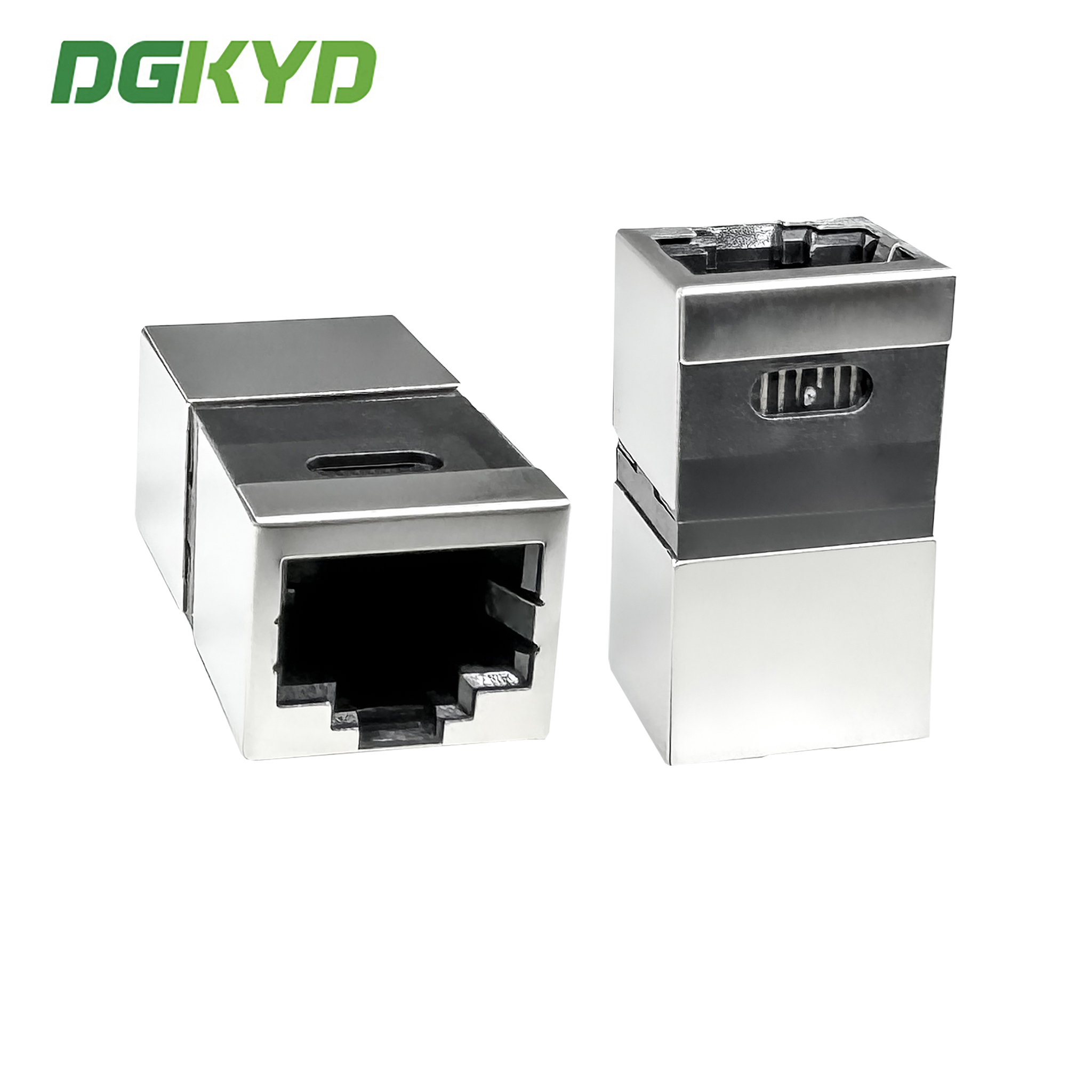

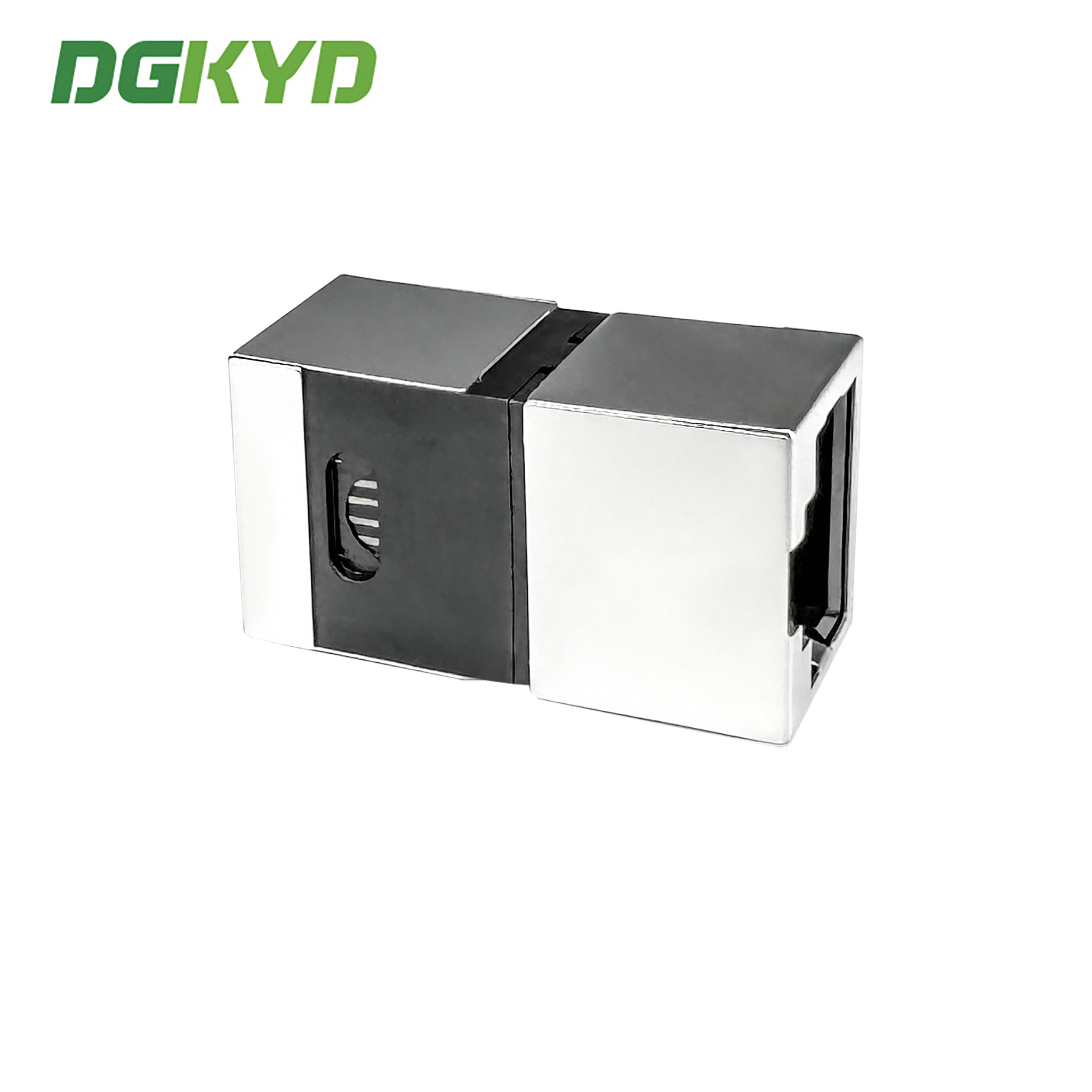

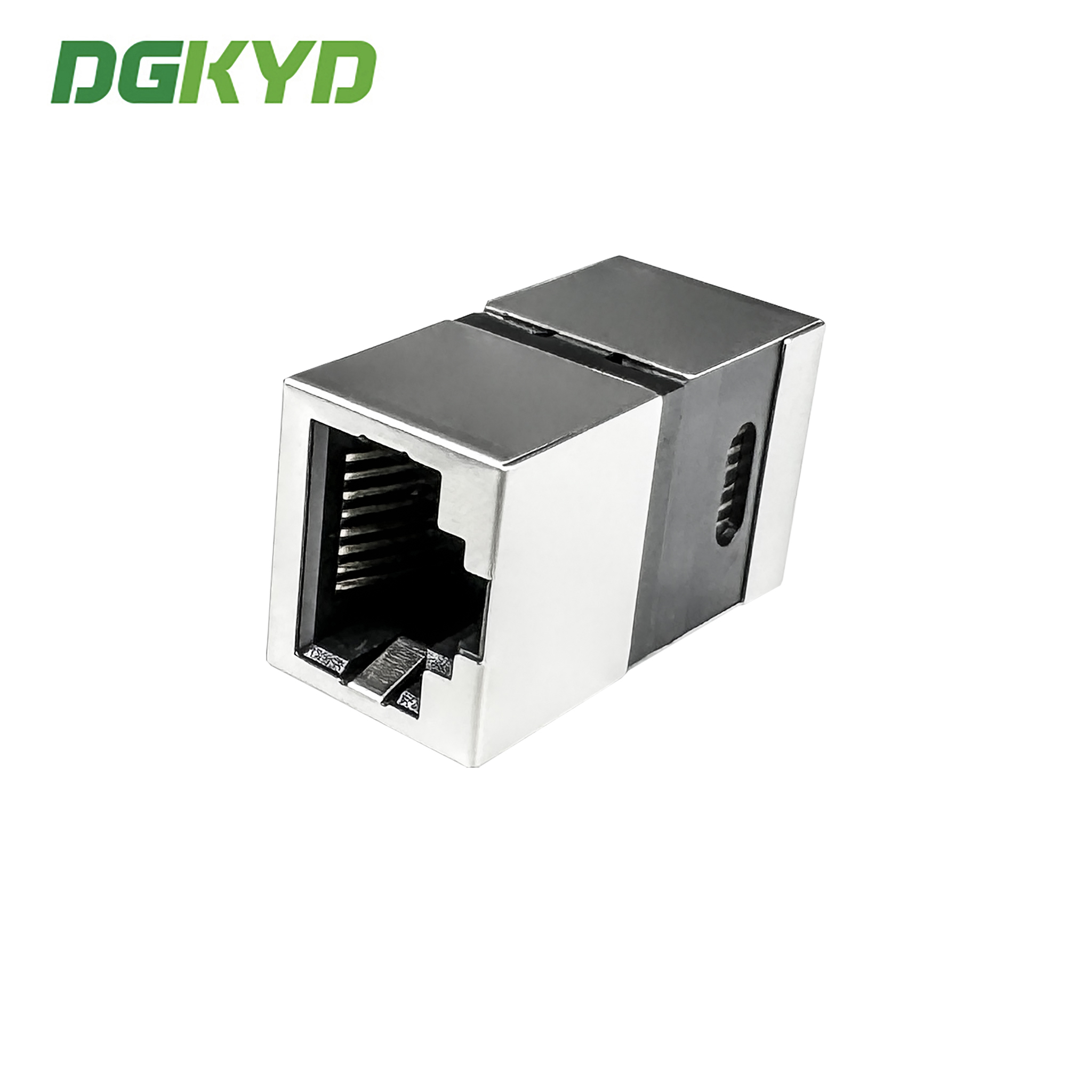

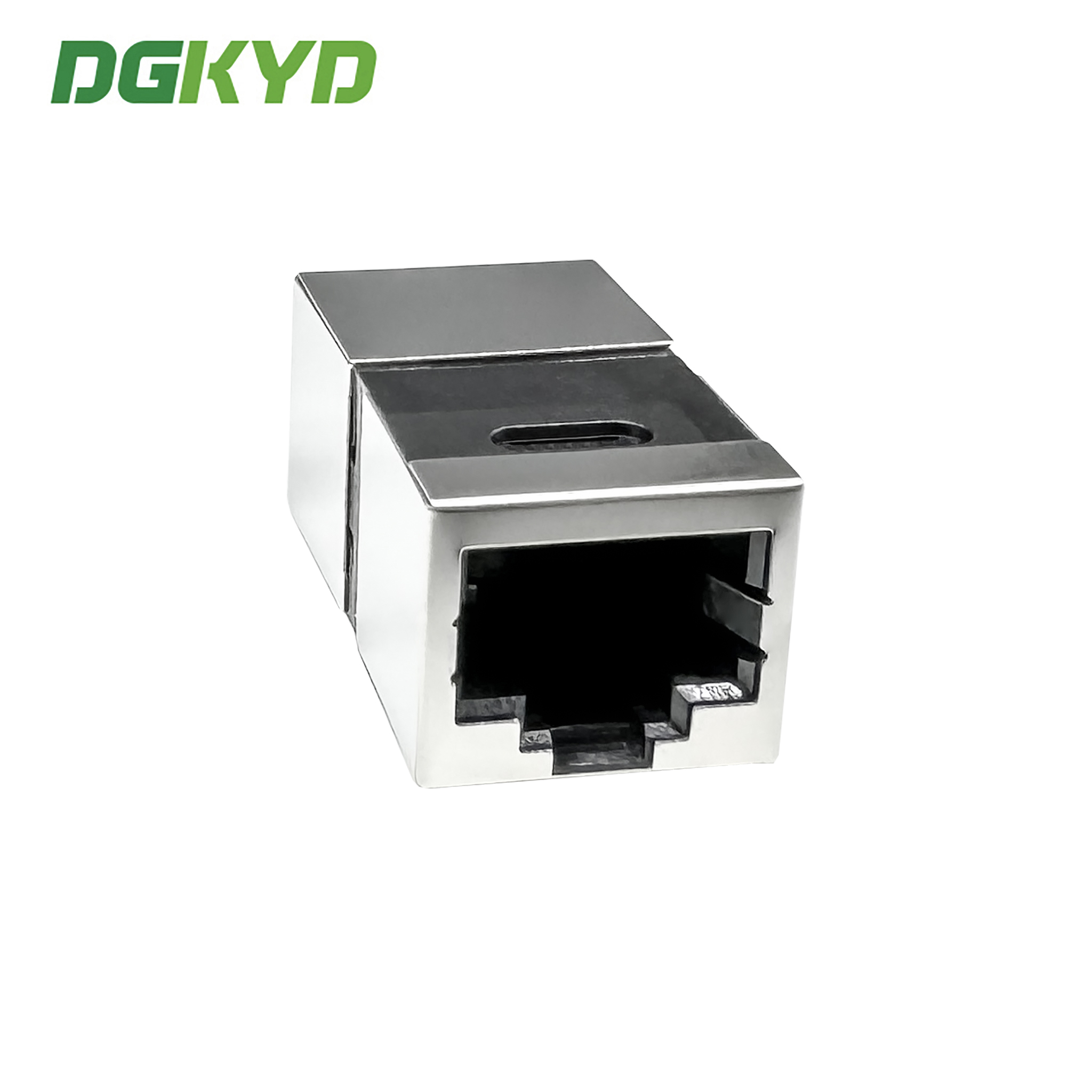

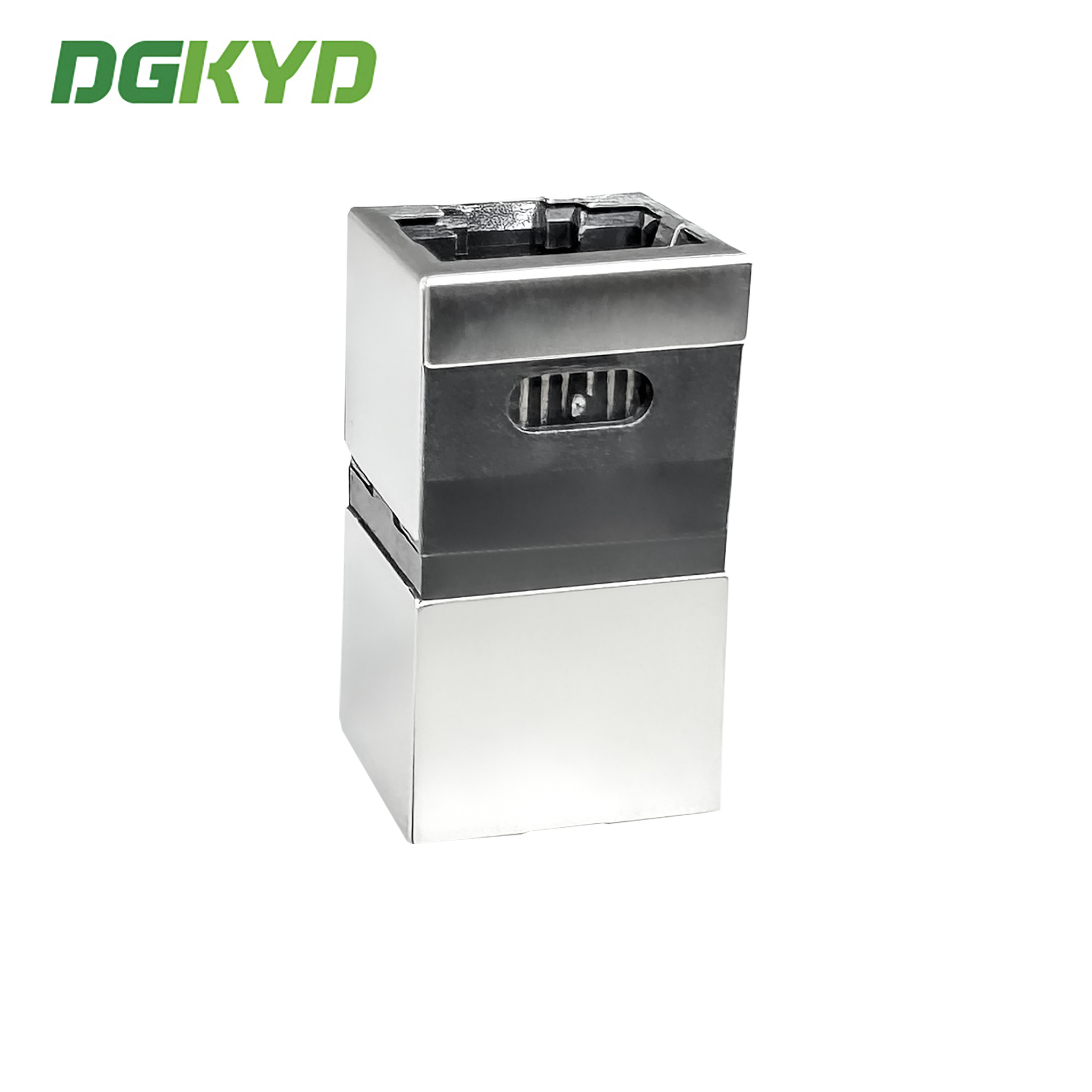

Product Image

Our Service Commitment

World's Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Quality

Manufactured Under Strict Controls
100% Tested (Not Just Batch Tested)
DGKYD Is OEM Of FOXCONN For 6 Years
Successful Customer: PANASONIC/FOXCONN/HUAWEI/ZTE

Competitive Price And Service

More Competitive Price Than Pulse Tyco Halo And Amphenol
Delivery Time: 1-2 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements

DGKYD Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
DGKYD Is Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services
