| Số lượng đặt hàng tối thiểu : | 1 mảnh | Giá bán : | Please contact us to get the latest price. |
|---|---|---|---|
| chi tiết đóng gói : | Khay trong thùng carton | Thời gian giao hàng : | 10 ngày |
| Điều khoản thanh toán : | T/T, D/P, D/A, L/C, Western Union, Moneygram | Khả năng cung cấp : | 100K PC/ngày |
| Nguồn gốc: | Dongguan của Trung Quốc | Hàng hiệu: | DGKYD |
|---|---|---|---|
| Chứng nhận: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Số mô hình: | KRJ-339PWDENL |
|
Thông tin chi tiết |
|||
| Hiệu suất: | 1000Mb | PoE: | PoE / PoE+ / PoE++ |
|---|---|---|---|
| Đánh giá hiện tại: | 1,5 A (tối đa) @ 25° C | Đánh giá điện áp: | 150 VAC (tối đa) |
| Loại thành phần: | Jack Jack | Danh mục hiệu suất: | MÈO 6 |
| Nối đất cho PCB: | Đúng | Loại bao bì: | Khay |
| Số lượng lõi: | 8 | Mạ vàng trên ghim tiếp xúc: | 6U |
| Nhiệt độ hoạt động: | -40 ° C ~+85 ° C. | Nhiệt độ bảo quản: | -40 ° C ~+85 ° C. |
| Làm nổi bật: | 1 port PoE RJ45 transformer,12 pin RJ45 for fiber optic,RJ45 transformer with 1000m range |
||
Mô tả sản phẩm
One Port PoE RJ45 Transformer with 1000m integrated 12-pin RJ45 connector designed for fiber optic transceivers. Model: KRJ-339PWDENL The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!One Port PoE RJ45 Transformer, 1000m Integrated 12 Pin RJ45 For Fiber Optic Transceiver KRJ-339PWDENL
Technical Specifications
Part Number
KRJ-339PWDENL
Brand
DGKYD/OEM/ODM
Product Type
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type
Modular Jack
Latch Style
Standard
Latch
TAB-UP
Filter
With Filter
LED Option
Without LED
LED Color
No
Panel Stops
With Panel Stops
Shielded
With metal shield
Applies To
Printed Circuit Board
Port Configuration
Single Ports
Number of Positions
12
Jack Configuration
1X1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation
Side Entry (Right Angle)
Contact Mating Area Plating
Gold 6u
Contact Base Material
Phosphor Bronze
Solder Tail Contact Plating Material
Tin-Lead over Nickel
PCB Mounting Style
Through Hole
Termination Method to PC Board
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material
PBT Polyester
Housing Color
Black
Housing Material Temperature
Standard
UL Flammability Rating
UL 94V-0

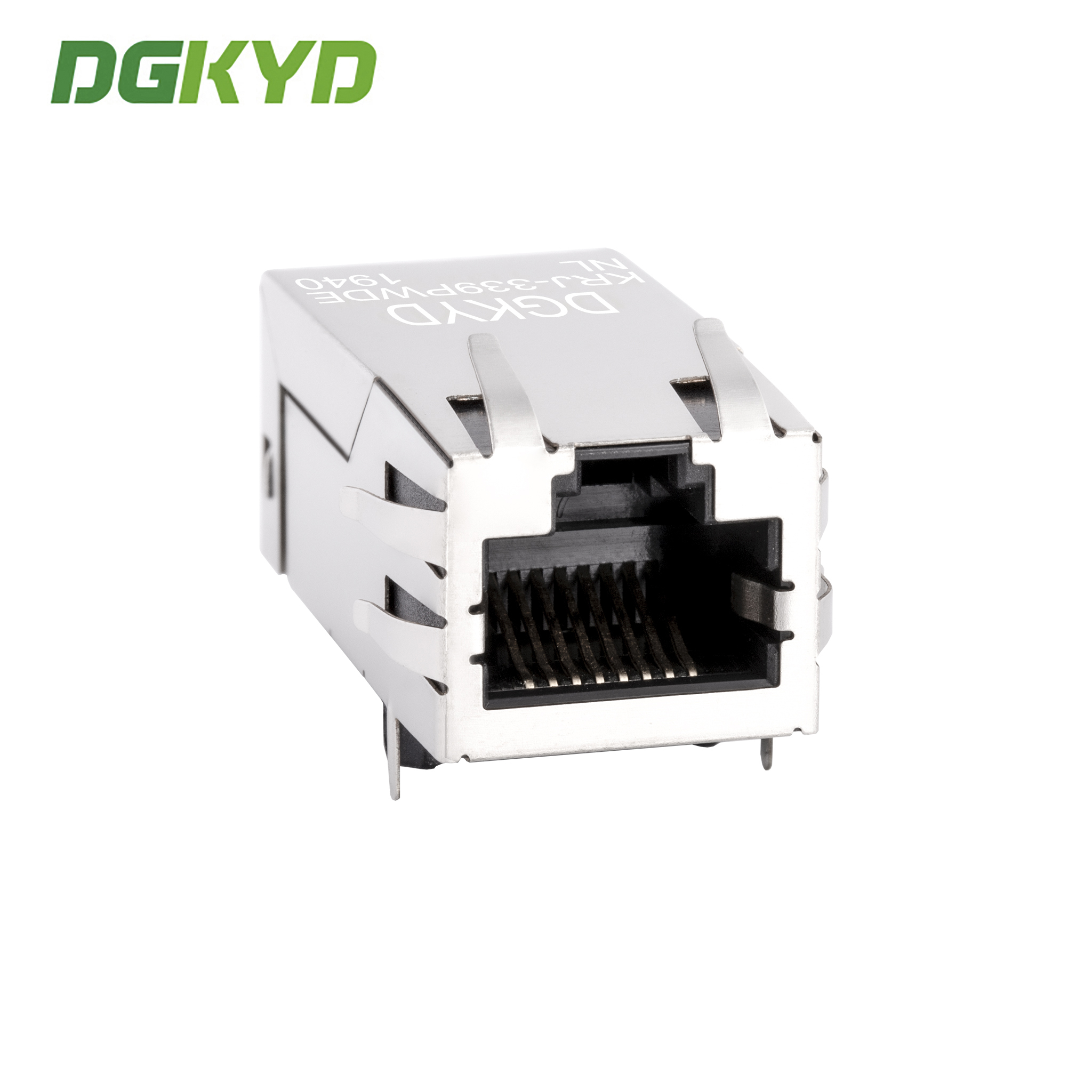

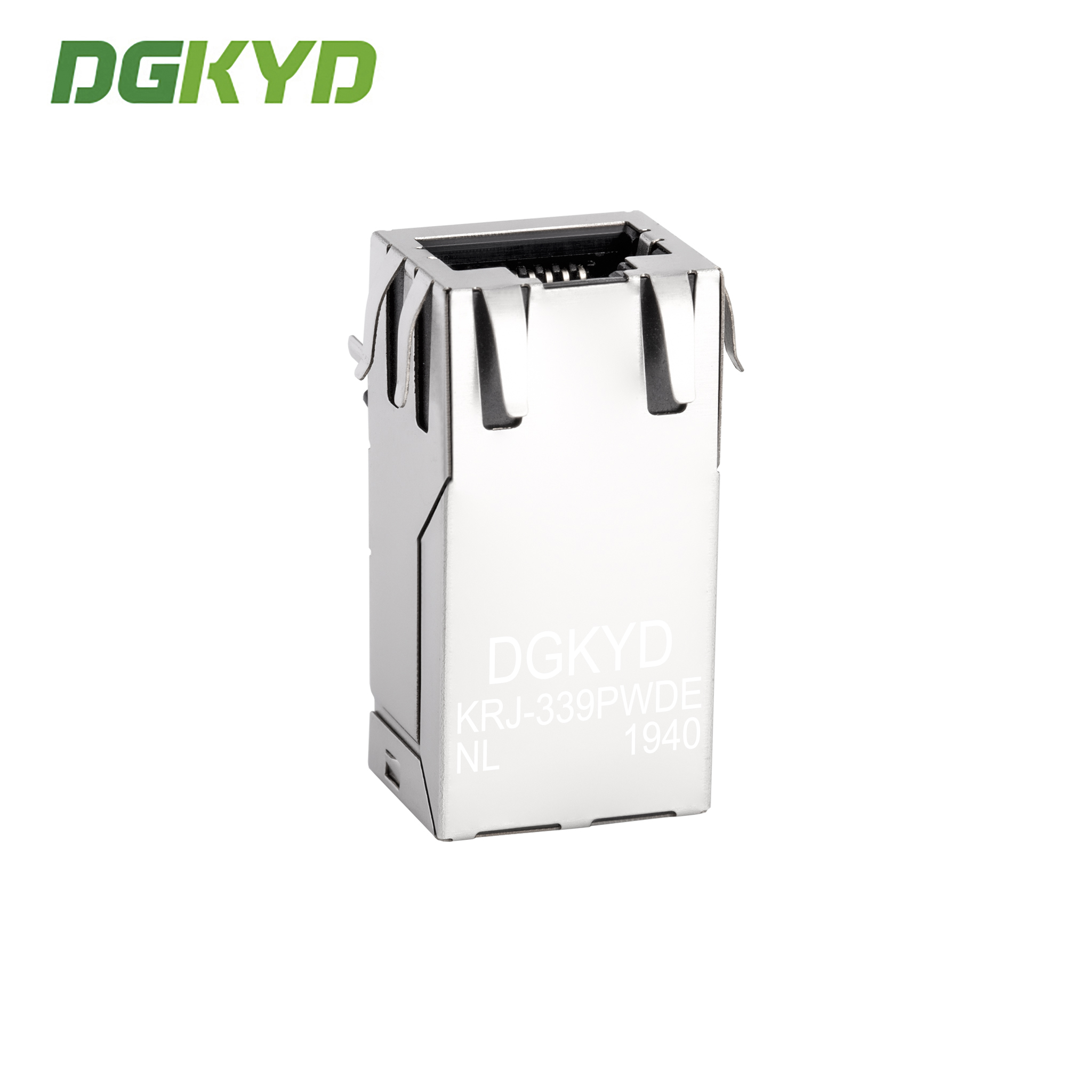

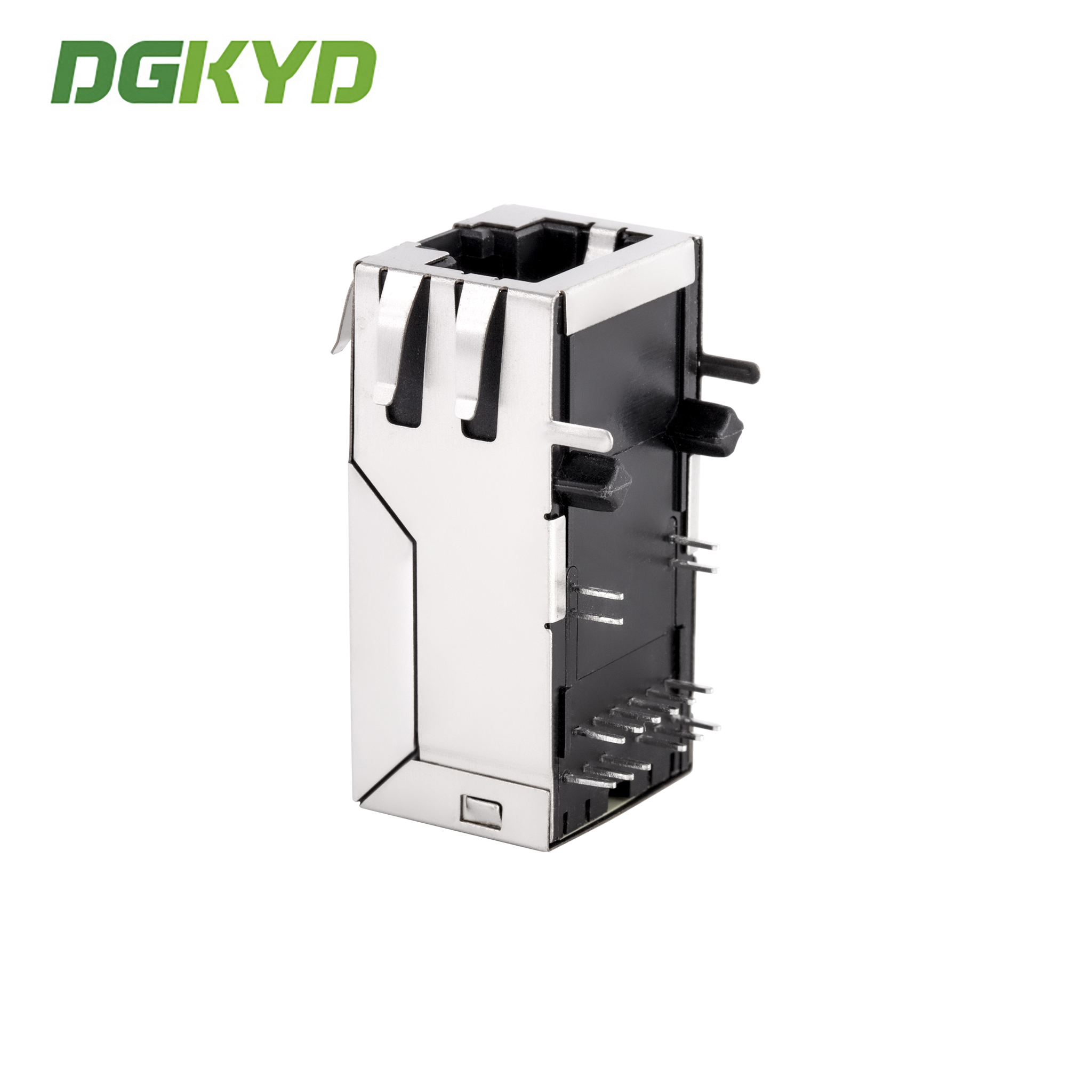

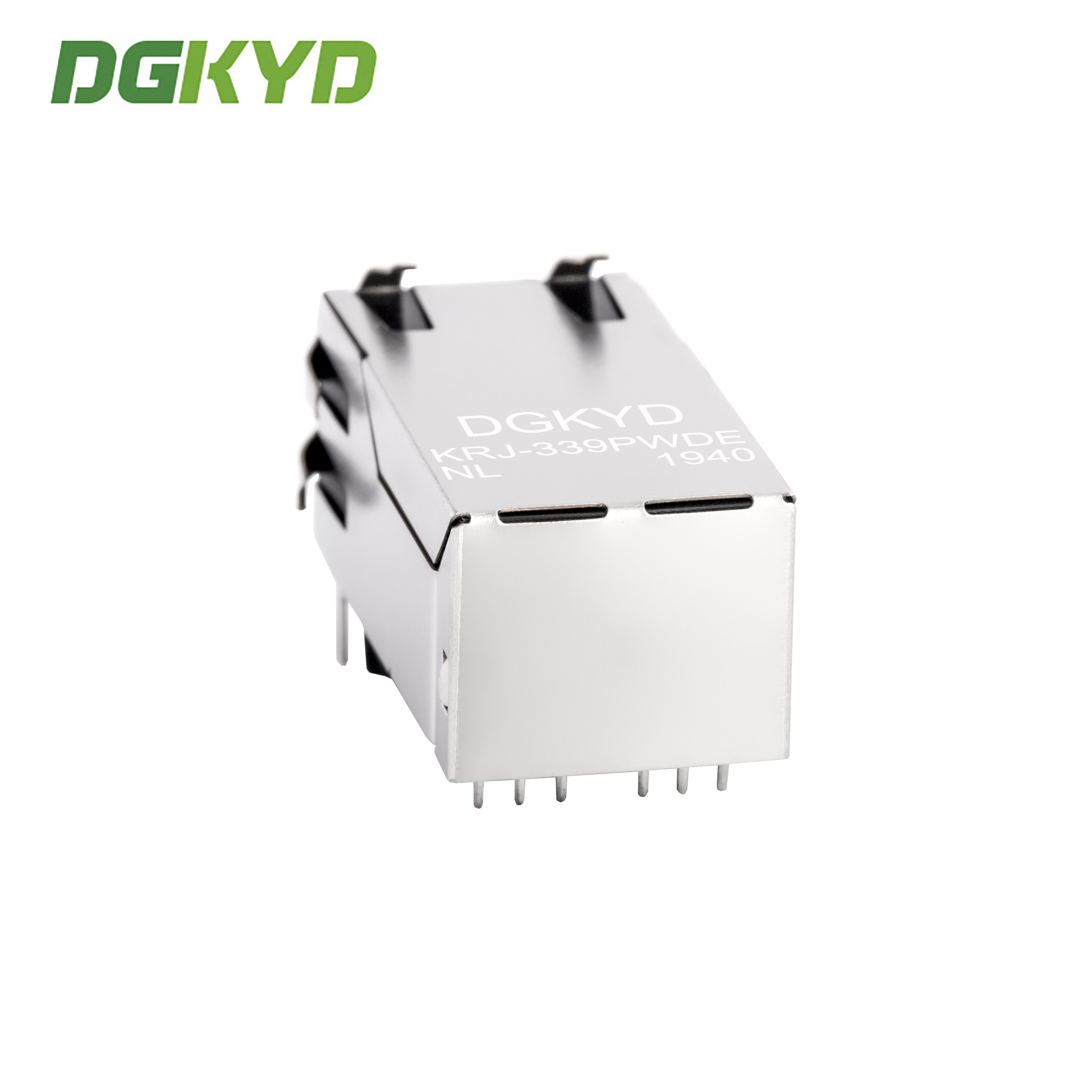

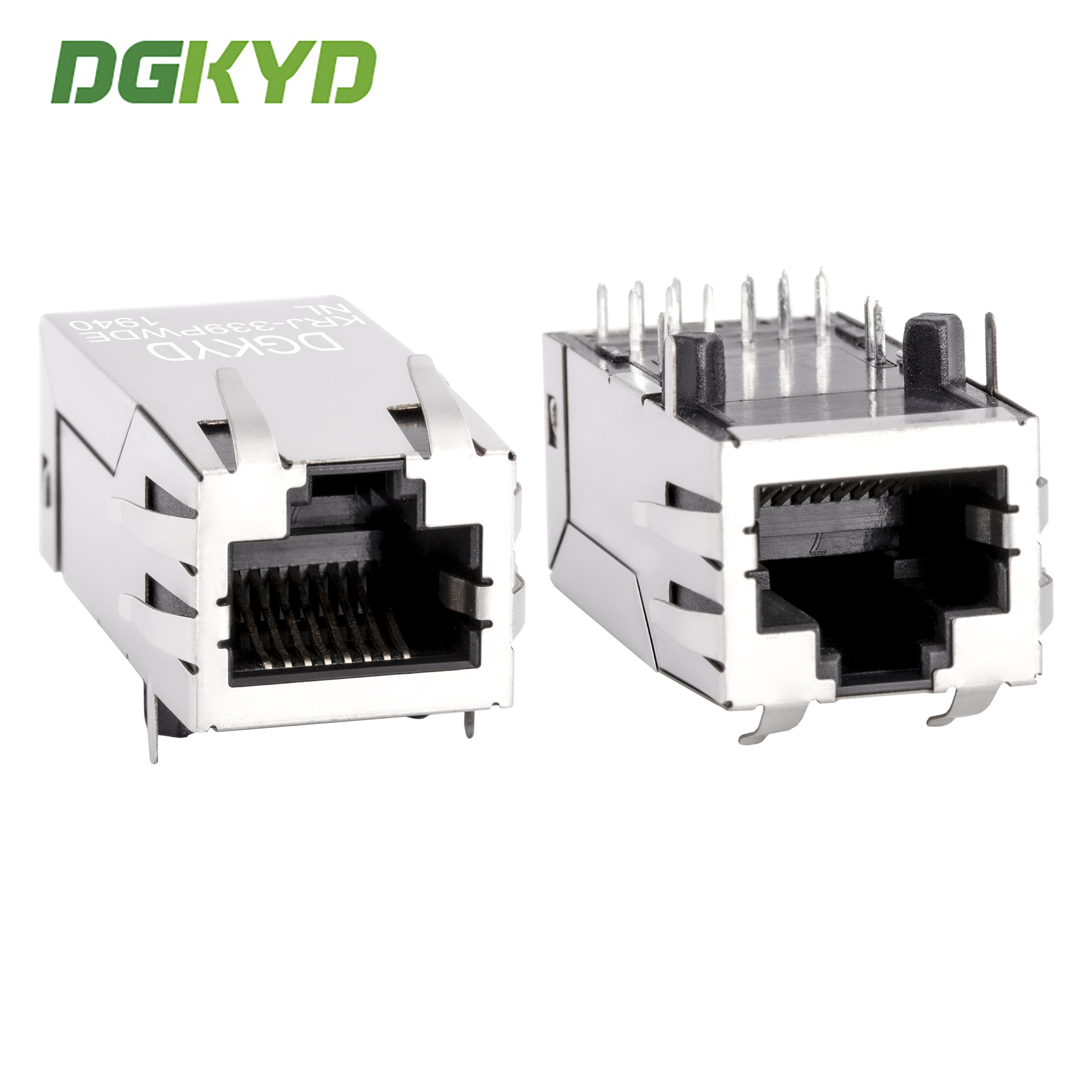

Product Images
Manufacturer Information
Product Features
Frequently Asked Questions
Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
