RJ11 interface connector 6P6C round needle 6U horizontal mesh port DGKYD56211166IWA1DY4

Số lượng đặt hàng tối thiểu :	1 mảnh	Giá bán :	Please contact us to get the latest price.
chi tiết đóng gói :	Khay trong thùng carton	Thời gian giao hàng :	10 ngày
Điều khoản thanh toán :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Khả năng cung cấp :	100K PC/ngày

Nguồn gốc:	Dongguan của Trung Quốc	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Số mô hình:	DGKYD56211166IWA1DY4

Thông tin chi tiết
loại:	Giắc cắm mô-đun	Loại thành phần:	Jack Jack
Kiểu:	RJ11	Từ tính:	Không có
Danh mục hiệu suất:	con mèo 3 5	Loại chèn:	Lối vào bên
phong cách gắn kết:	NHÚNG	OEM/ODM:	Đúng
Số lượng vị trí/danh bạ:	6P6c (RJ11, Ethernet)	Mạ vàng trên ghim tiếp xúc:	6U
Nhiệt độ bảo quản:	-40 ° C ~+85 ° C.	Nhiệt độ hoạt động:	-40 ° C ~+85 ° C.
Làm nổi bật:	RJ11 connector 6P6C round needle , RJ11 jack horizontal mesh port , RJ11 interface connector 6U

Mô tả sản phẩm

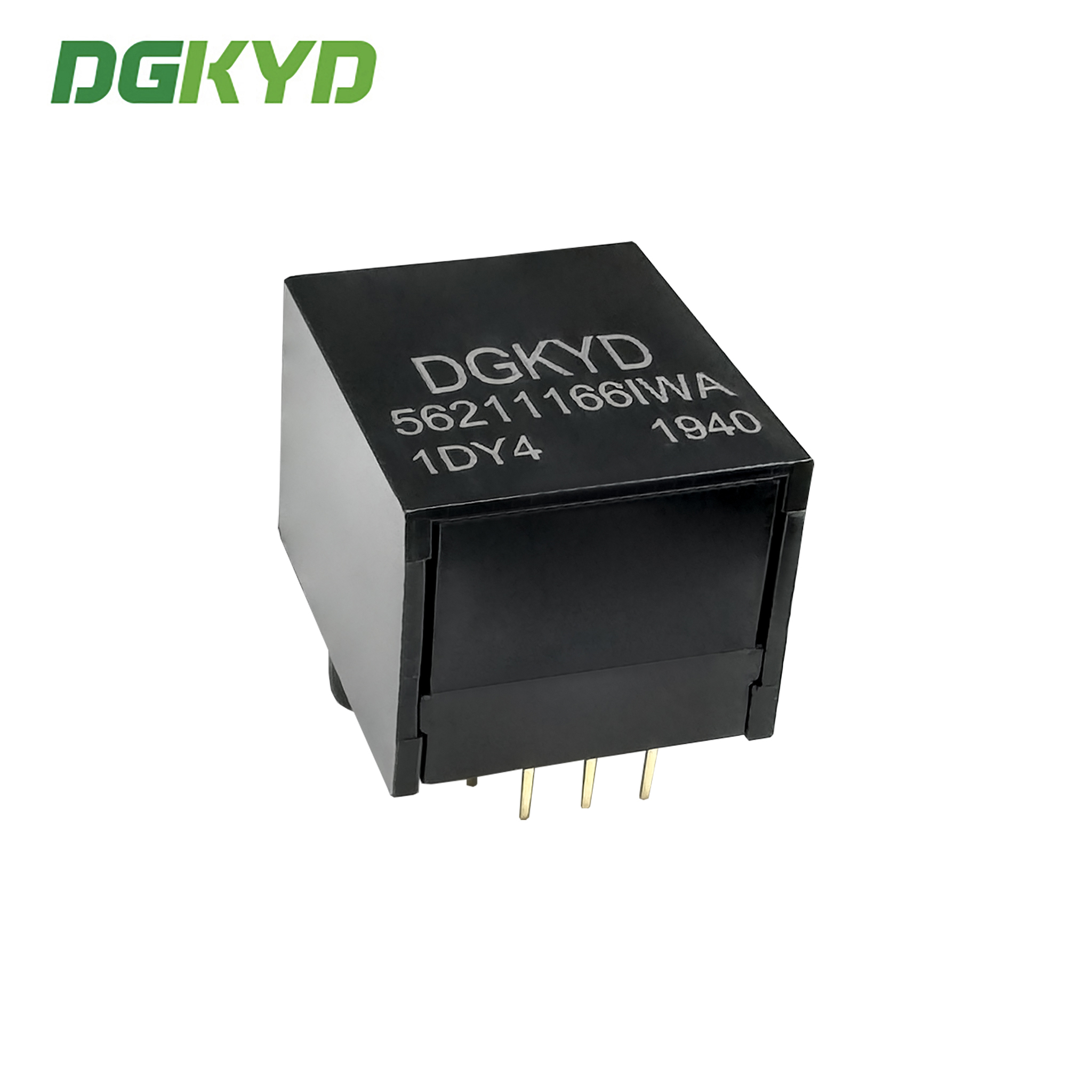

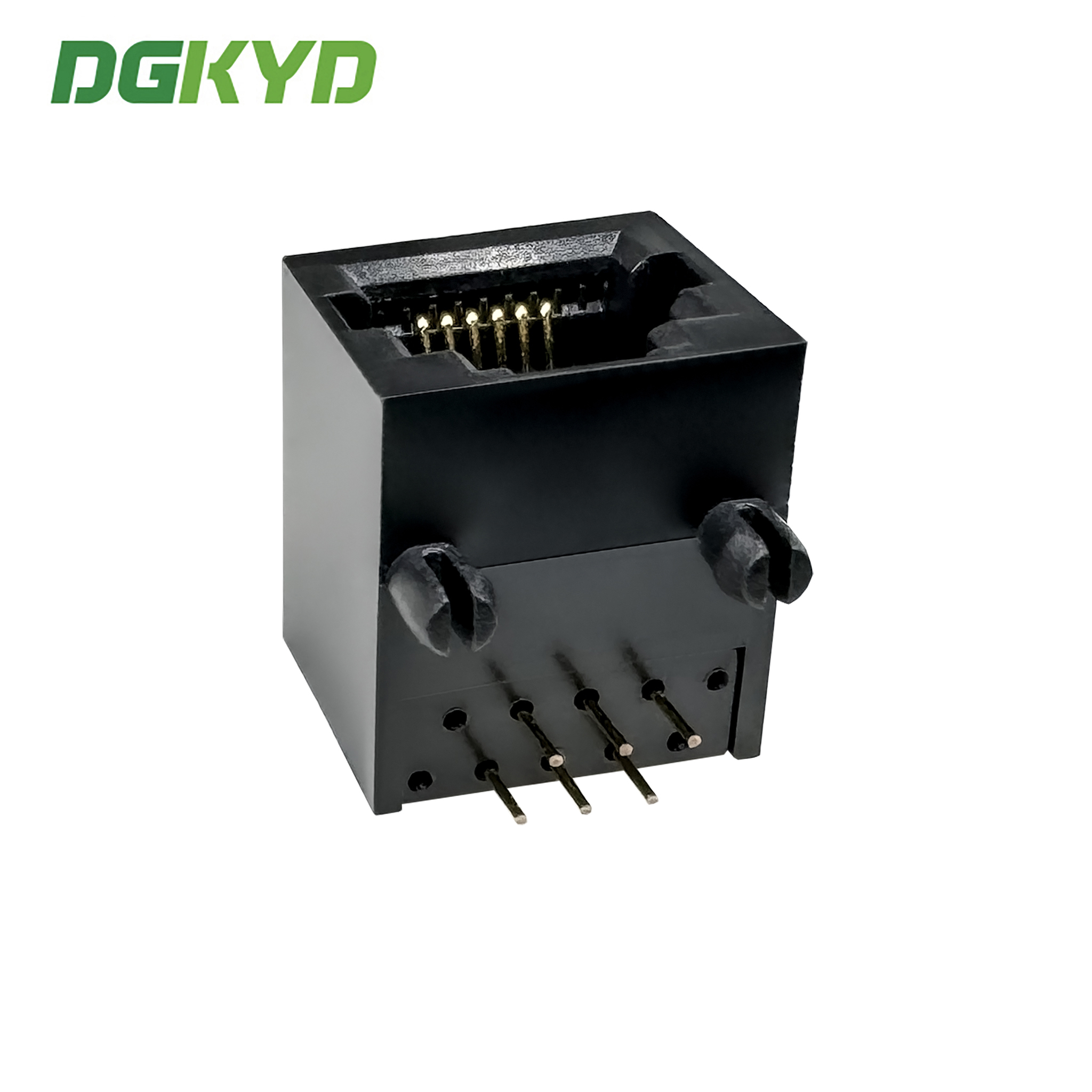

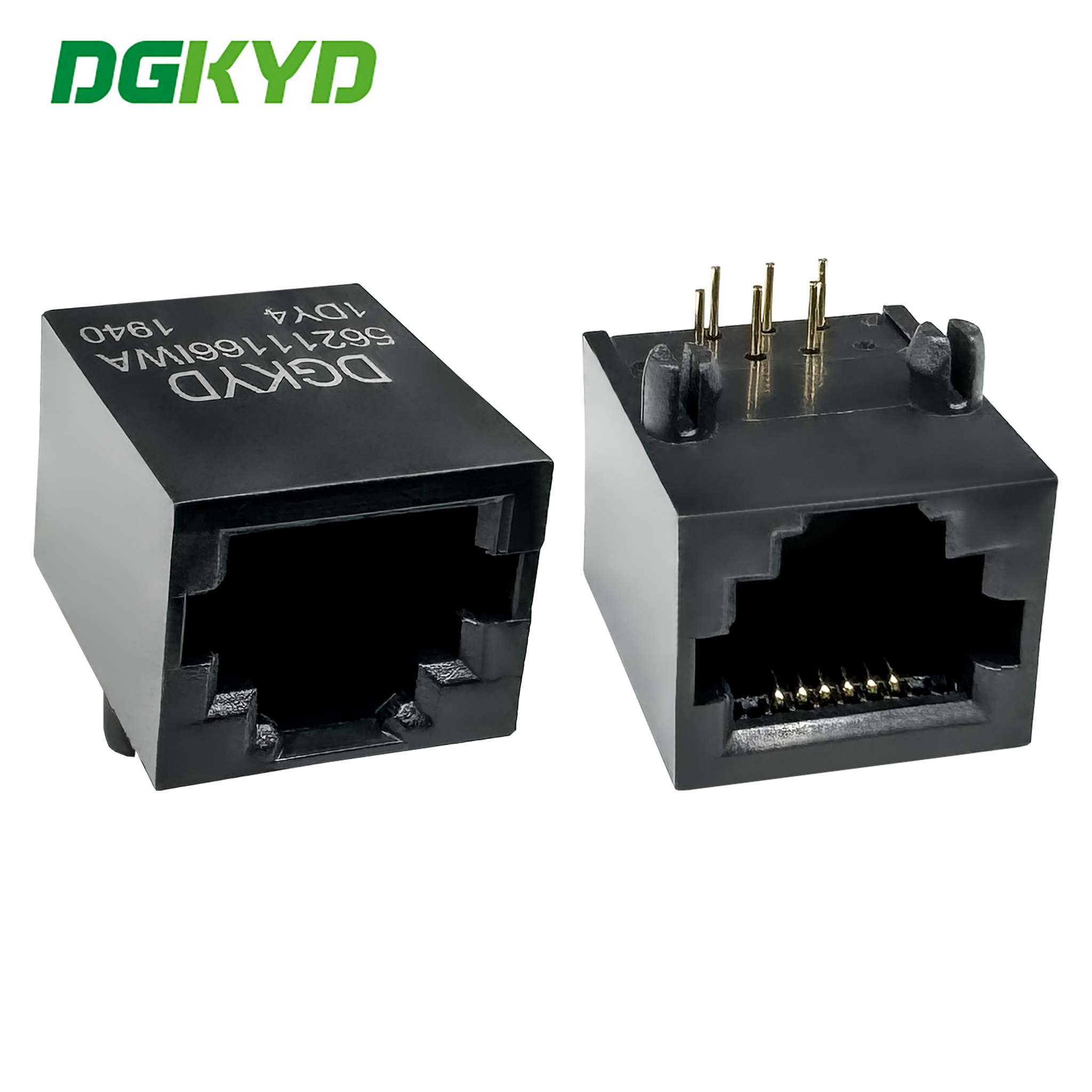

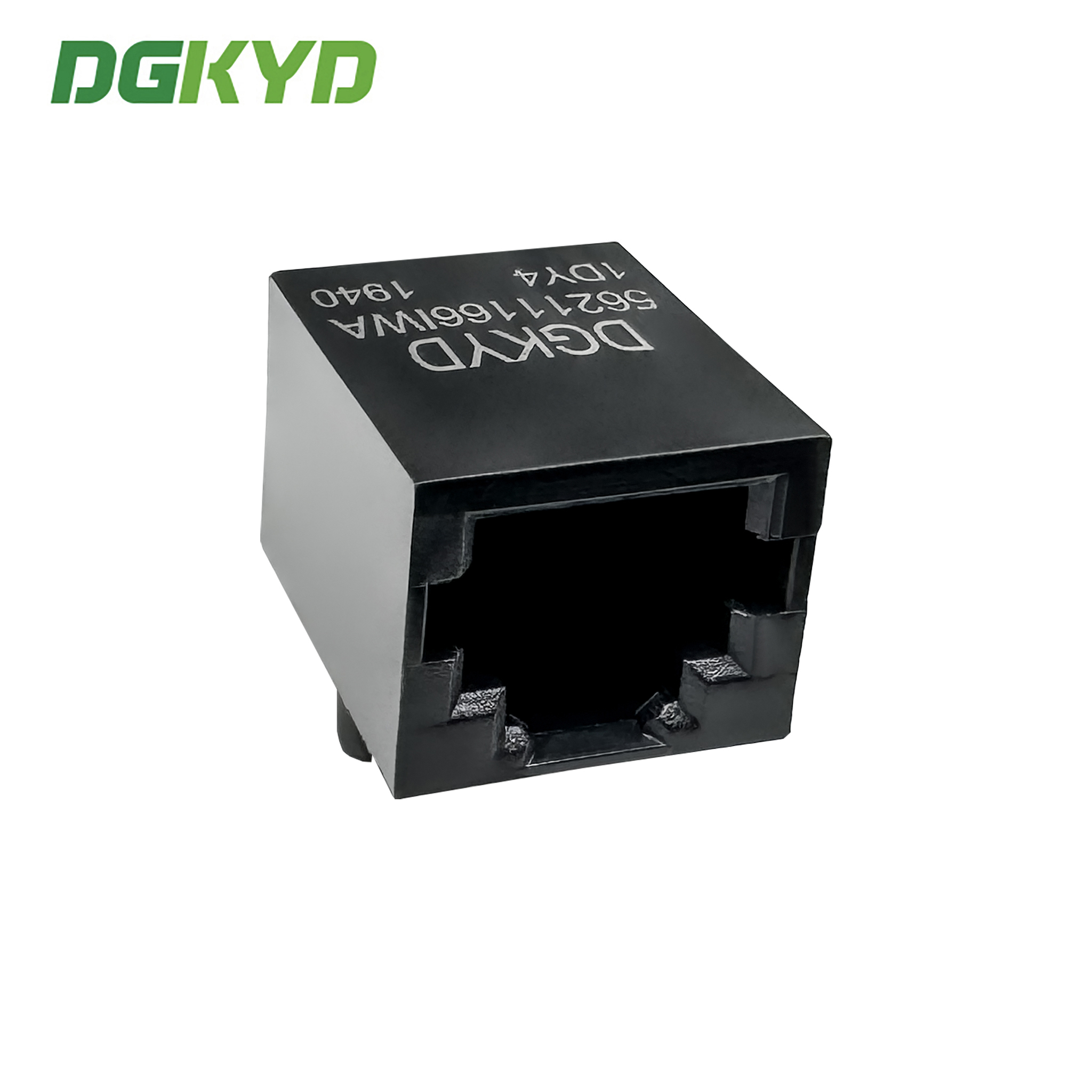

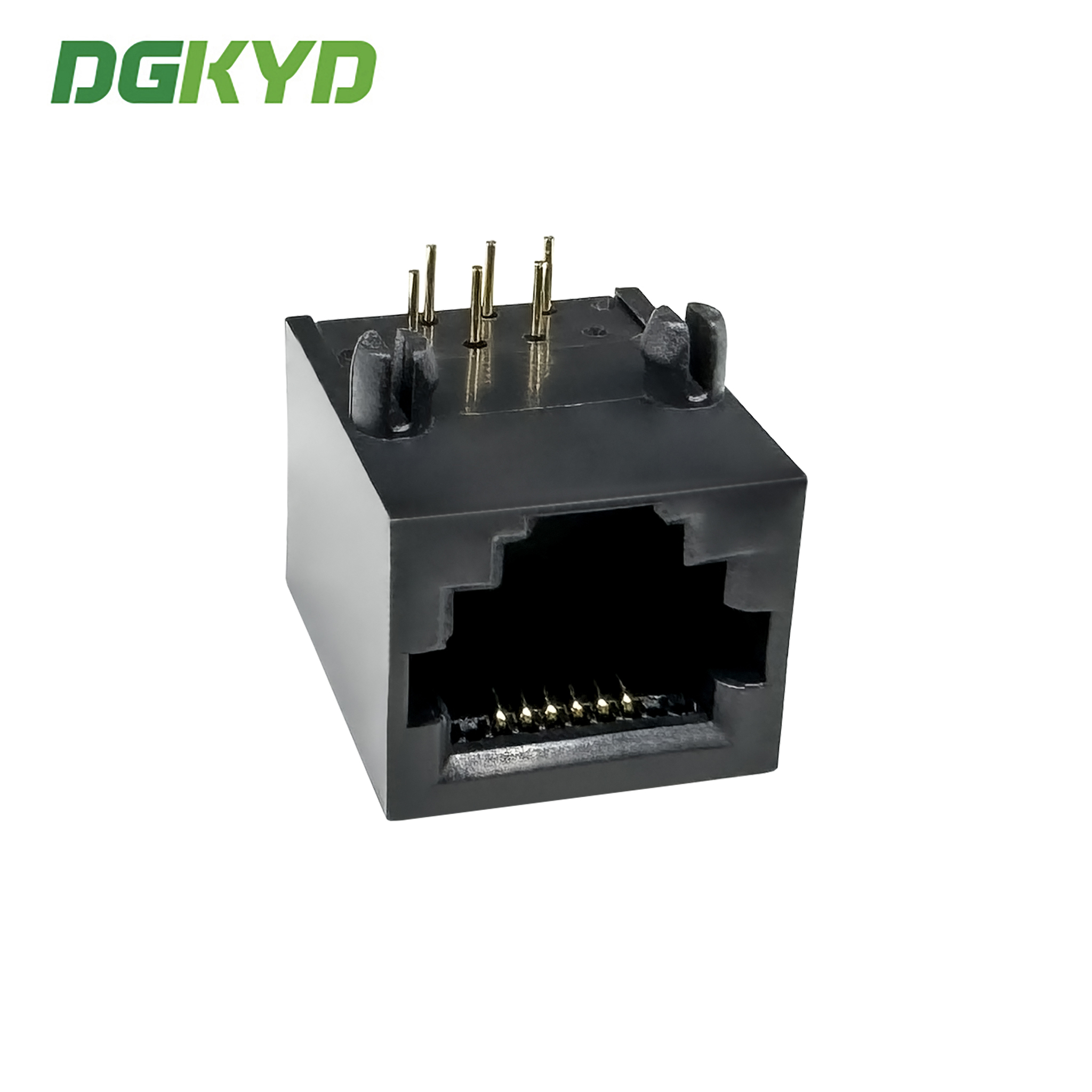

RJ11 Interface Connector 6P6C Round Needle 6U Horizontal Mesh Port DGKYD56211166IWA1DY4

RJ11 interface connector 6P6C round needle 6U horizontal mesh port DGKYD56211166IWA1DY4

Technical Specifications

Part Number	DGKYD56211166IWA1DY4
Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ11
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-DOWN
Filter	Without Filter
LED Option	Without LED
LED Color	No
Panel Stops	With Panel Stops
Shielded	Without metal shield
Applies To	Printed Circuit Board
Port Configuration	Single Ports
Number of Positions	6
Jack Configuration	1X1
Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Company Information

Product Features

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
