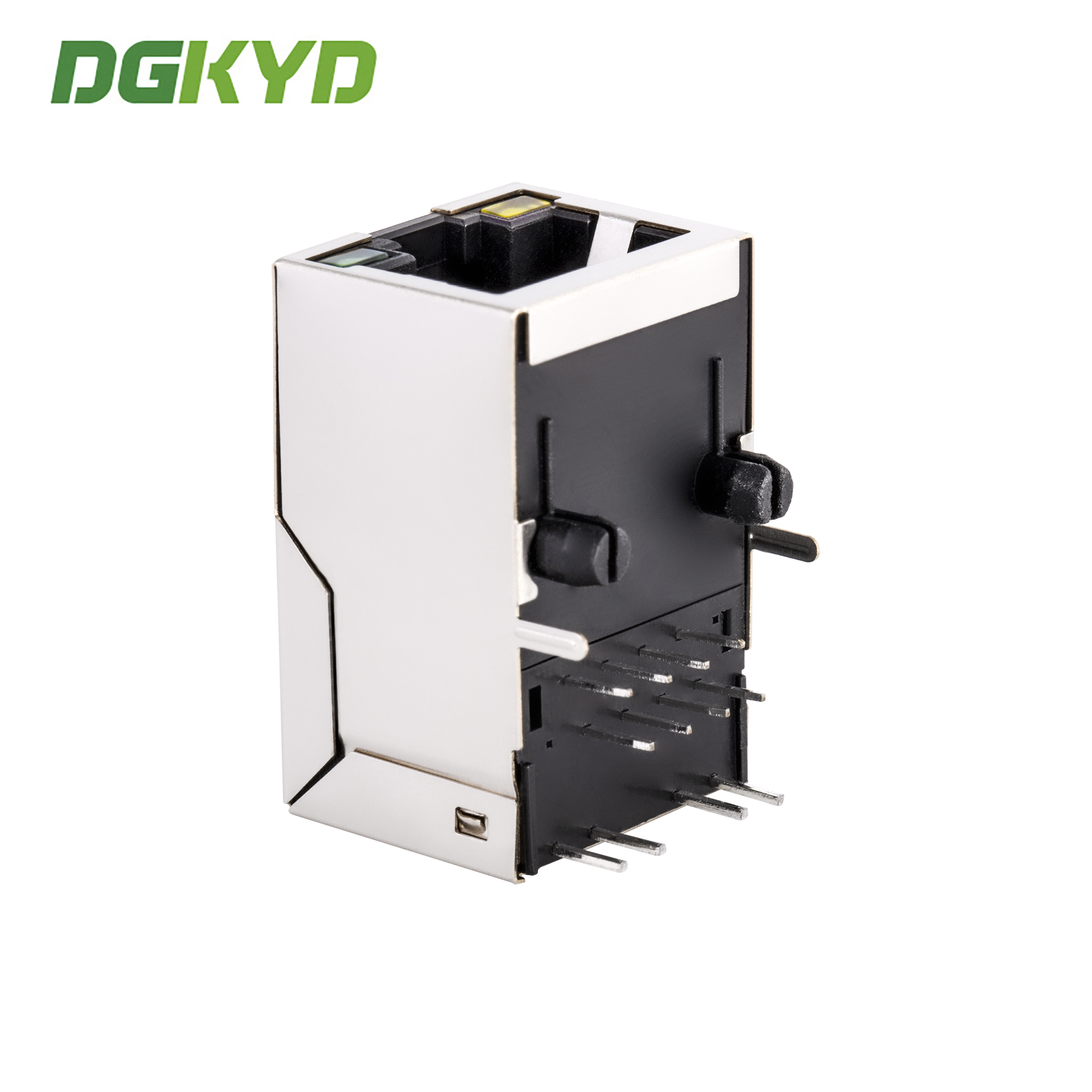

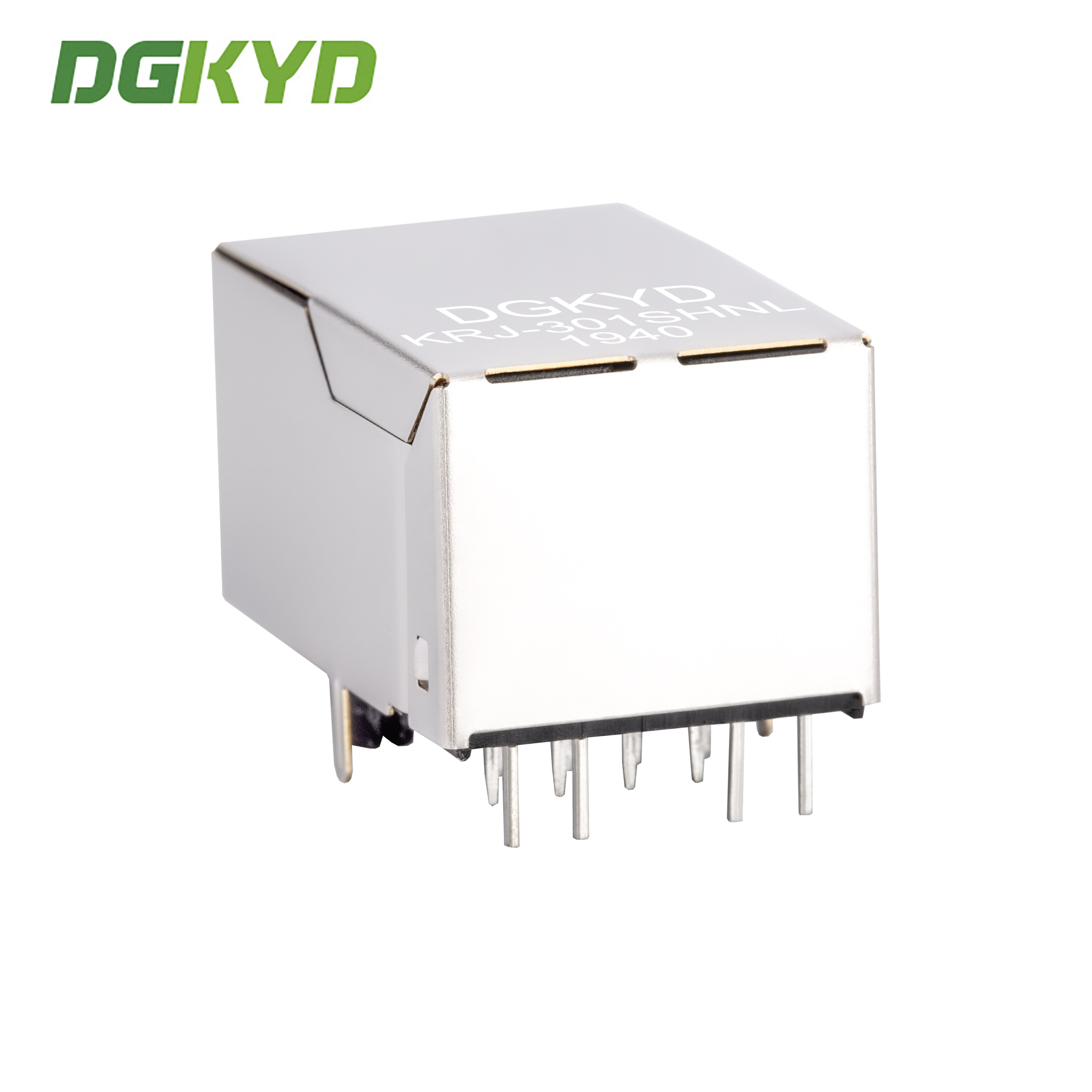

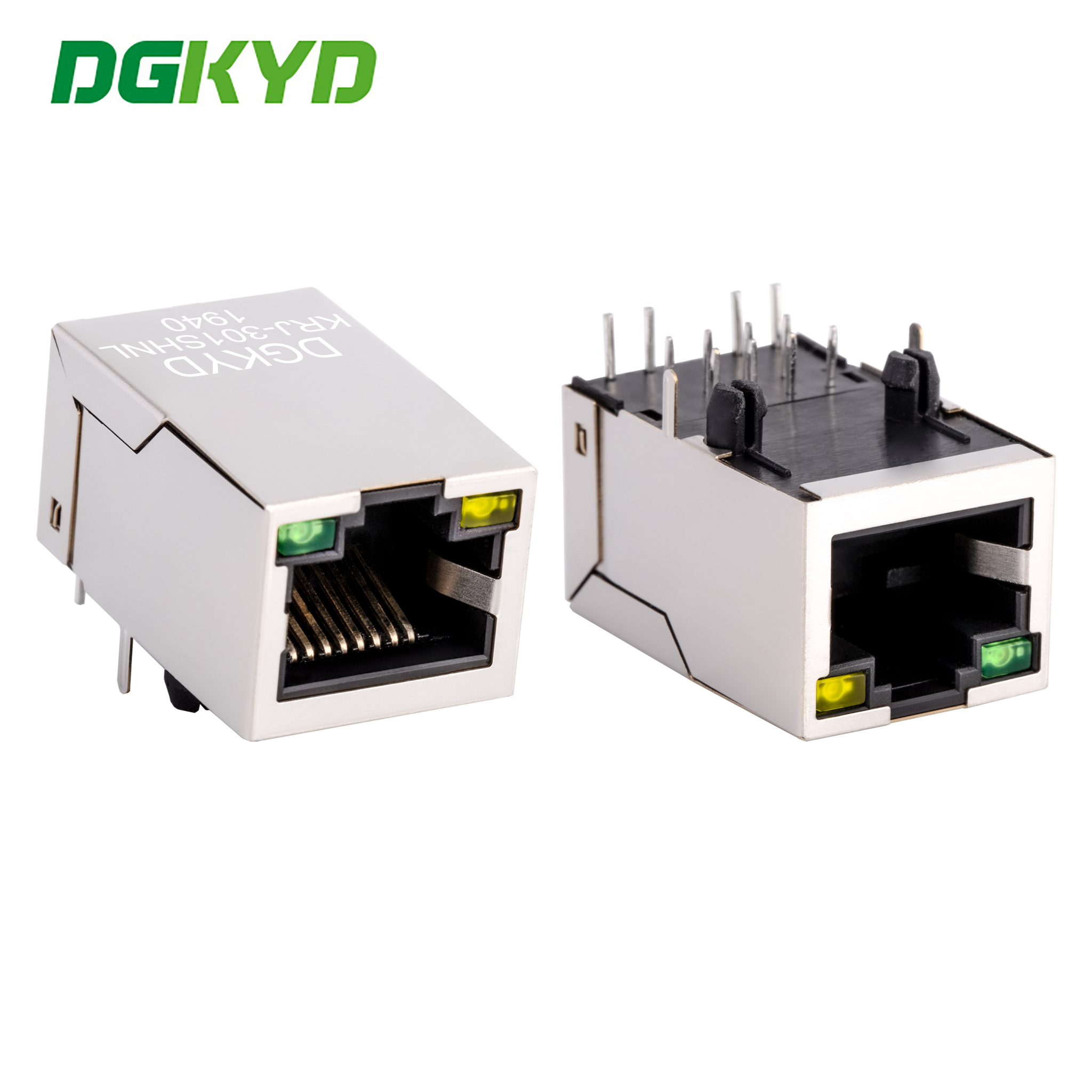

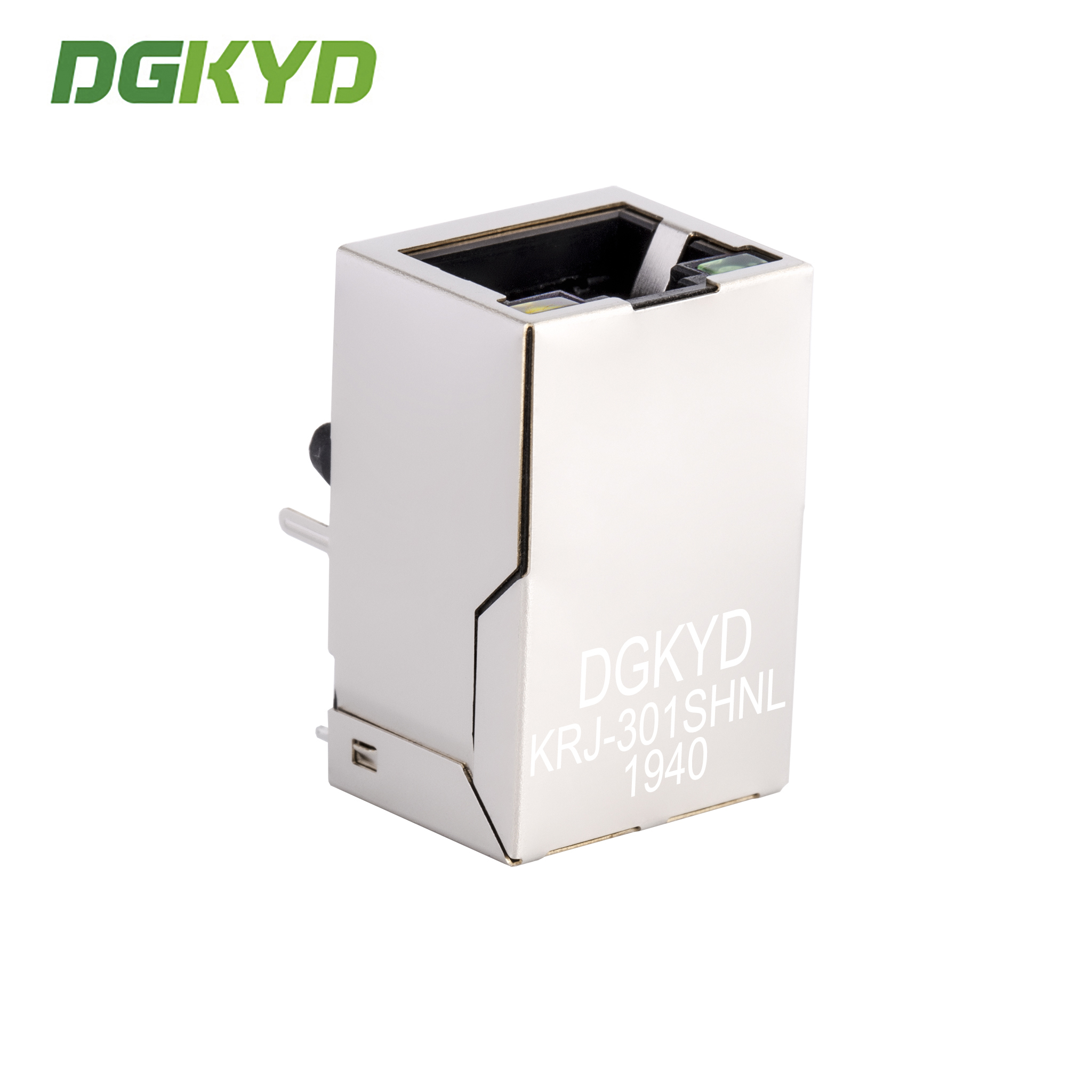

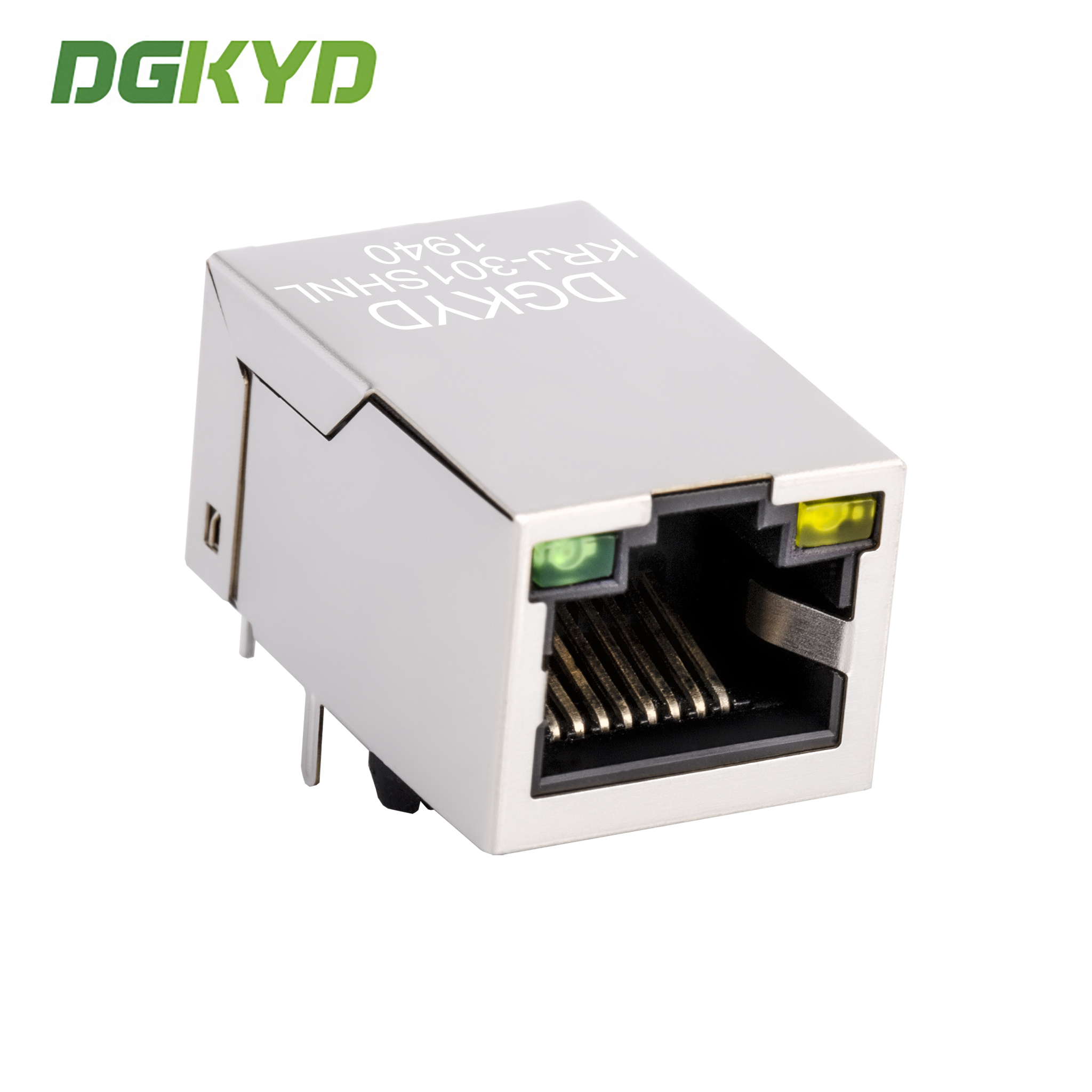

KRJ-301SHNL Single Cell RJ45 Transformer 100Mbps Integrated Ethernet Filter Crystal Head Ethernet Cable Interface

Liên hệ với bây giờ

KRJ-301SHNL Single Cell RJ45 Transformer 100Mbps Integrated Ethernet Filter Crystal Head Ethernet Cable Interface

Số lượng đặt hàng tối thiểu :	1 mảnh	Giá bán :	Please contact us to get the latest price.
chi tiết đóng gói :	Khay trong thùng carton	Thời gian giao hàng :	10 ngày
Điều khoản thanh toán :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Khả năng cung cấp :	100K PC/ngày

Nguồn gốc:	Dongguan của Trung Quốc	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Số mô hình:	KRJ-301SHNL

Thông tin chi tiết
Nhà ở:	PBT Đen (UL94V-0)	Số cổng:	1x1
Kiểu:	RJ45 Nữ Jack	Tên sản phẩm:	RJ45 với máy biến áp
Lá chắn RJ45:	Đúng	dẫn đến:	Xanh/Vàng
Số lượng vị trí/danh bạ:	8P8c (RJ45, Ethernet)	Mạ vàng trên ghim tiếp xúc:	6U
Nhiệt độ hoạt động:	-40 ° C ~+85 ° C.	Nhiệt độ lưu trữ:	- 40 ℃ ~ 85 ℃
Làm nổi bật:	RJ45 transformer Ethernet filter , single cell RJ45 crystal head , 100Mbps Ethernet cable interface

Mô tả sản phẩm

KRJ-301SHNL Single Cell RJ45 Transformer 100Mbps Integrated Ethernet Filter Crystal Head Ethernet Cable Interface

Part Number	KRJ-301SHNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	1X1 Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

LED Specifications

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Product Features

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: -40℃ to 85℃

Storage temperature: -40℃ to 85℃

Lead free soldering: wave soldering height up to 265℃

Manufacturer Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer

Delivery time: on time delivery, around two weeks

Customization options available for LED indicator lights, shielding, coil ratio, magnetic circuits, contact plating, and housing materials

Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
