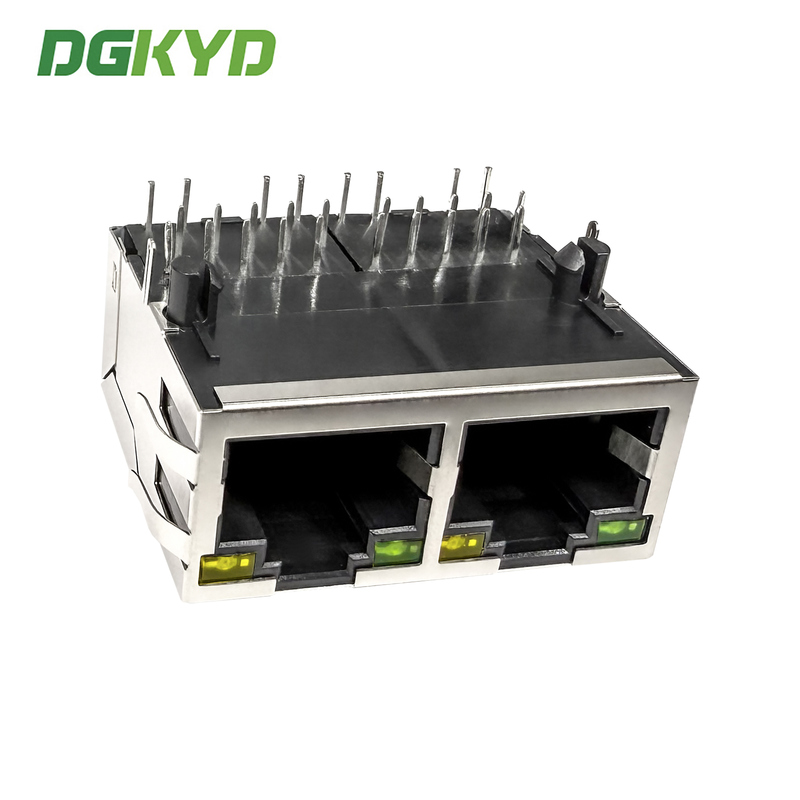

RJ45 network port connector with built-in 2.5G integrated transformer DGKYD312Q340DB2A4DN2

Số lượng đặt hàng tối thiểu :	1 mảnh	Giá bán :	Please contact us to get the latest price.
chi tiết đóng gói :	Khay trong thùng carton	Thời gian giao hàng :	10 ngày
Điều khoản thanh toán :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Khả năng cung cấp :	100K PC/ngày

Nguồn gốc:	Dongguan của Trung Quốc	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Số mô hình:	DGKYD312Q340DB2A4DN2

Thông tin chi tiết
Tên sản phẩm:	RJ45 Giắc cắm mô -đun	Giới tính:	thùng RJ45
Kiểu:	Giắc cắm đa năng rj45	Ứng dụng:	sợi quang, camera IP, DVR, DSL, Modem, WiFi, v.v.
Tính năng:	Cổng mạng RJ45 được bảo vệ	OEM/ODM:	Đúng
Mạ vàng trên ghim tiếp xúc:	6U	Nhiệt độ hoạt động:	-40 ° C ~+85 ° C.
Nhiệt độ lưu trữ:	-40 ° C ~+85 ° C.	Số lượng vị trí/danh bạ:	10P8C (RJ45, Ethernet)
Khiên:	mạ niken bằng đồng phosphor
Làm nổi bật:	RJ45 2.5G network port connector , RJ45 connector with integrated transformer , 2.5G RJ45 port with warranty

Mô tả sản phẩm

RJ45 Network Port Connector with Built-in 2.5G Integrated Transformer DGKYD312Q340DB2A4DN2

Product Description

RJ45 network port connector with built-in 2.5G integrated transformer DGKYD312Q340DB2A4DN2

Product Specification Document

Parameters

Part Number	DGKYD312Q340DB2A4DN2	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
