16.9MM height Cat5e Rj45 Lan Jack , vertical RJ45 modular jack with magnetic DGKYD511B083AB3A8D

Số lượng đặt hàng tối thiểu :	1 mảnh	Giá bán :	Please contact us to get the latest price.
chi tiết đóng gói :	Khay trong thùng carton	Thời gian giao hàng :	10 ngày
Điều khoản thanh toán :	T/T, D/P, D/A, L/C, Western Union, Moneygram	Khả năng cung cấp :	100K PC/ngày

Nguồn gốc:	Dongguan của Trung Quốc	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Số mô hình:	DGKYD511B083AB3A8D

Thông tin chi tiết
Loại giao diện Jack & plug mô -đun:	RJ45 có nam châm	Phong cách kết nối:	RJ45 Nữ Jack
Đã che chắn:	Kim loại được che chắn	Tốc độ:	CAT5e
Chỉ báo trạng thái:	DẪN ĐẾN	Định hướng chốt:	Mục nhập hàng đầu
Số lượng vị trí/danh bạ:	8P8c (RJ45, Ethernet)	Mạ vàng trên ghim tiếp xúc:	6U
Nhiệt độ lưu trữ:	-40 ° C ~+85 ° C.	Nhiệt độ hoạt động:	-40 ° C ~+85 ° C.
Làm nổi bật:	vertical RJ45 modular jack , Cat5e RJ45 LAN jack , magnetic RJ45 LAN connector

Mô tả sản phẩm

16.9MM Height Cat5e RJ45 LAN Jack, Vertical RJ45 Modular Jack with Magnetic DGKYD511B083AB3A8D

Product Description

16.9MM height Cat5e RJ45 LAN Jack, vertical RJ45 modular jack with magnetic DGKYD511B083AB3A8D

Parameters

Part Number	DGKYD511B083AB3A8D	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	With Filter	LED Option	With LED
LED Color	Green/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

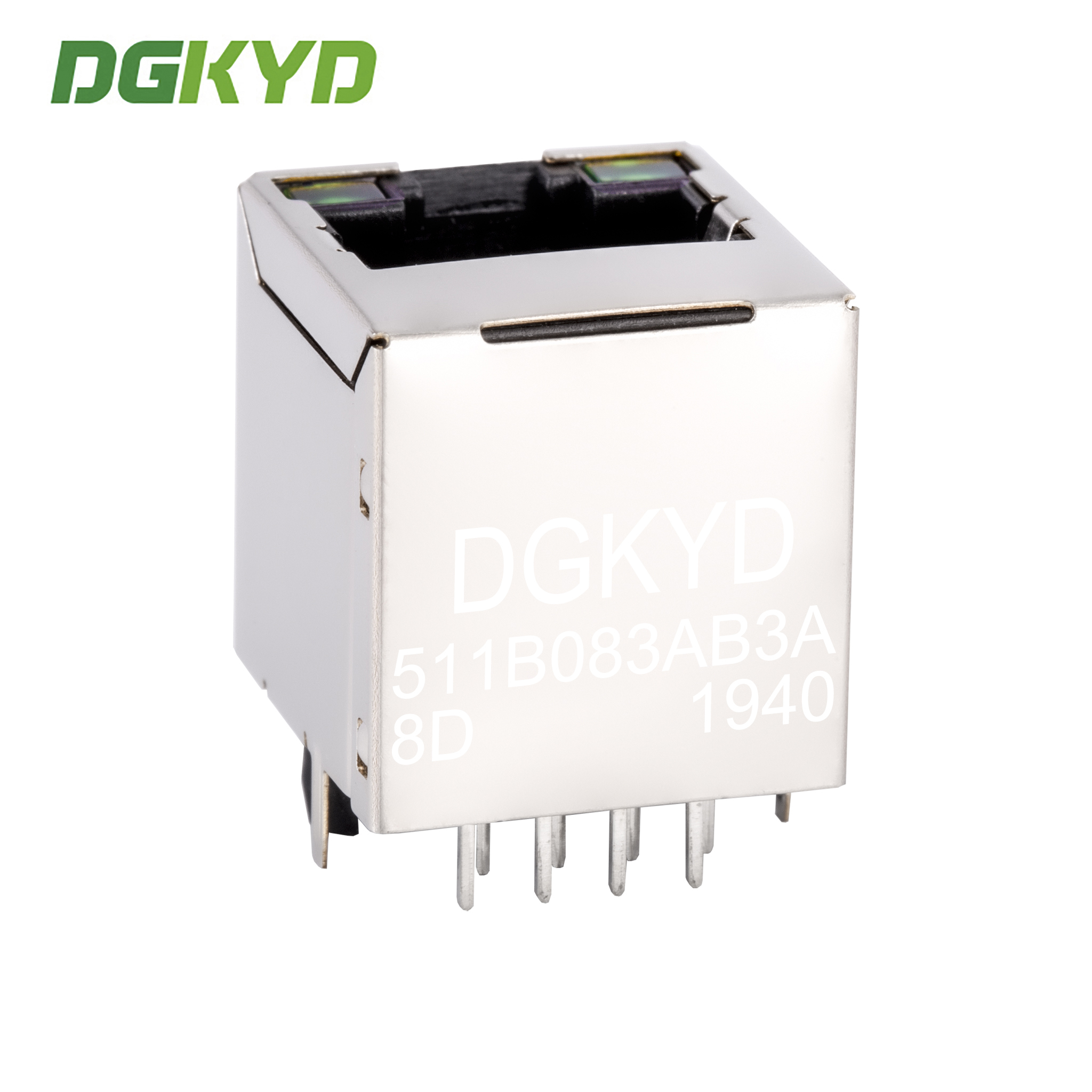

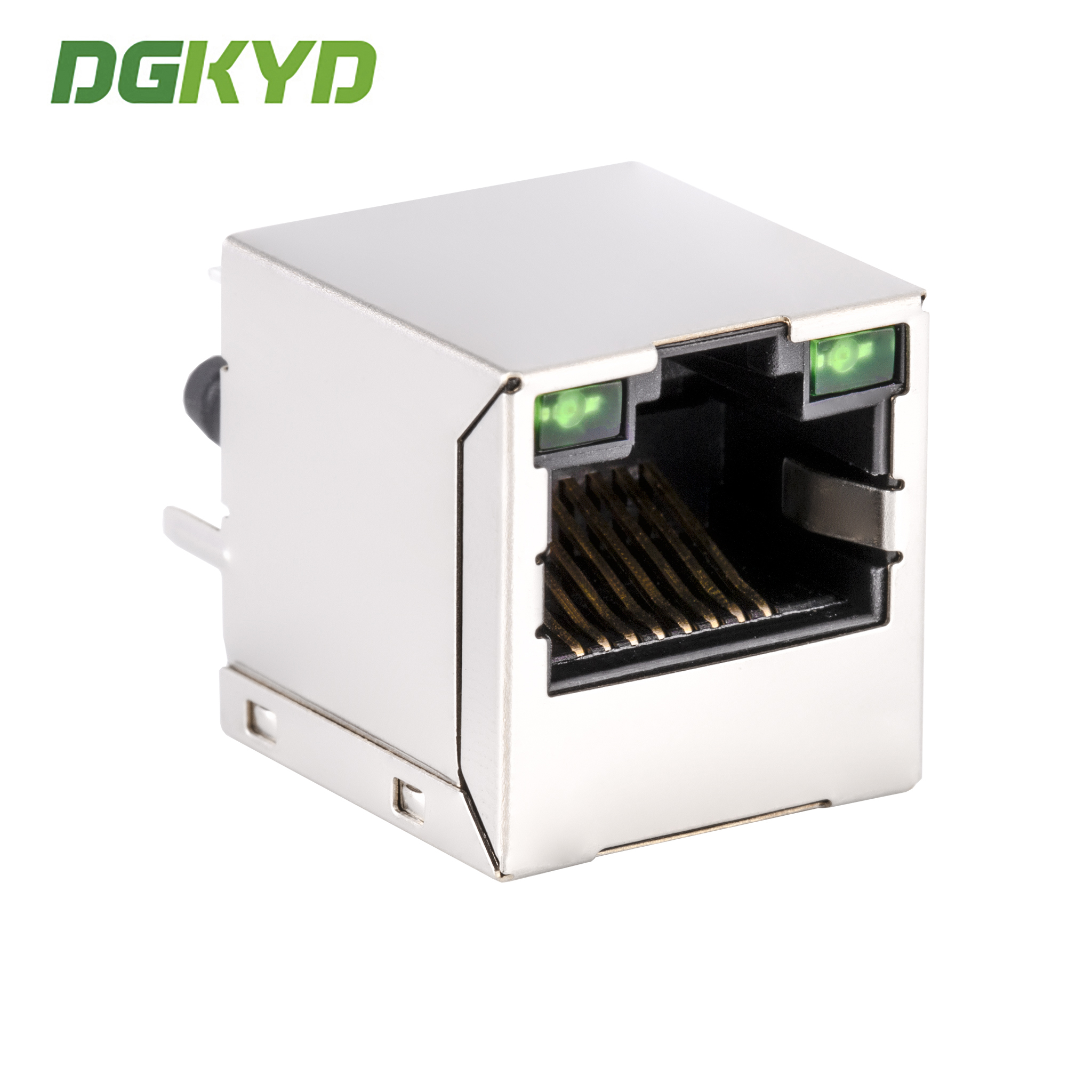

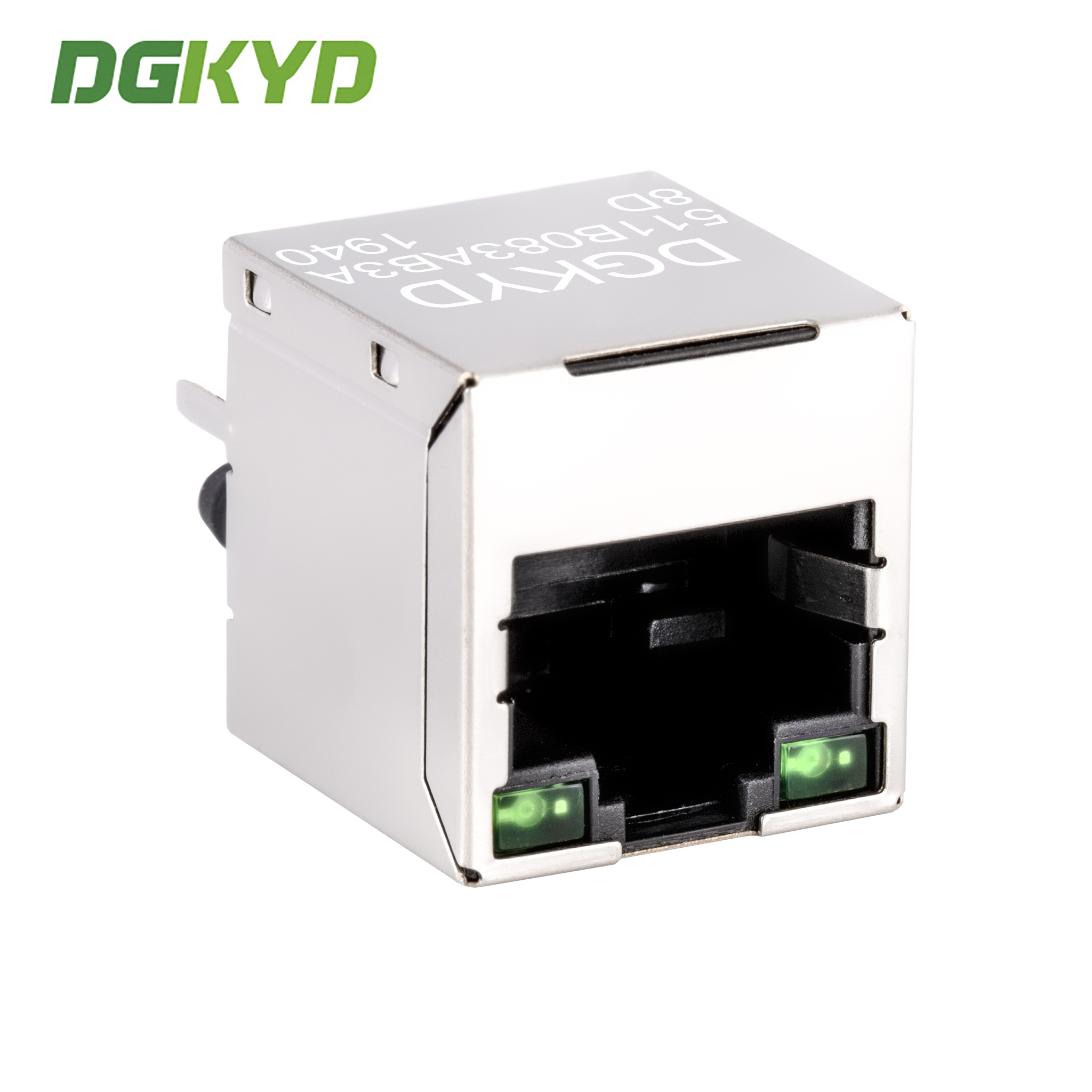

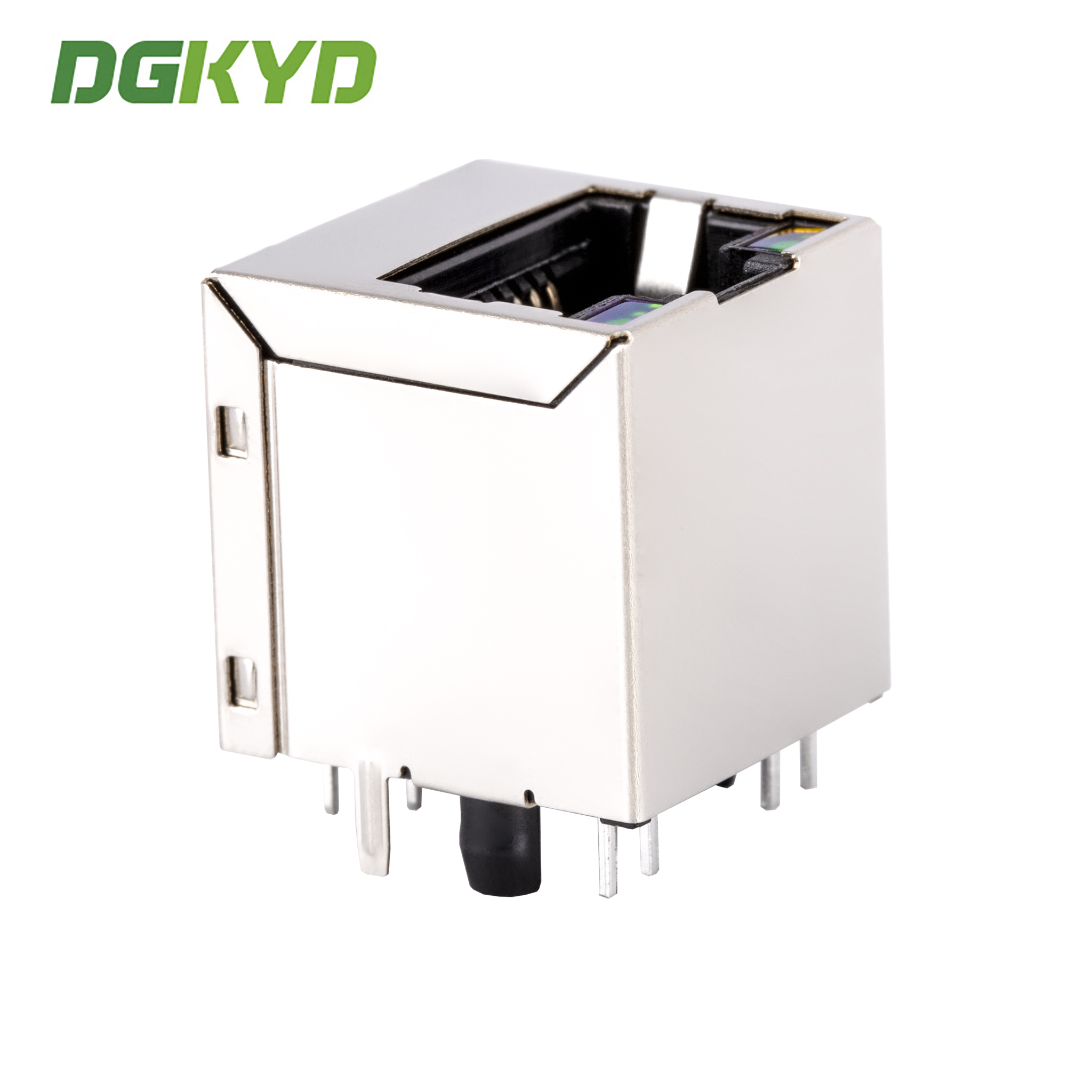

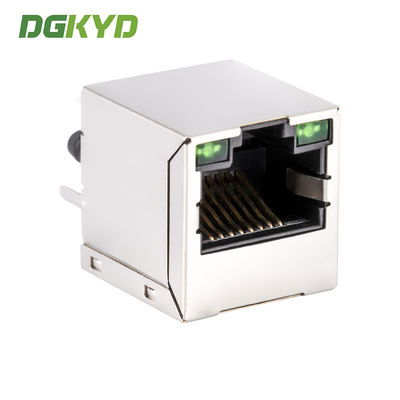

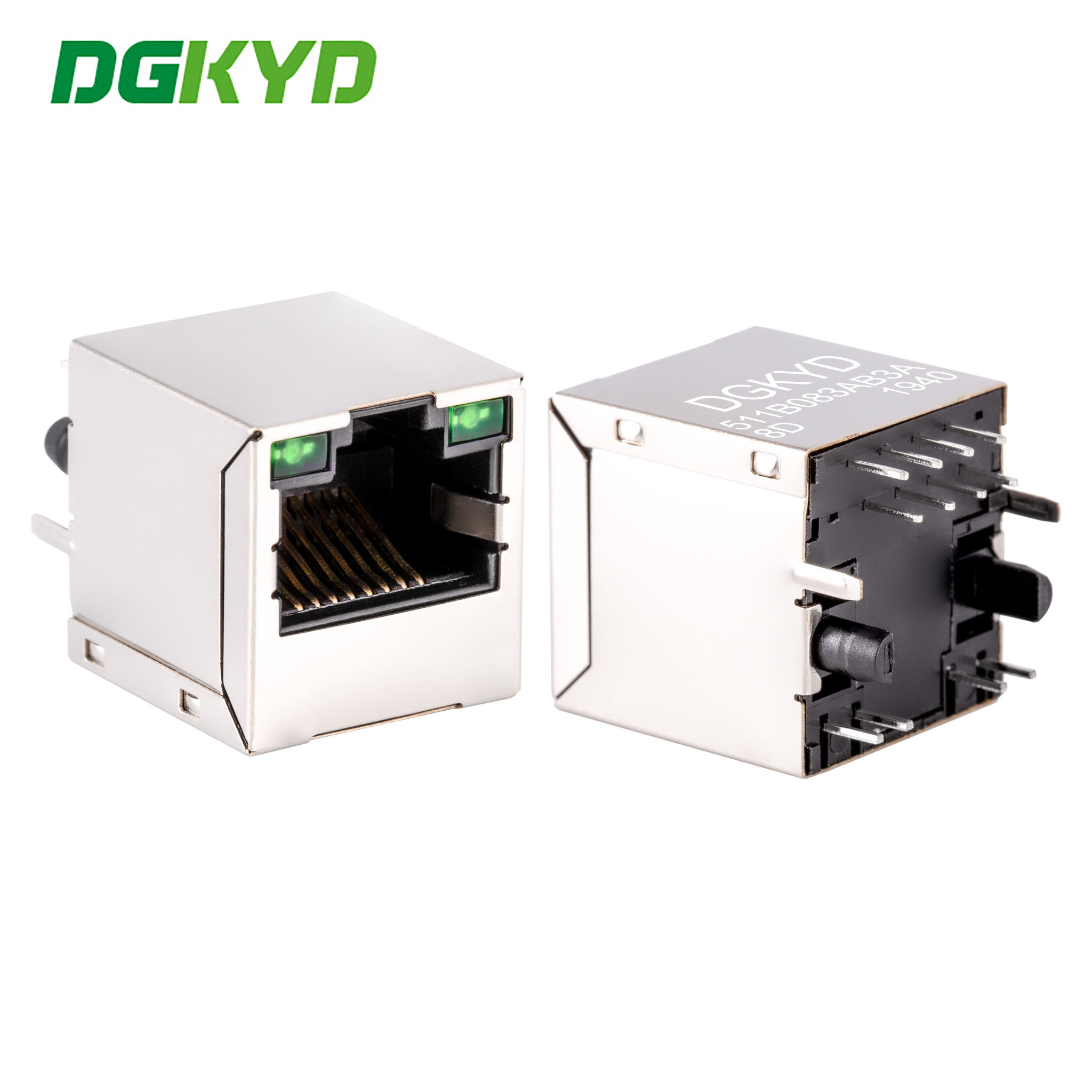

Product Images

Company Information

Product Features

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturing Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicators, shielding, coil ratio, magnetics circuit, contact plating, and housing material
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
