Shield 2X2 Double Deck 4 Port 1000M Cat6 RJ45 Modular Jack With Ethernet Filter DGKYD22Q077DB2A4D068

Minimum Order Quantity :	1 piece	Giá bán :	Please contact us to get the latest price.
Packaging Details :	Tray in Carton	Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Supply Ability :	100K pcs/day

Place of Origin:	DongGuan of China	Hàng hiệu:	DGKYD
Chứng nhận:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Model Number:	DGKYD22Q077DB2A4D068

Thông tin chi tiết
Product Name:	RJ45 Modular Jack	Gender:	rj45 receptacle
Application:	fiber optic,ip camera ,dvr,dsl,modem,wifi etc	Feature:	Shielded RJ45 network port
OEM/ODM:	Yes	Type:	Multi port rj45 magnetic jack
Number of Positions/Contacts:	8p10c (RJ45, Ethernet)	Gold plating on contact pins:	6U
Operating temperature:	-40°C~+85°C	Storage temperature:	-40°C~+85°C
Làm nổi bật:	Cat6 RJ45 modular jack , 2x2 double deck Ethernet filter , 4 port 1000M RJ45 jack

Mô tả sản phẩm

Shield 2X2 Double Deck 4 Port 1000M Cat6 RJ45 Modular Jack With Ethernet Filter DGKYD22Q077DB2A4D068

Product Attributes

Attribute	Value
Product Name	RJ45 Modular Jack
Gender	RJ45 receptacle
Application	Fiber optic, IP camera, DVR, DSL, modem, WiFi etc
Feature	Shielded RJ45 network port
OEM/ODM	Yes
Type	Multi port RJ45 magnetic jack
Number of Positions/Contacts	8p10c (RJ45, Ethernet)
Gold plating on contact pins	6U
Operating temperature	-40°C~+85°C
Storage temperature	-40°C~+85°C

Product Specifications

Part Number	DGKYD22Q077DB2A4D068	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP/DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	2X2 Ports	Number of Positions	10
Jack Configuration	2X2	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Documentation

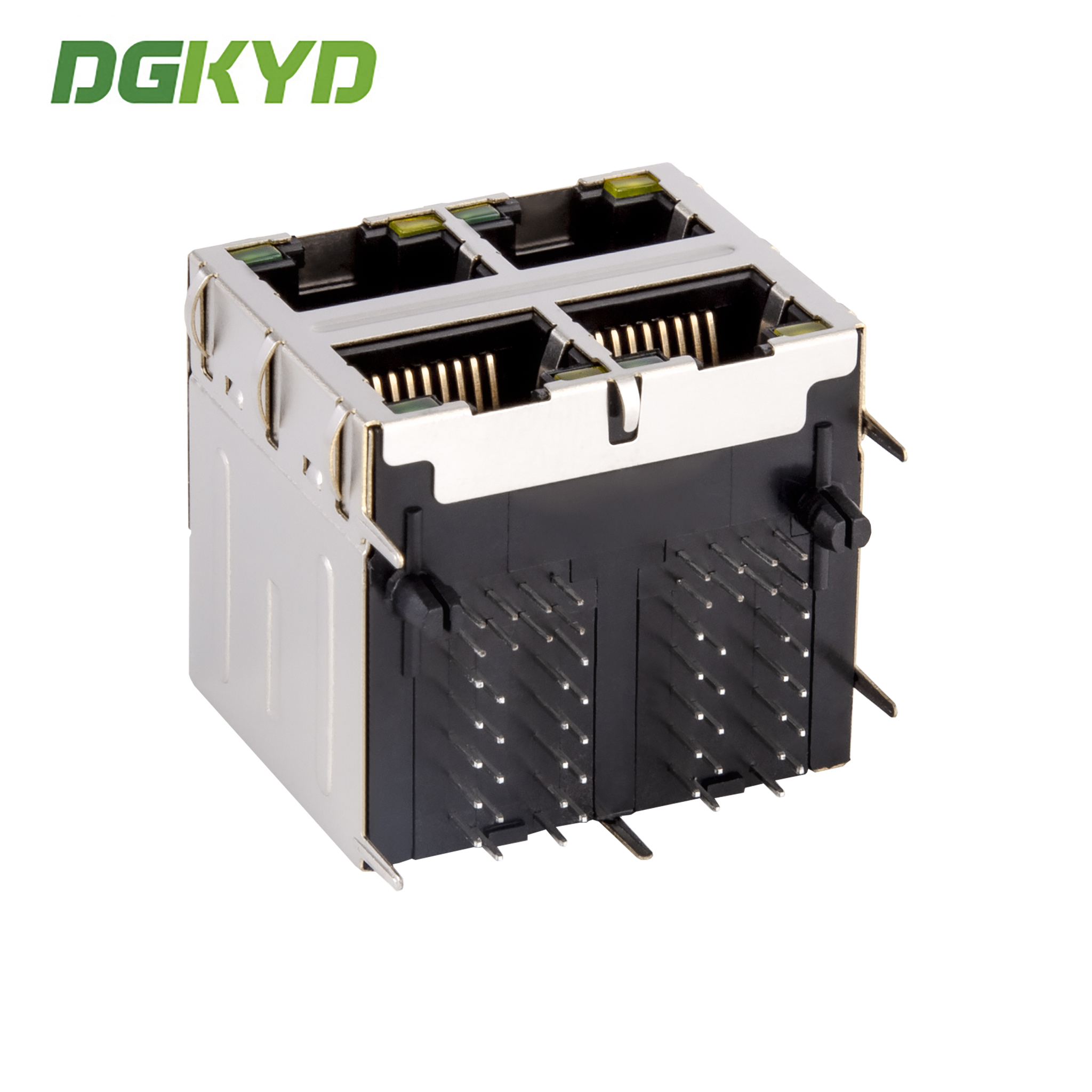

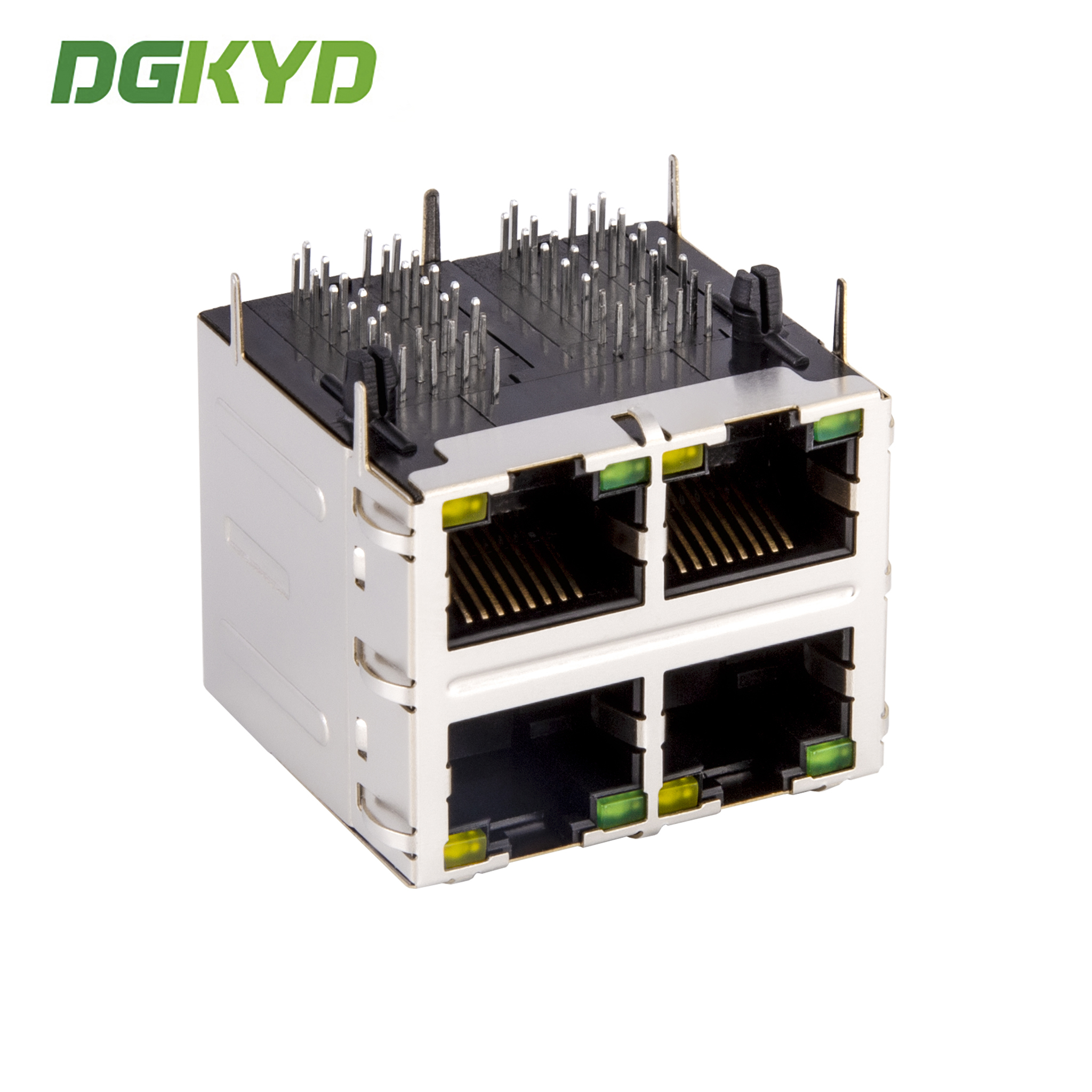

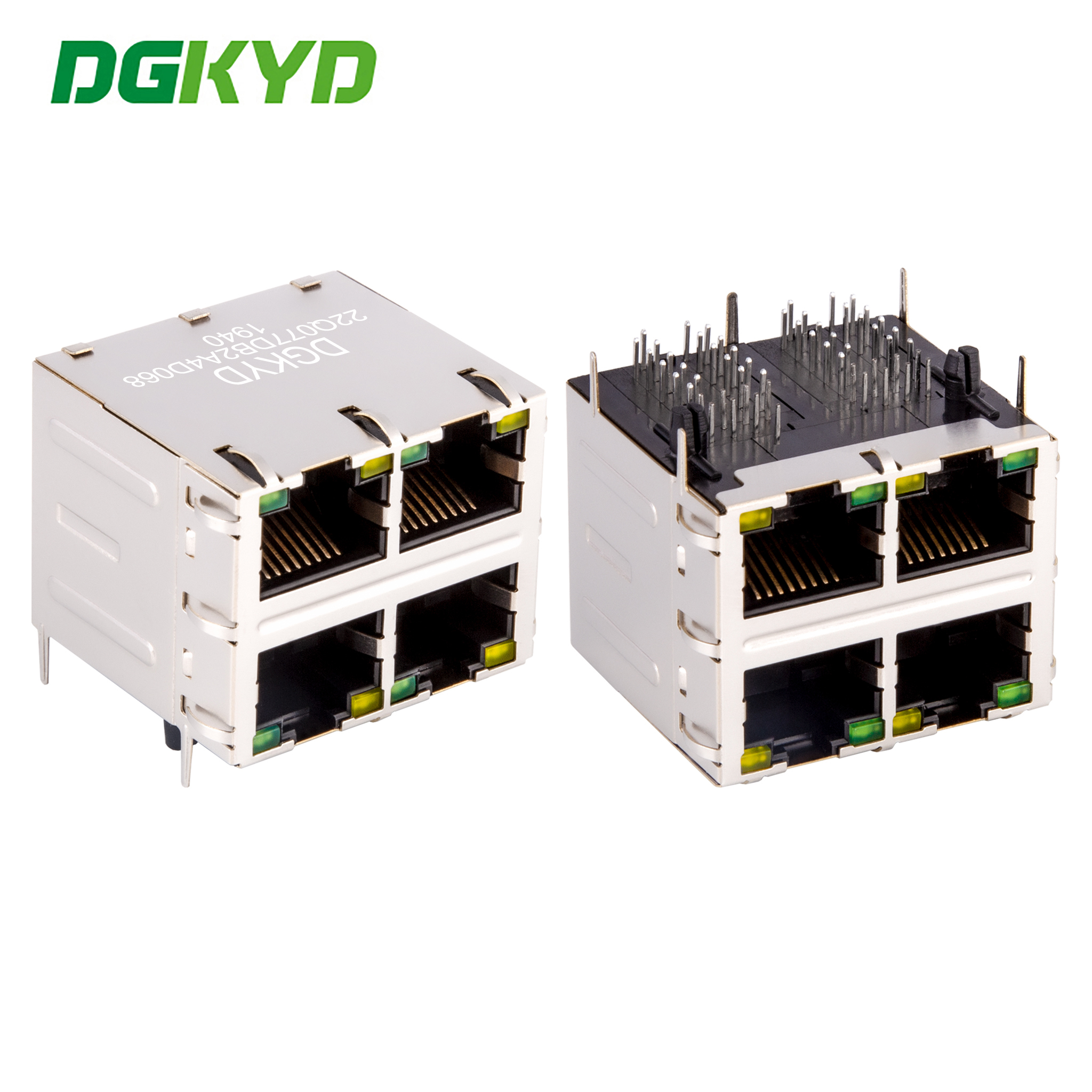

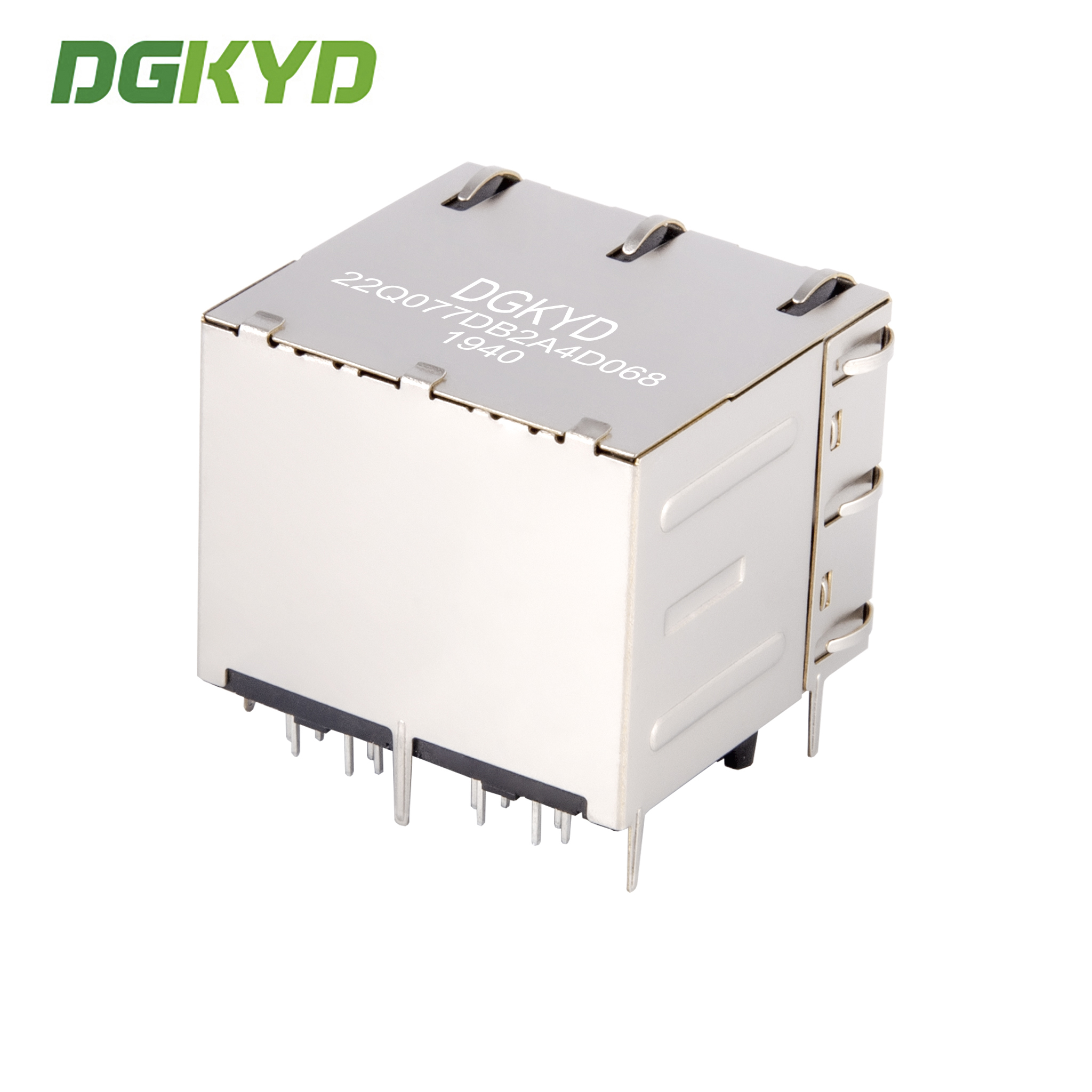

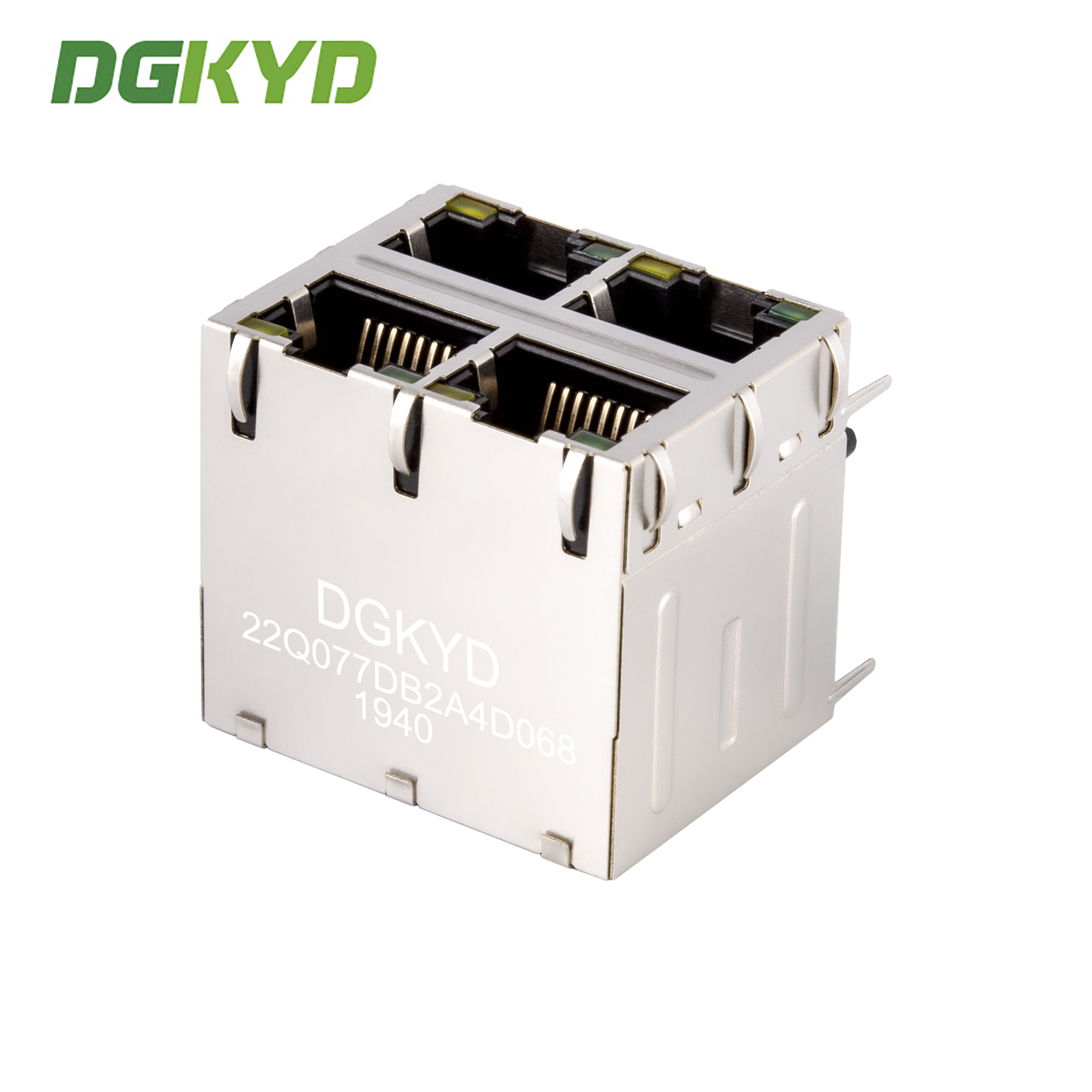

Product Images

Key Features

Interface type: RJ45 connector for 10/100/1000BASE-T Ethernet
Type: RJ45 with built-in magnetics
Working frequency: High frequency with filtering and anti-interference characteristics
Operating temperature: -40°C to +85°C
Storage temperature: -40°C to +85°C
Lead-free soldering compatible (wave soldering height up to 265°C)

Manufacturing Capabilities

RJ45 full series of integrated circuit accessories
Manufacturer direct supply
Business mode: Manufacturer
Delivery time: Approximately two weeks
Customization options available for LED indicators, shielding, coil ratios, gold plating, and housing materials
Products meet industry standards for electrical, mechanical, and environmental requirements

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer. Welcome to visit our factory.

Q: What about your lead time?

A: For products in stock, delivery within 5-7 working days after payment. For customized products, delivery time depends on order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. With 11 years of OEM experience, we can fully customize products for you.
