DGKYD211Q066GWA7CBST6057 RJ45 1000base Integrated Connector Patch Network Interface Ethernet Filtering Without Light SMD
Người liên hệ : Nicole Zhuo
Số điện thoại : +86 18925835585
WhatsApp : +8613538542087
Số lượng đặt hàng tối thiểu : | 1 miếng | Giá bán : | Please contact us to get the latest price. |
---|---|---|---|
chi tiết đóng gói : | Khay trong thùng carton | Thời gian giao hàng : | 10 NGÀY |
Điều khoản thanh toán : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Khả năng cung cấp : | 100K chiếc/ngày |
Nguồn gốc: | Đông Quan của Trung Quốc | Hàng hiệu: | DGKYD |
---|---|---|---|
Chứng nhận: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Số mô hình: | KRJ-CB4.2SMTWDNL |
Thông tin chi tiết |
|||
Ứng dụng: | PCB | Tính năng: | Cổng mạng RJ45 được che chắn |
---|---|---|---|
Giới tính: | ổ cắm nữ rj45 | Tên sản phẩm: | Giắc cắm mô-đun RJ45 |
Vật liệu nhà ở: | LCP | màu đèn LED: | Không. |
Chốt cửa: | Lên lên. | Liên hệ mạ: | Mạ Glod 6u/15u/30u/50u |
Làm nổi bật: | SMD RJ45 Network Connector,RJ45 Network Connector,SMT RJ45 Network Connector |
Mô tả sản phẩm

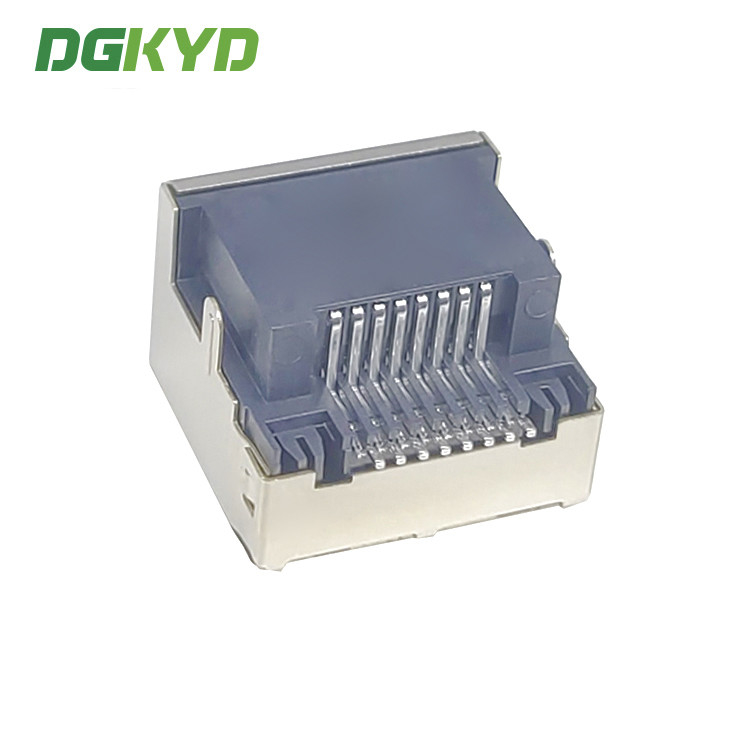

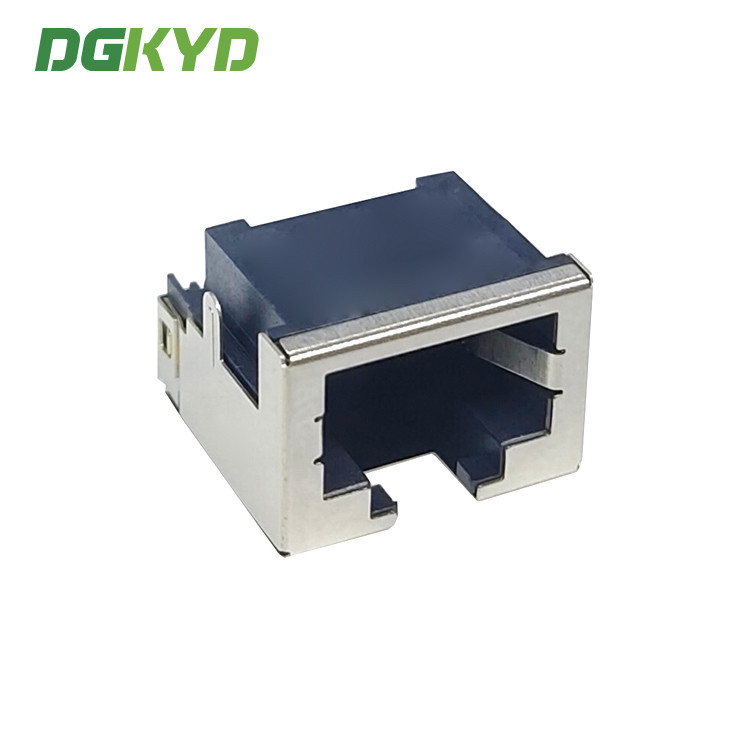

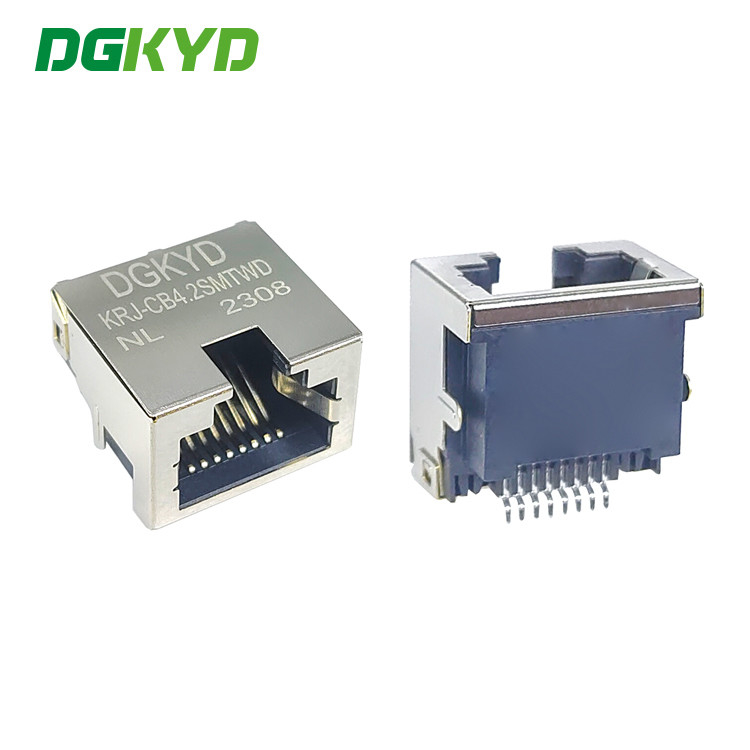

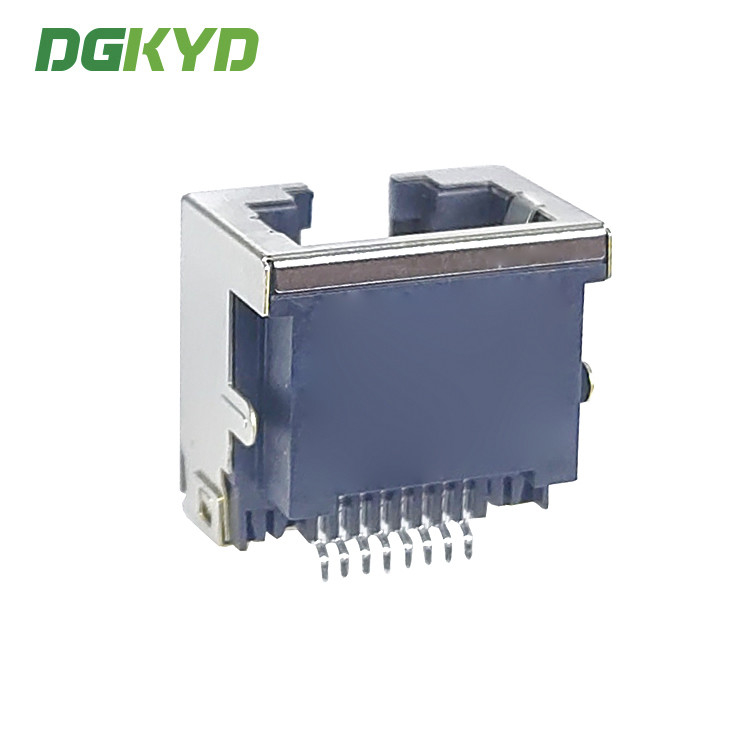

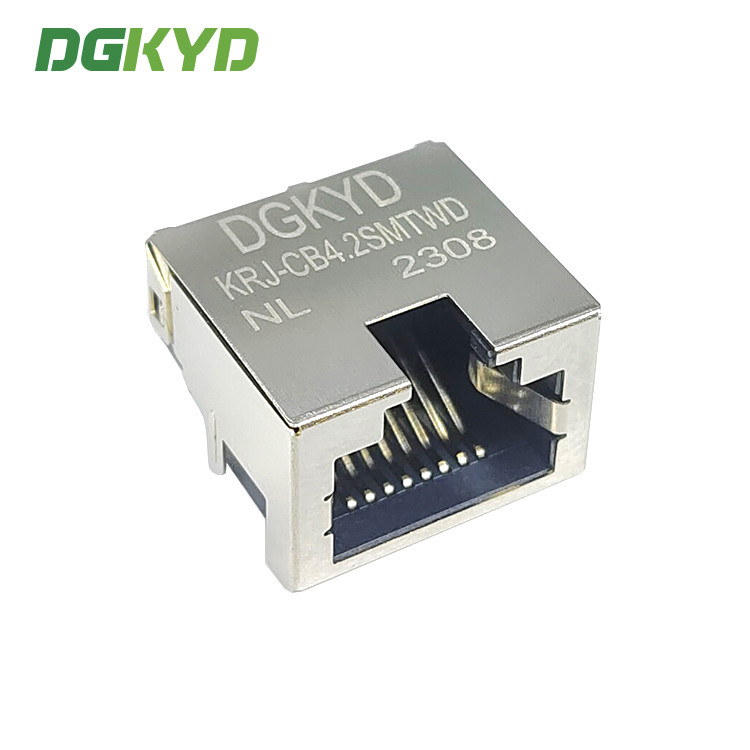

KRJ-CB4.2SMTWDNL Single-port sink 4.2 RJ45 network connector SMD interface
J45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
Parameters
Part Number | KRJ-CB4.2SMTWDNL | Brand | DGKYD/OEM/ODM |
Place of Origin | Guangdong of China | Certification | RoHS/CE/FCC/CE/ISO9001/ISO14001 |
Product Type | Connector-Modular | Connector Style | Jack |
Jack Type | RJ45 | Connector Type | Modular Jack |
Latch Style | Standard | Latch | TAB-UP |
Filter | Without Filter | LED Option | Without LED |
LED Color | No | Panel Stops | With Panel Stops |
Shielded | Yes | Applies To | Printed Circuit Board |
Performance Speed | 10/100/1000 BASE-T/TX | Suitable for welding type | Reflowsolding(Alternative). |
Port Configuration | Single Ports | Number of Positions | 8 |
Jack Configuration | 1X1 | Terminals per Port | 8 |
Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
Contact Mating Area Plating Material | Gold 6u/15u/30u/50u | Contact Base Material | Phosphor Bronze |
Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
Housing Material | LCP Polyester | Housing Color | Black |
Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Drawings
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
