Single Port Tab Up SMD RJ45 Connector Socket With LED Sink Plate 7.5 DGKYDCB751188GWE6SB3009

Số lượng đặt hàng tối thiểu : Đàm phán Giá bán : please contact us to get the latest price
chi tiết đóng gói : 3000 chiếc / thùng Thời gian giao hàng : 7-14 ngày
Điều khoản thanh toán : T/T, D/P, D/A, L/C, Western Union, MoneyGram Khả năng cung cấp : 100k chiếc / ngày
Nguồn gốc: Đông Quan của Trung Quốc Hàng hiệu: DGKYD
Chứng nhận: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Số mô hình: DGKYDCB751188Gwe6SB3009

Thông tin chi tiết

Loại sản phẩm: RJ45 phương pháp đóng gói: thiết bị gắn trên bề mặt
Phong cách gắn kết PCB: SMD Hình dạng: hình chữ nhật
Chất liệu vỏ nhựa: LCP đen Số PIN: số 8
Số lõi: số 8 Kích thước (mm): 14.3* 12.6* 7.5
Mạ vàng trên chân tiếp xúc: 3u Nhiệt độ hoạt động: - 40℃ ~ 85℃
nhiệt độ lưu trữ: - 40℃ ~ 85℃ Cái khiên: Đồng
Làm nổi bật:

Single Port RJ45 SMD Socket

,

RJ45 Connector Socket With LED

,

SMD RJ45 Connector Socket

Mô tả sản phẩm

Single port tab up SMD RJ45 connector socket with LED sink plate 7.5





Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature: 0 ℃ - 70 ℃,

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



Performance parameters:

1. Applied to Ethernet, coil ratio: 1CT: 1CT

2. Meet IEEE 802.3 & ANSI X 3.263 standard

3. Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias

4. Wave soldering process of 265 ℃ Max meeting the requirements of EU ROHS standard

5. Withstand voltage: 2250VDC 1mA max, 60s

6.Impedance: 100 ohms

7. RJ45 interface meets FCC 68.5 standard

8. DC resistance: 1.5 Ω



Parameters

Part Number DGKYDCB751188GWE6SB3009 Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-DOWN
Filter Withtou Filter LED Option Without LED
LED Color No Panel Stops Without Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  single Ports Number of Positions  8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

Drawings



Single Port Tab Up SMD RJ45 Connector Socket With LED Sink Plate 7.5 DGKYDCB751188GWE6SB3009 0







Pictures

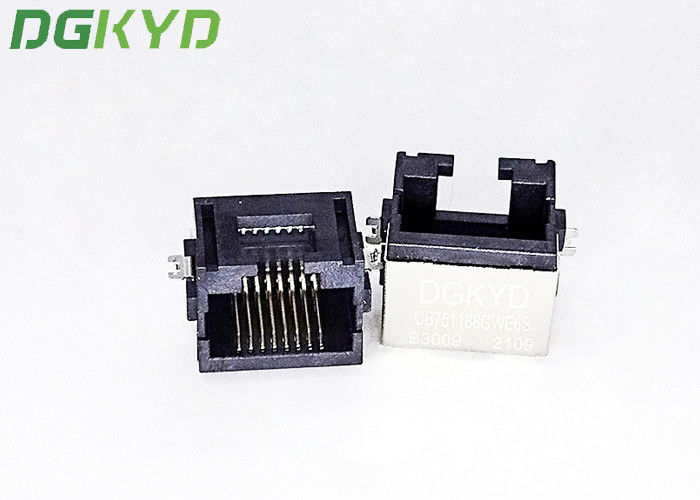

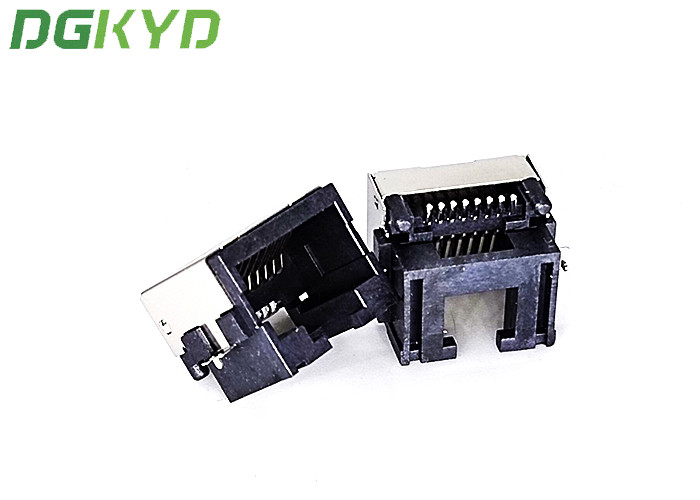

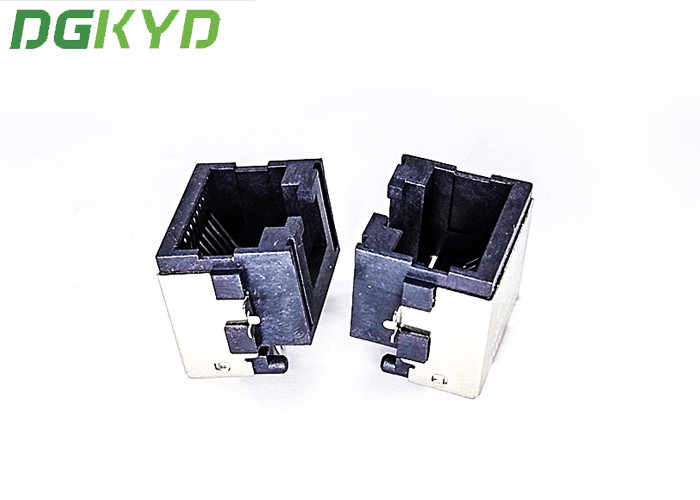

Single Port Tab Up SMD RJ45 Connector Socket With LED Sink Plate 7.5 DGKYDCB751188GWE6SB3009 1
