1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL

Số lượng đặt hàng tối thiểu : 1 miếng Giá bán : Please contact us to get the latest price.
chi tiết đóng gói : Khay trong thùng carton Thời gian giao hàng : 10 NGÀY
Điều khoản thanh toán : T/T, D/P, D/A, L/C, Western Union, MoneyGram Khả năng cung cấp : 100K chiếc/ngày
Nguồn gốc: Đông Quan của Trung Quốc Hàng hiệu: DGKYD
Chứng nhận: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Số mô hình: KRJ-CB329YGZENL

Thông tin chi tiết

Tên sản phẩm: Đầu nối RJ45 cấu hình thấp hơn SMD Thể loại hiệu suất: Cát6
Cảng: Các cổng đơn Tính năng: Cổng mạng RJ45
dẫn: Vàng/Xanh lục phong cách gắn kết: SMT
Cái khiên: mạ đồng niken phốt pho OEM/ODM: Vâng
Số Vị trí/Liên hệ: 8P10C (RJ45, Ethernet) Mạ vàng trên chân tiếp xúc: 6u
nhiệt độ lưu trữ: -40°C~+85°C Nhiệt độ hoạt động: -40°C~+85°C

Mô tả sản phẩm

Drawing

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL



Product Specification Document
KRJ-CB329YGZENL.pdf





Paramters



Part Number KRJ-CB329YGZENL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option With LED
LED Color Yellow/Green Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  SIngle Ports Number of Positions  10
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  LCP Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

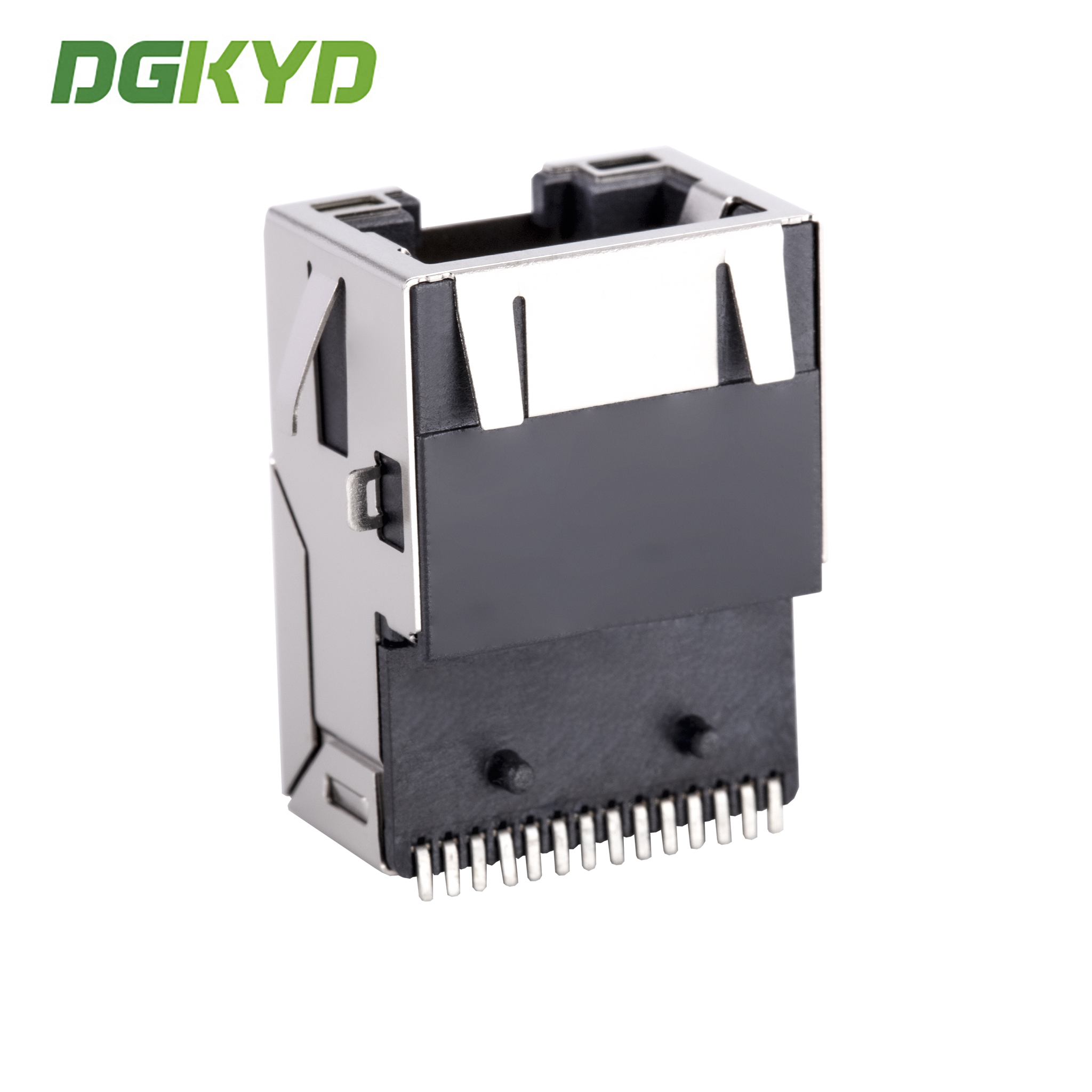

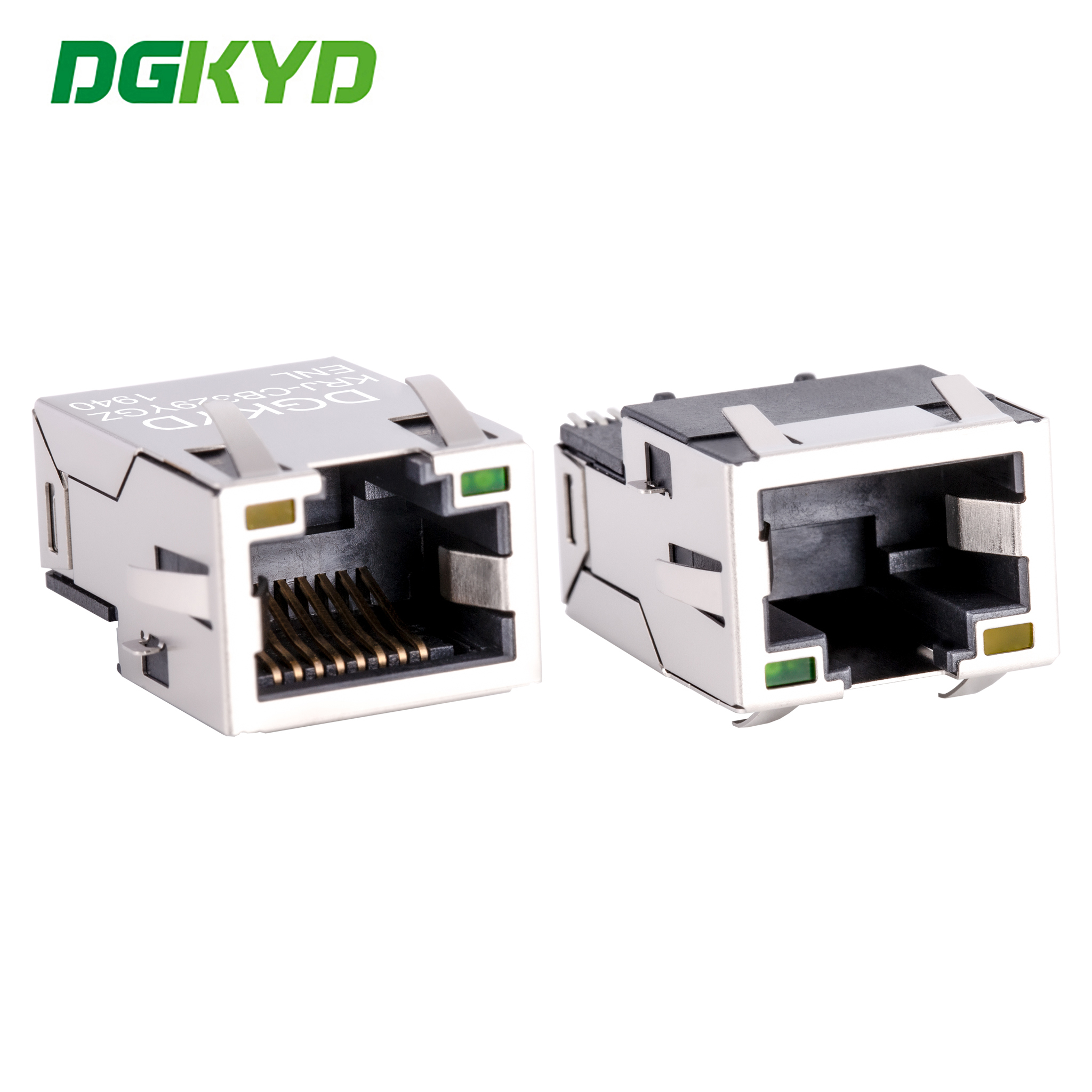

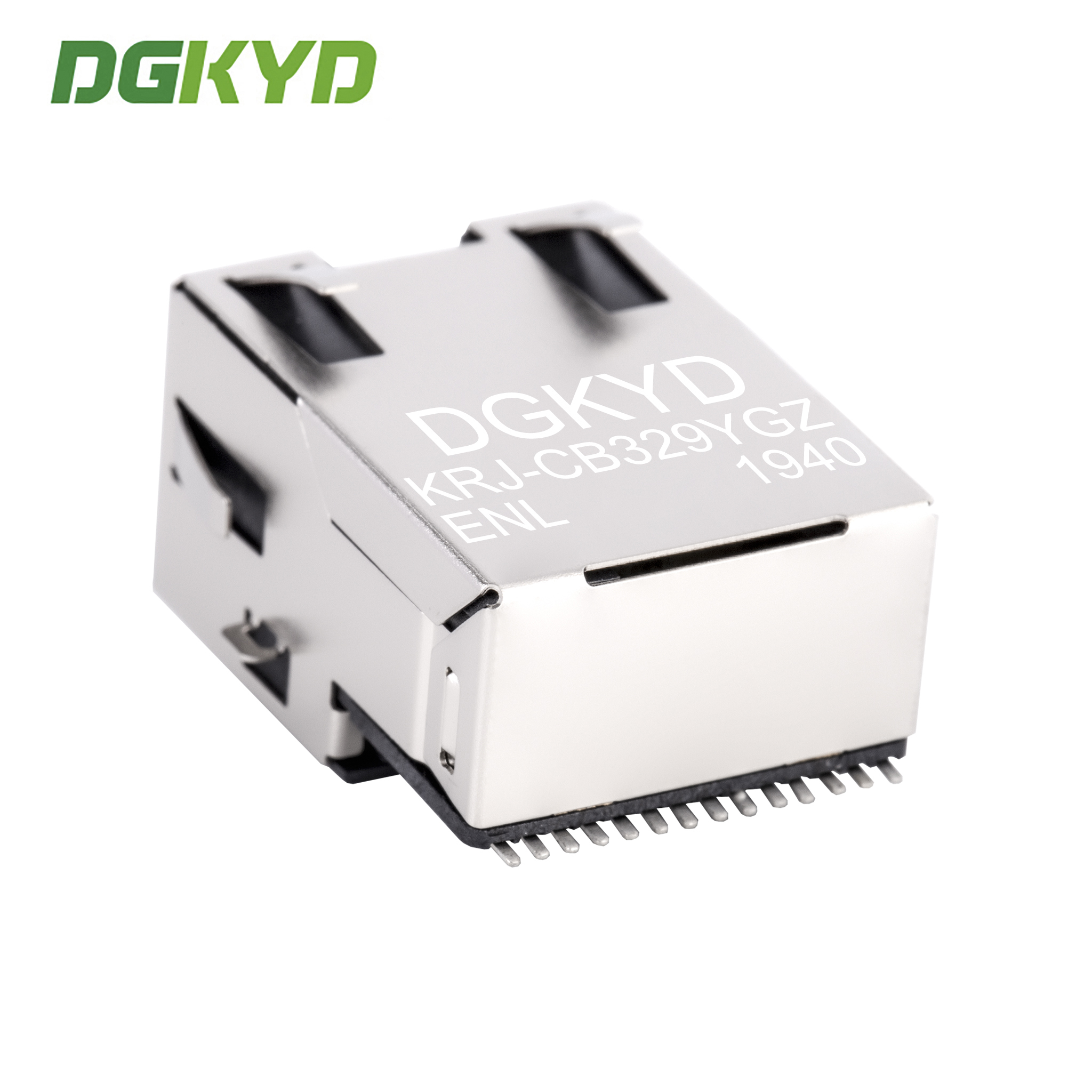

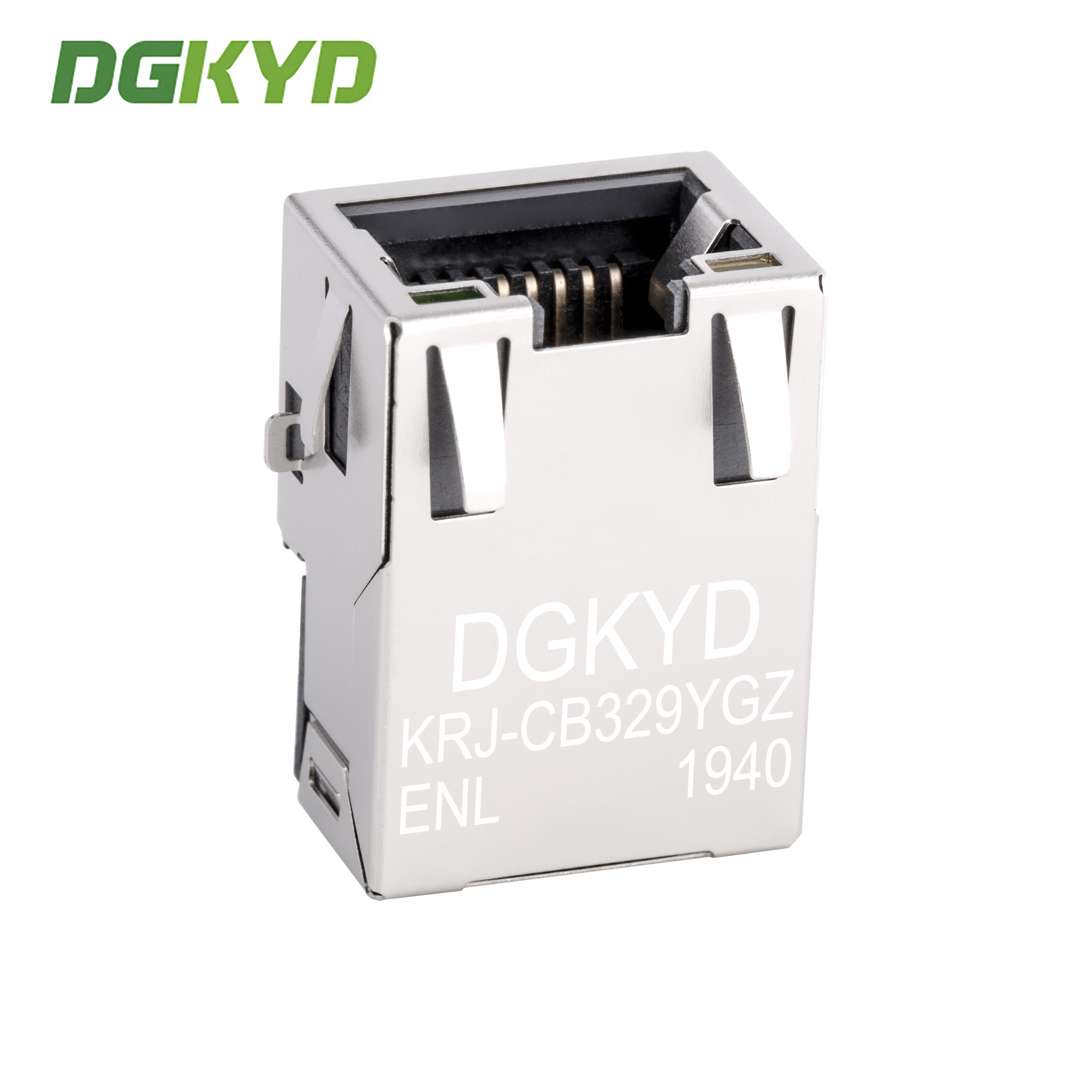

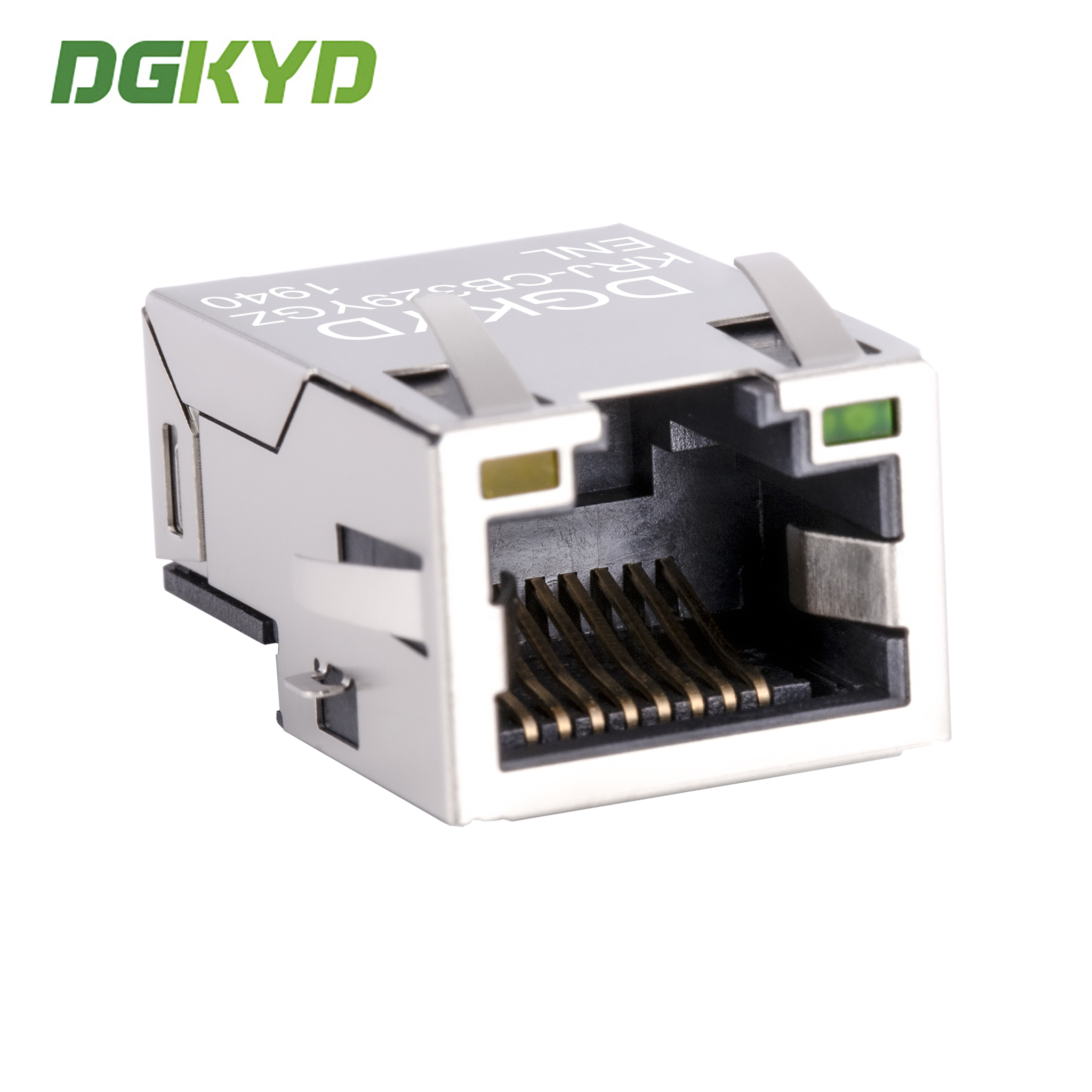

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 01 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 1



1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 2

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 3

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 4

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 5

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 6

1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 7





1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 8



1 Port Tab Up Gold Plate RJ45 Ethernet Connector SMD Cat6 Cable Rj45 Extra Low Frofile KRJ-CB329YGZENL 9

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature:- 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.



2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.



3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.



4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
