2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL

Số lượng đặt hàng tối thiểu : 1 miếng Giá bán : Please contact us to get the latest price.
chi tiết đóng gói : Khay trong thùng carton Thời gian giao hàng : 10 NGÀY
Điều khoản thanh toán : T/T, D/P, D/A, L/C, Western Union, MoneyGram Khả năng cung cấp : 100K chiếc/ngày
Nguồn gốc: Đông Quan của Trung Quốc Hàng hiệu: DGKYD
Chứng nhận: RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 Số mô hình: KRJ-USB03YGZNL

Thông tin chi tiết

từ tính: không có từ tính che chắn: kim loại che chắn
Kiểu kết nối: giắc cắm mô-đun Màu nhà ở: Màu đen
RoHS: Vâng Hiệu suất: con mèo 5
Giới tính: RJ45+ổ cắm USB OEM/ODM: Vâng
Cái khiên: mạ đồng niken phốt pho Mạ vàng trên chân tiếp xúc: G/Phúc
Nhiệt độ hoạt động: -40°C~+85°C nhiệt độ lưu trữ: -40°C~+85°C
Làm nổi bật:

RJ45 USB Connector Combo Jack

,

2x1 Stack USB 3.0 RJ45 Connector

,

1-1909119-4 RJ45 Connector

Mô tả sản phẩm

Drawing

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL


Product Specification Document
KRJ-USB03YGZNL.pdf



Paramters



Part Number KRJ-USB03YGZNL Brand DGKYD/OEM/ODM
Product Type  Connector-Modular Connector Style Jack
Jack Type RJ45+USB Connector Type  Modular Jack
Latch Style Standard Latch TAB-UP
Filter Without Filter LED Option With LED
LED Color Yellow/Green Panel Stops With Panel Stops
Shielded With metal shield Applies To  Printedout Circuit Board
Port Configuration  Double Ports Number of Positions  8
Jack Configuration 1X2 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation  Side Entry (Right Angle)
Contact Mating Area Plating Gold G/Fu Contact Base Material  Phosphor Bronze
Solder Tail Contact Plating Material  Tin-Lead over Nickel PCB Mounting Style  Through Hole
Termination Method to PC Board  Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material  PBT Polyester Housing Color Black
Housing Material  Temperature Standard UL Flammability Rating  UL 94V-0

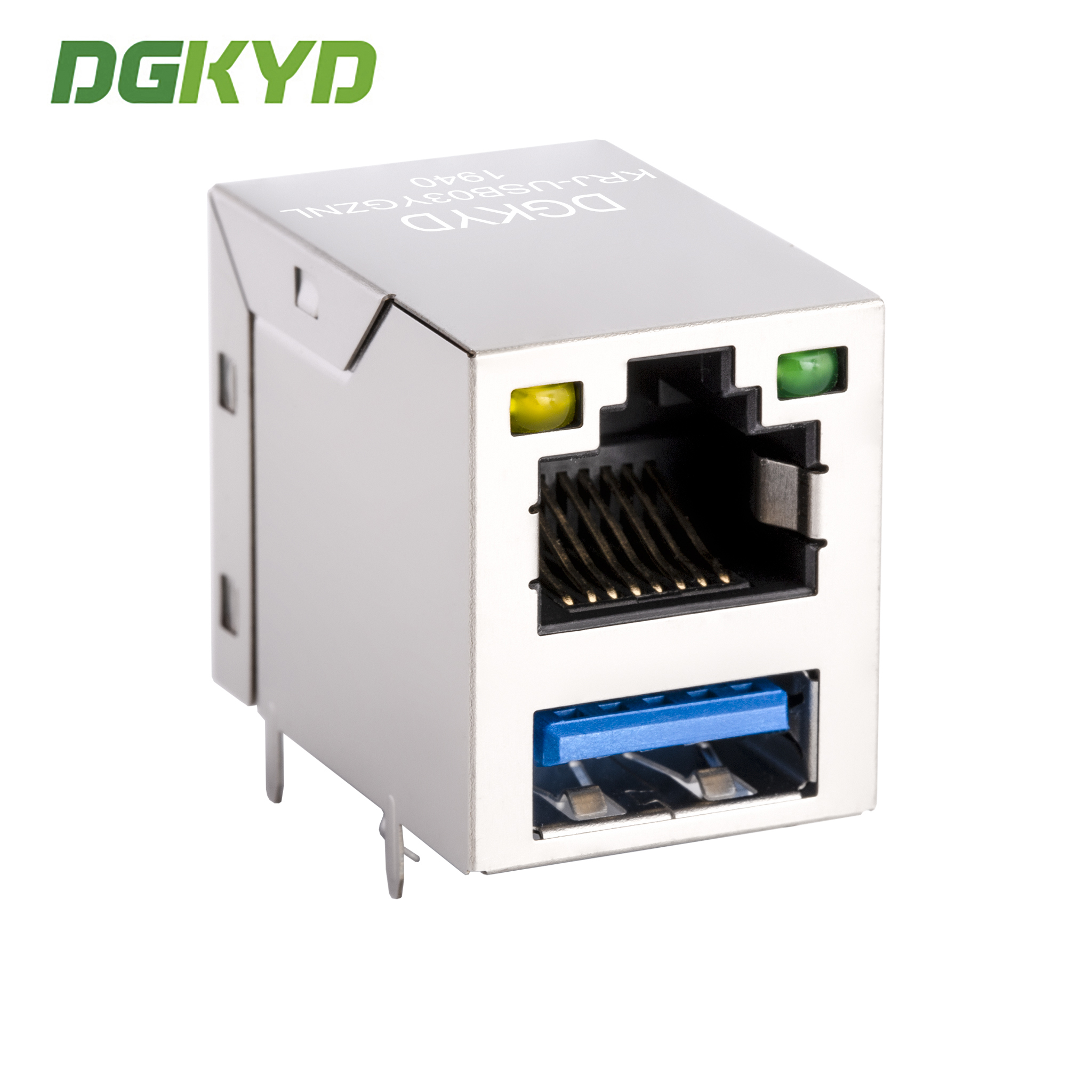

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 0

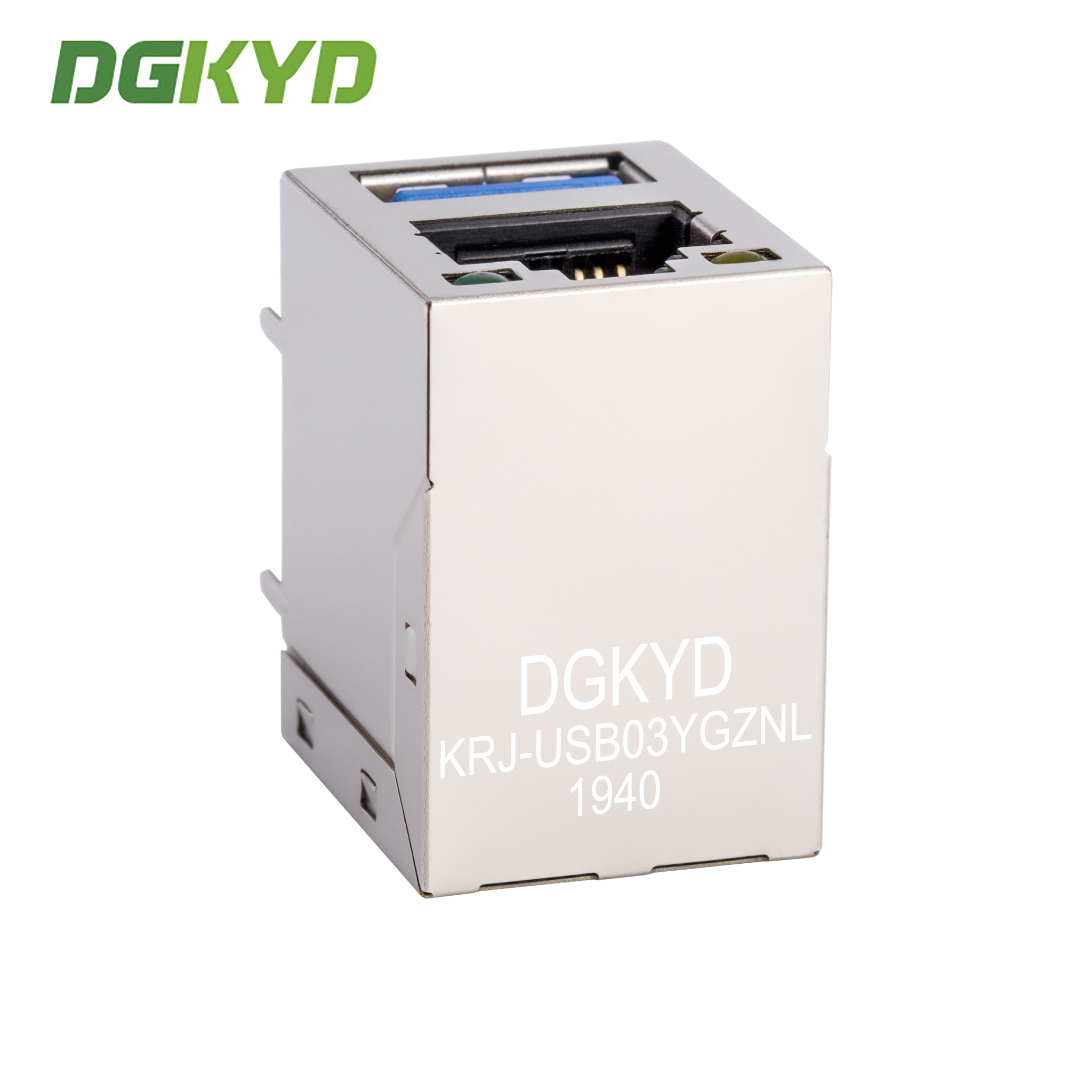

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 1

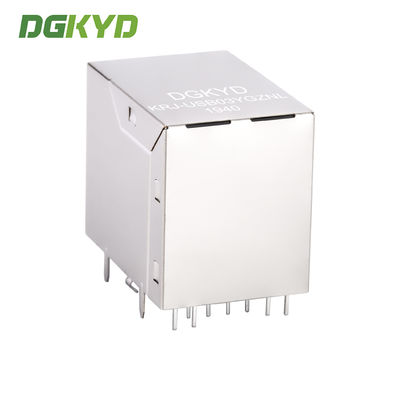

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 2

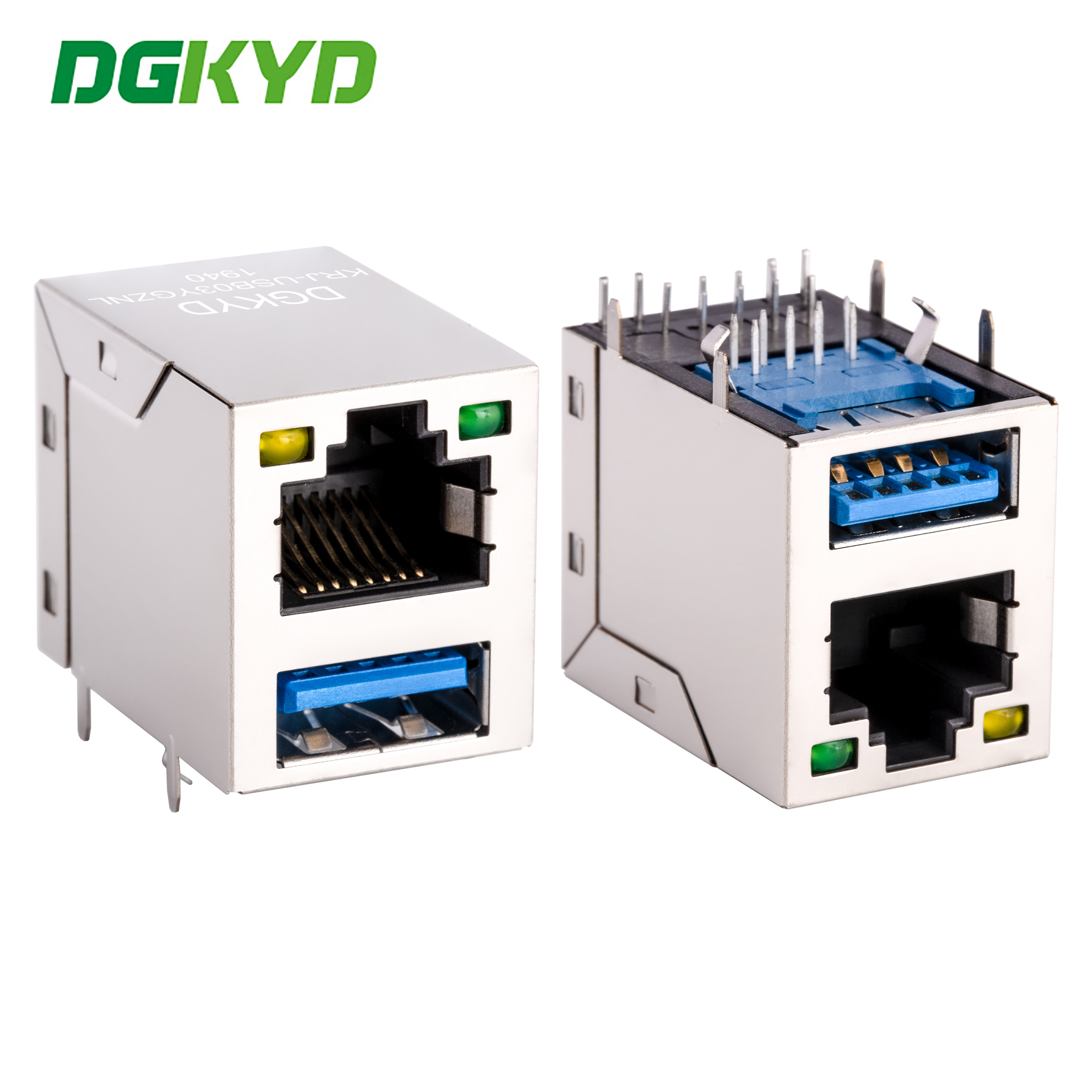

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 3

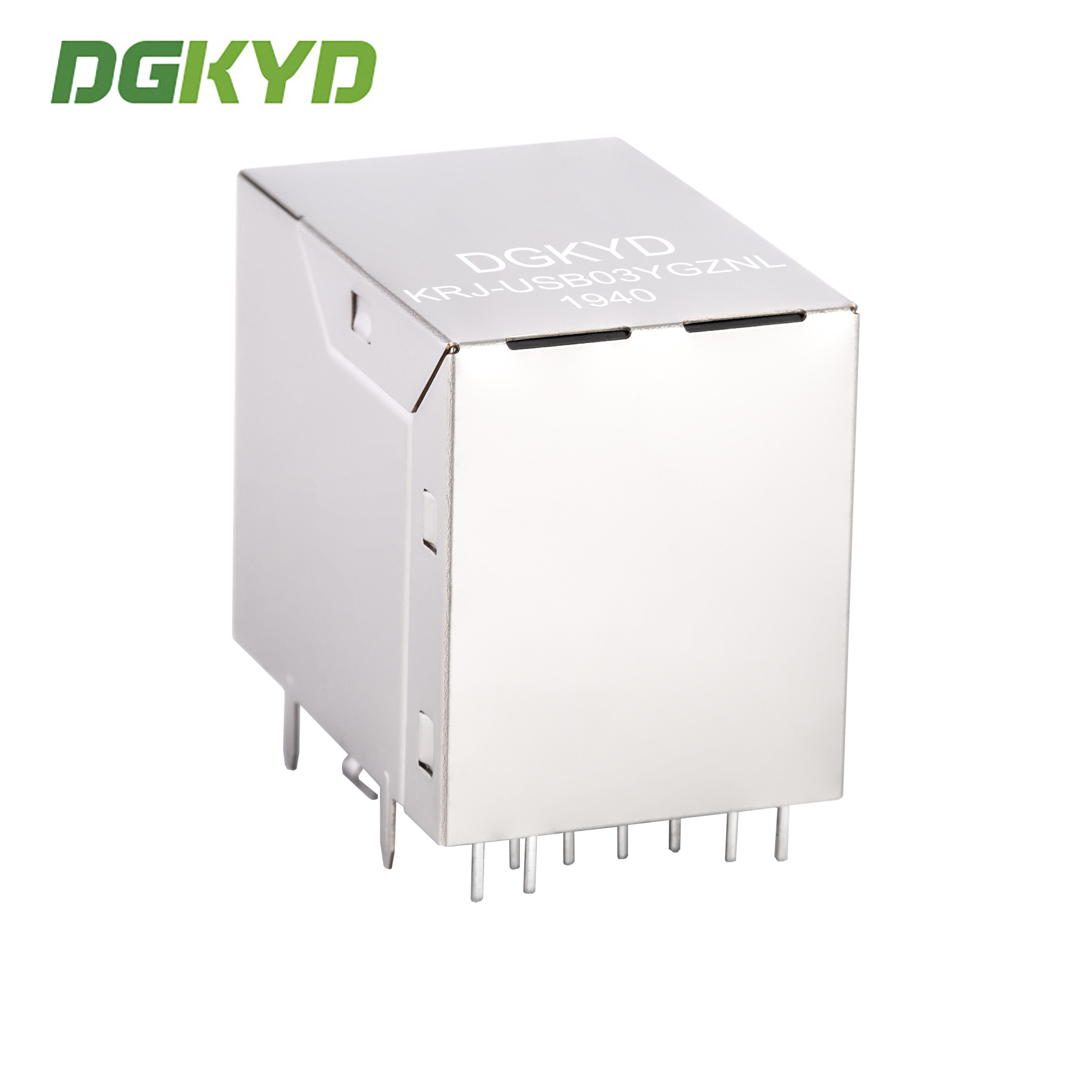

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 4

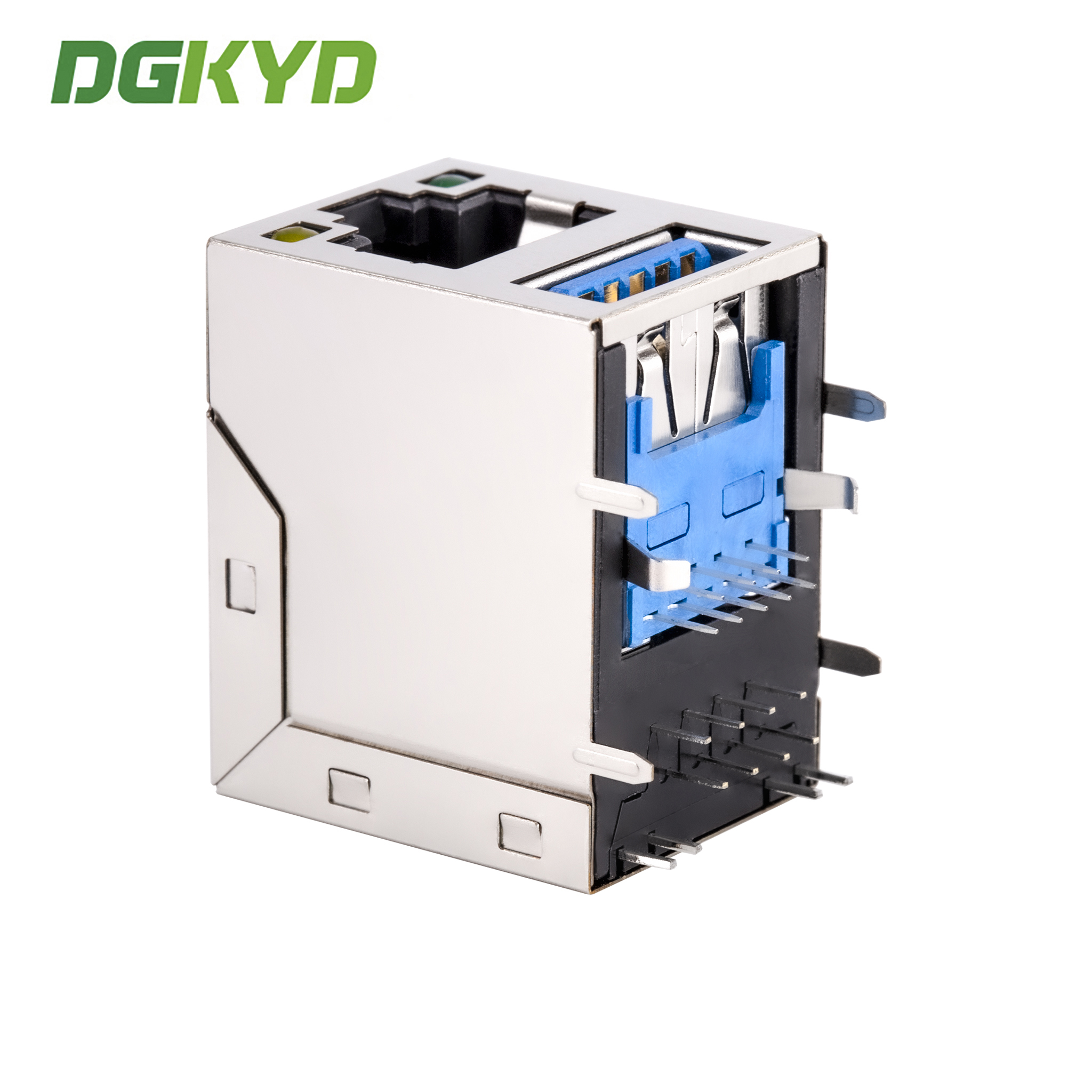

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 5

2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 6





2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 7



2x1 Stack RJ45 USB Connector Combo Jack W / USB 3.0 1-1909119-4 RoHS Compliance KRJ-USB03YGZNL 8

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature:- 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃



RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!



FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.



2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.



3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.



4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
