Gigabit Ethernet Mô-đun Jack 2 cổng Đầu nối RJ45 2x1 Offset St / Jk có đèn Led
Người liên hệ : Nicole Zhuo
Số điện thoại : +86 18925835585
WhatsApp : +8613538542087
Số lượng đặt hàng tối thiểu : | 1 miếng | Giá bán : | Please contact us to get the latest price. |
---|---|---|---|
chi tiết đóng gói : | Khay trong thùng carton | Thời gian giao hàng : | 10 NGÀY |
Điều khoản thanh toán : | T/T, D/P, D/A, L/C, Western Union, MoneyGram | Khả năng cung cấp : | 100K chiếc/ngày |
Nguồn gốc: | Đông Quan của Trung Quốc | Hàng hiệu: | DGKYD |
---|---|---|---|
Chứng nhận: | RoHS/CE/UL/FCC/CE/ISO9001/ISO14001 | Số mô hình: | KRJ-215Gyznl |
Thông tin chi tiết |
|||
Tính năng: | Hiệu suất cao với nam châm và đèn LED | RJ45 phù hợp: | cho Cáp Ethernet CAT5 & 6 hoặc UTP |
---|---|---|---|
Ứng dụng: | lan, cầu, PC, bộ định tuyến, mạng trung tâm usb rj45 và tất cả các thiết bị ethernet | Tên sản phẩm: | Cổng Ethernet RJ45 |
Số PIN: | số 8 | Số lõi: | số 8 |
Mạ vàng trên chân tiếp xúc: | 6u | Nhiệt độ hoạt động: | -40°C~+85°C |
máy biến áp: | với máy biến áp | Vật liệu nhà ở: | PBT ĐEN |
Làm nổi bật: | Metal Shielded Rj45 Network Connectors,KRJ-215GYZNL,Dual Port Rj45 Network Connectors |
Mô tả sản phẩm
Drawing

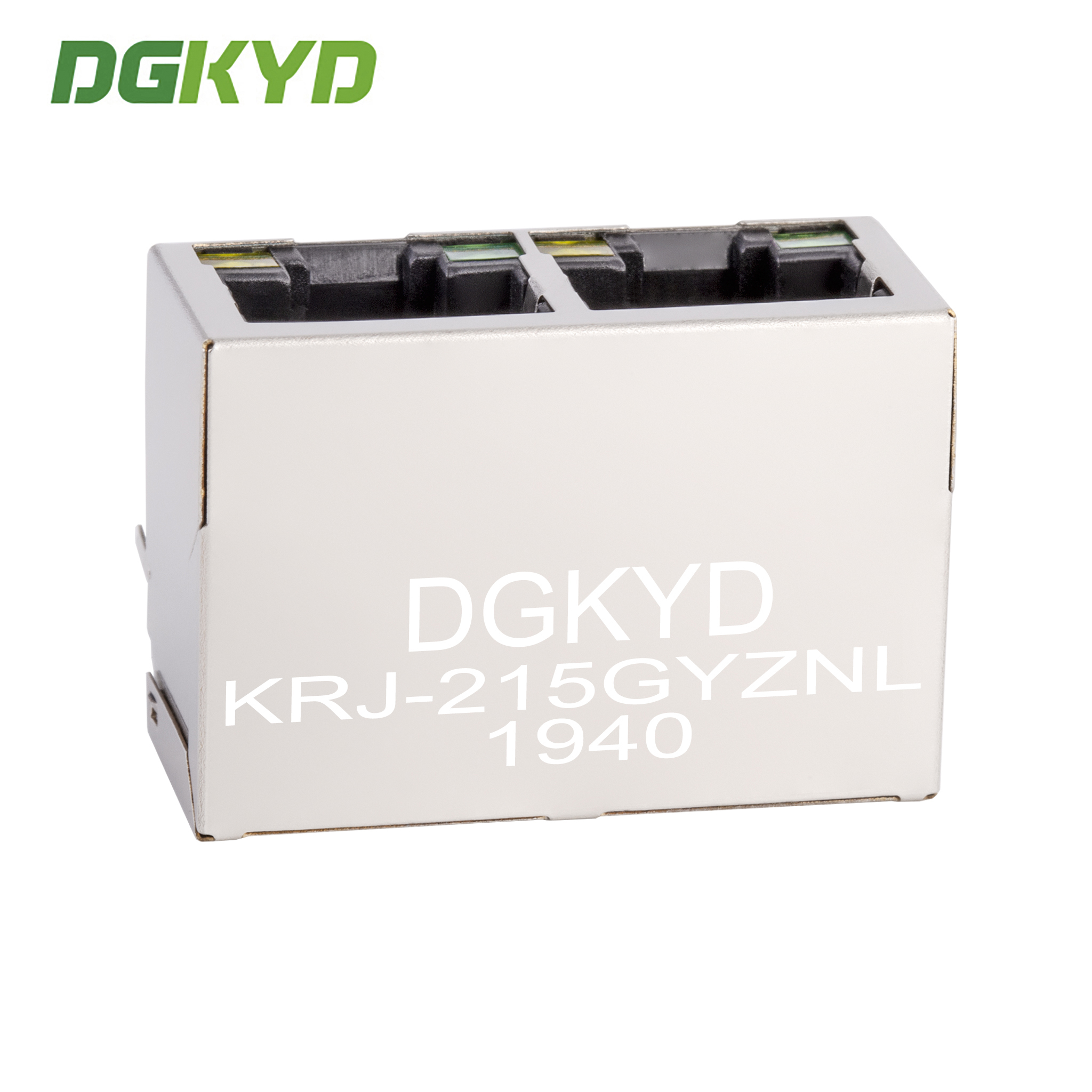

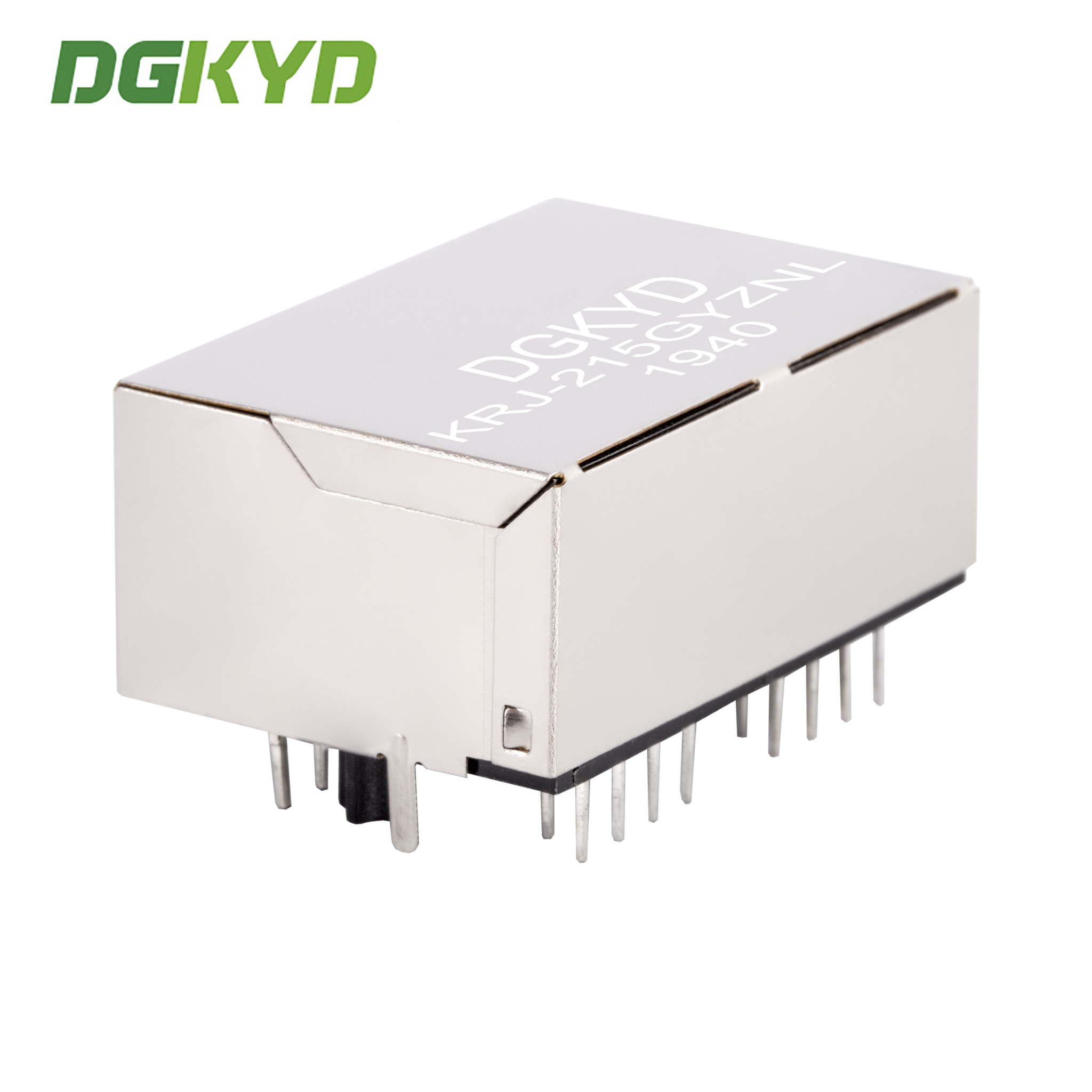

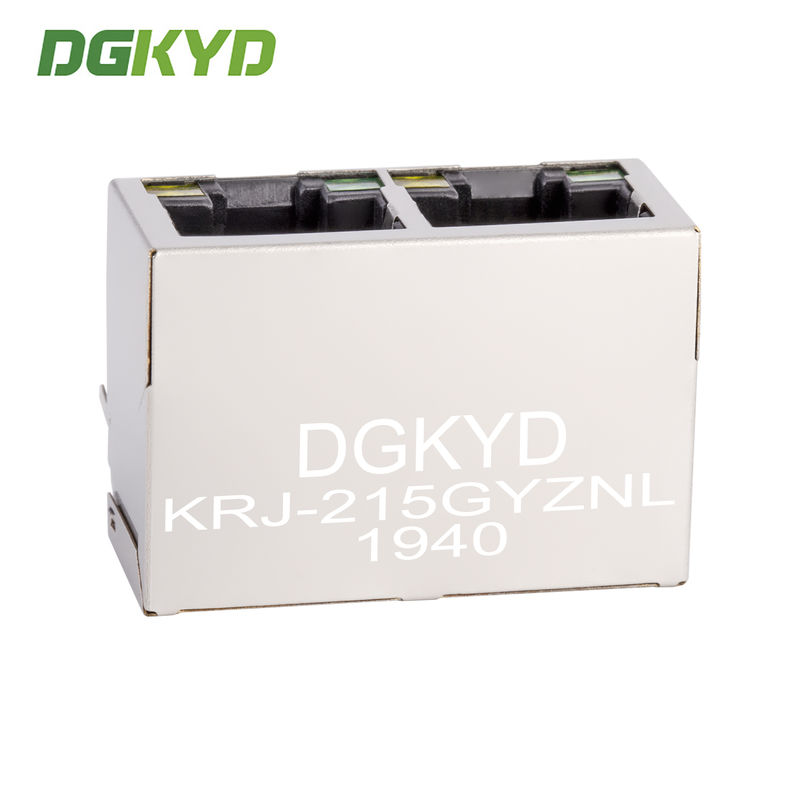

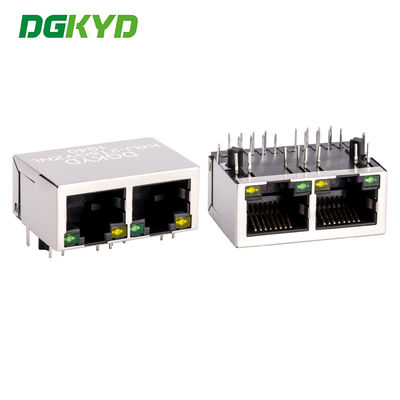

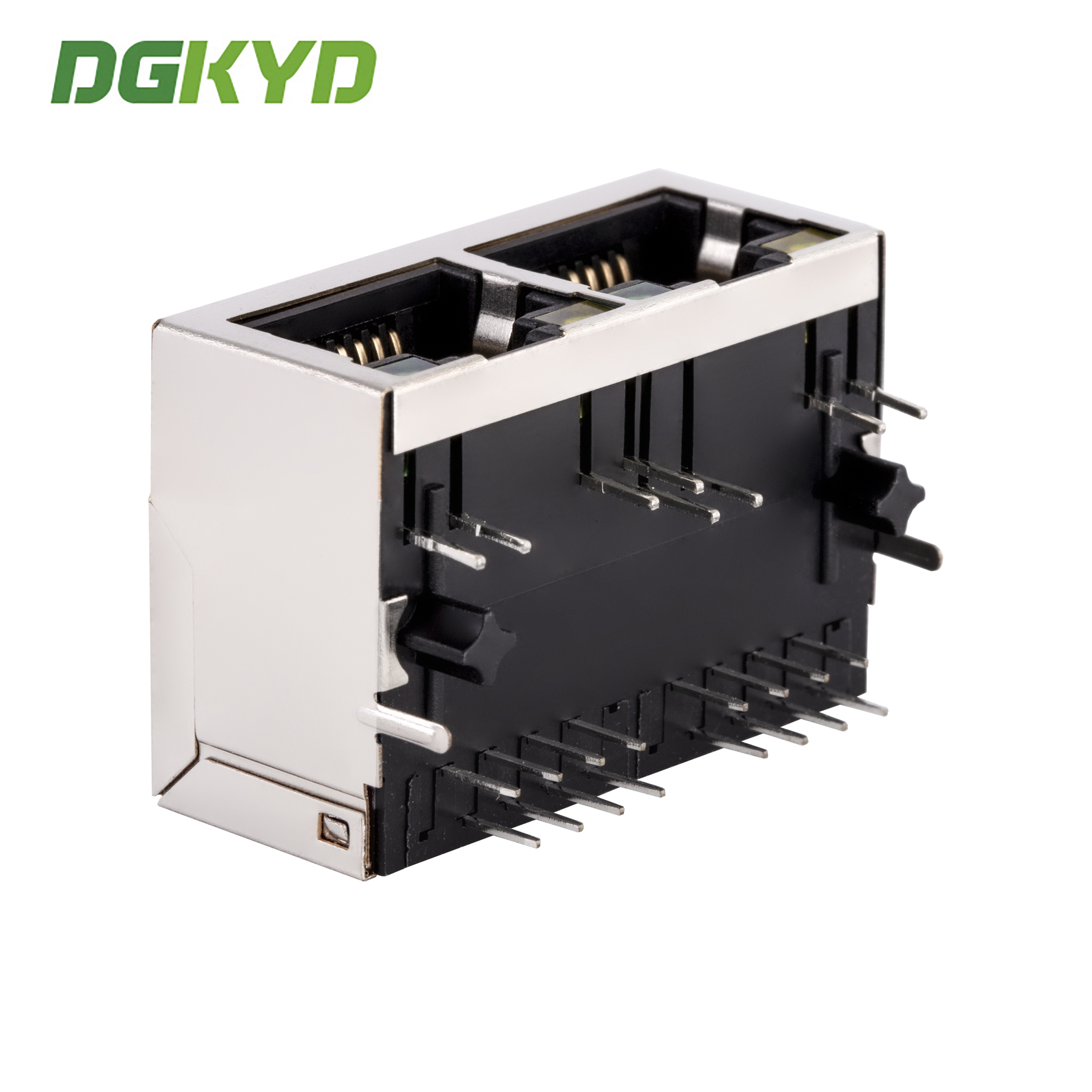

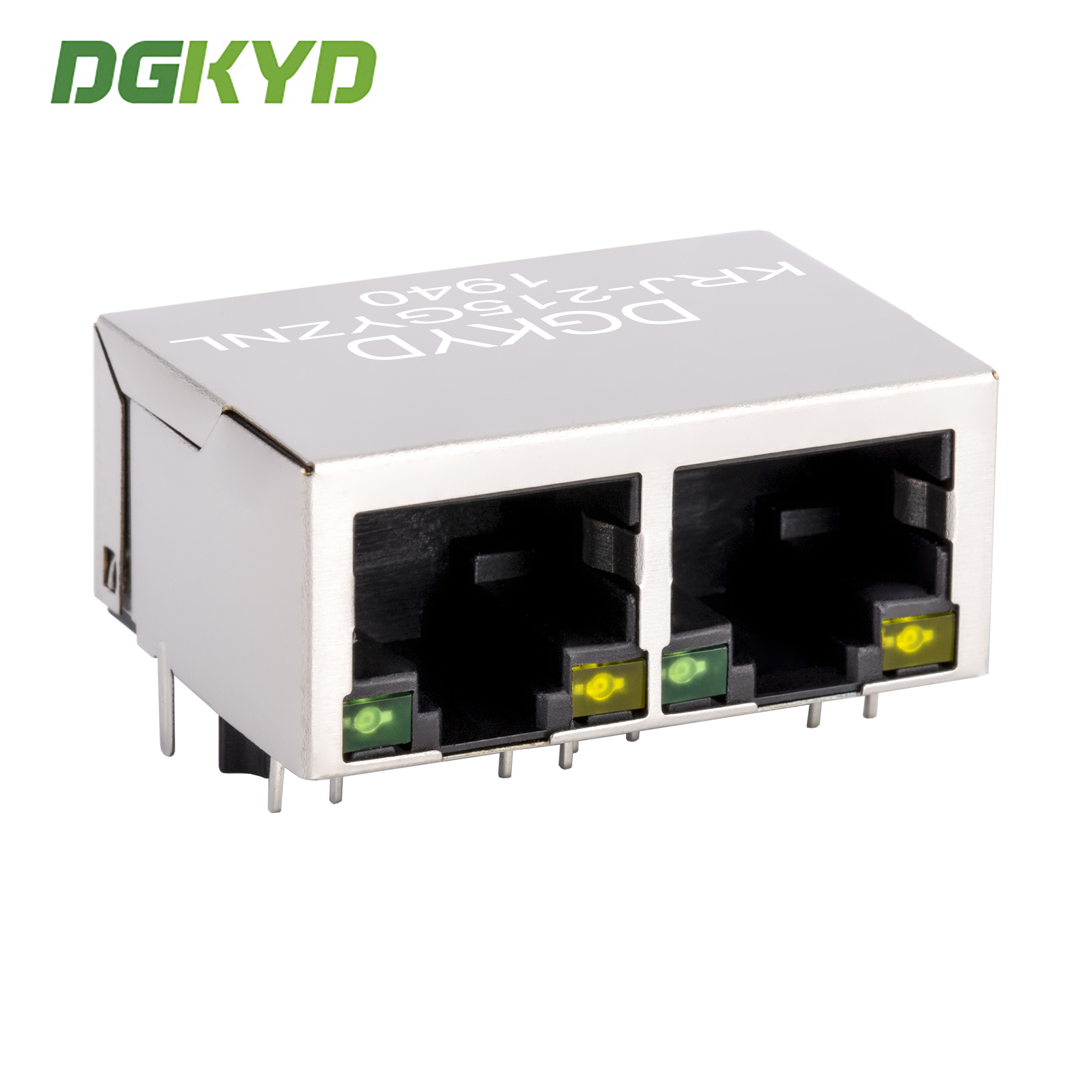

Network Connectors Rj45 Metal Shielded CAT 5 Dual Port Rj45 Ethernet Port G/Y Led KRJ-215GYZNL
Product Specification Document
KRJ-215GYZNL.pdf
Paramters
Part Number | KRJ-215GYZNL | Brand | DGKYD/OEM/ODM |
Product Type | Connector-Modular | Connector Style | Jack |
Jack Type | RJ45 | Connector Type | Modular Jack |
Latch Style | Standard | Latch | TAB-DOWN |
Filter | With Filter | LED Option | With LED |
LED Color | Green/Yellow | Panel Stops | With Panel Stops |
Shielded | With metal shield | Applies To | Printedout Circuit Board |
Port Configuration | 1X2 Ports | Number of Positions | 8 |
Jack Configuration | 1X2 | Terminals per Port | 8 |
Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
Housing Material | PBT Polyester | Housing Color | Black |
Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0 |
Our strengths:
Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature:- 40 ℃ - 85 ℃
Storage temperature: - 40 ℃ - 85 ℃
Lead free soldering: wave soldering height up to 265 ℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply
1. Business mode: Manufacturer
2. Delivery time: on time delivery, around two weeks.
3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
coil ratio of magnetic core
magnetics circuit diversification optional
contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
plastic housing material (PBT,PA46,PA9T, LCP)
4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
FAQ:
1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.
2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.
3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.
4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
